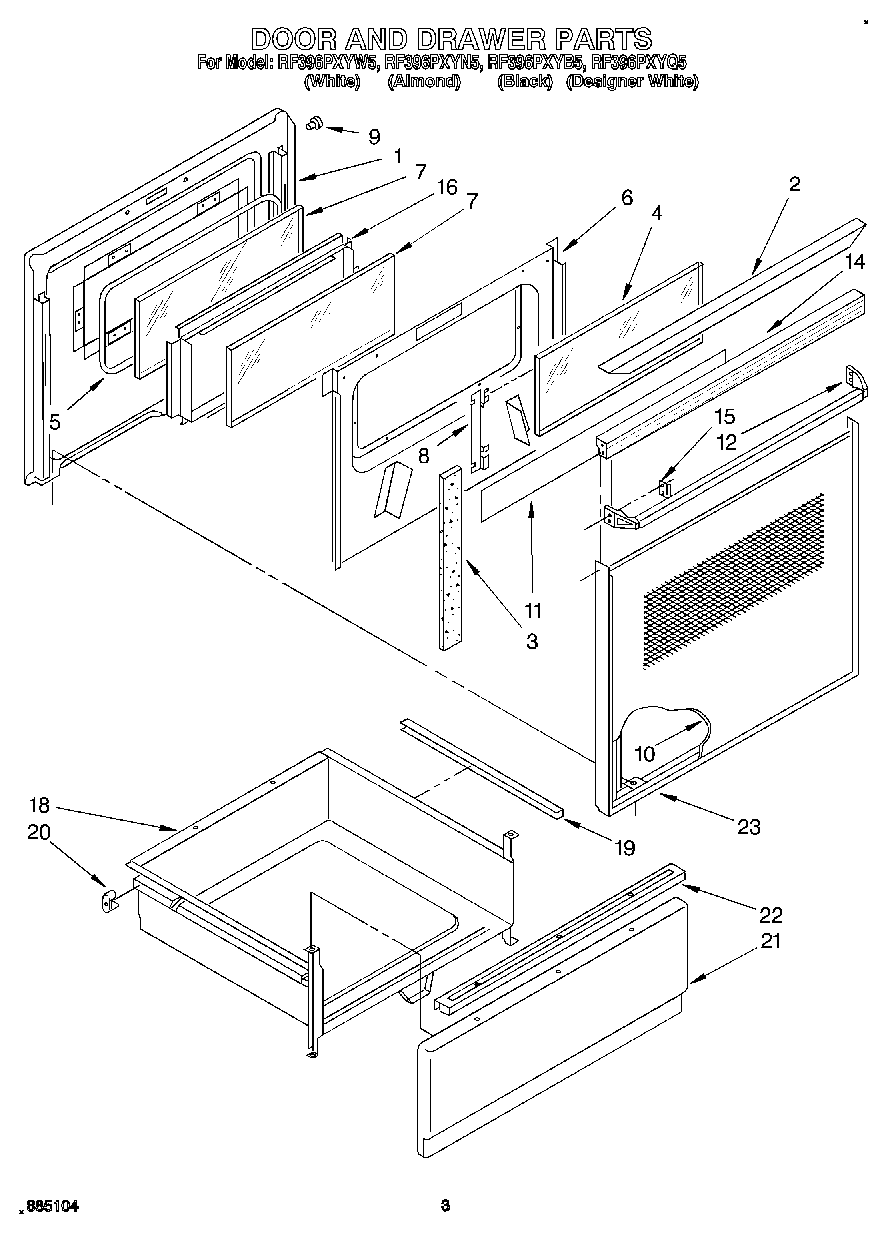

RF396PXYN5 03 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	Cap, Top
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (White)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Door (White)
12	WP355515 Whirlpool Screw
12	Handle, Oven Door
14	Top, Door (White Model)
14	Top, Door (Black Model)
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
18	Drawer, Utility
19	Protector, Drawer (2)
20	Glide, Rear (2)
21	Panel, Drawer (Almond)
21	Panel Drawer (White)
21	Panel Drawer (Black)
22	Handle, Drawer
22	WP488627 Whirlpool Refrigerator Screw
23	WP308685 Whirlpool Microwave Screw
23	Insulation, Door
23	Screw, 10A x 1/2 (2) (Black)
23	Frame, Door
