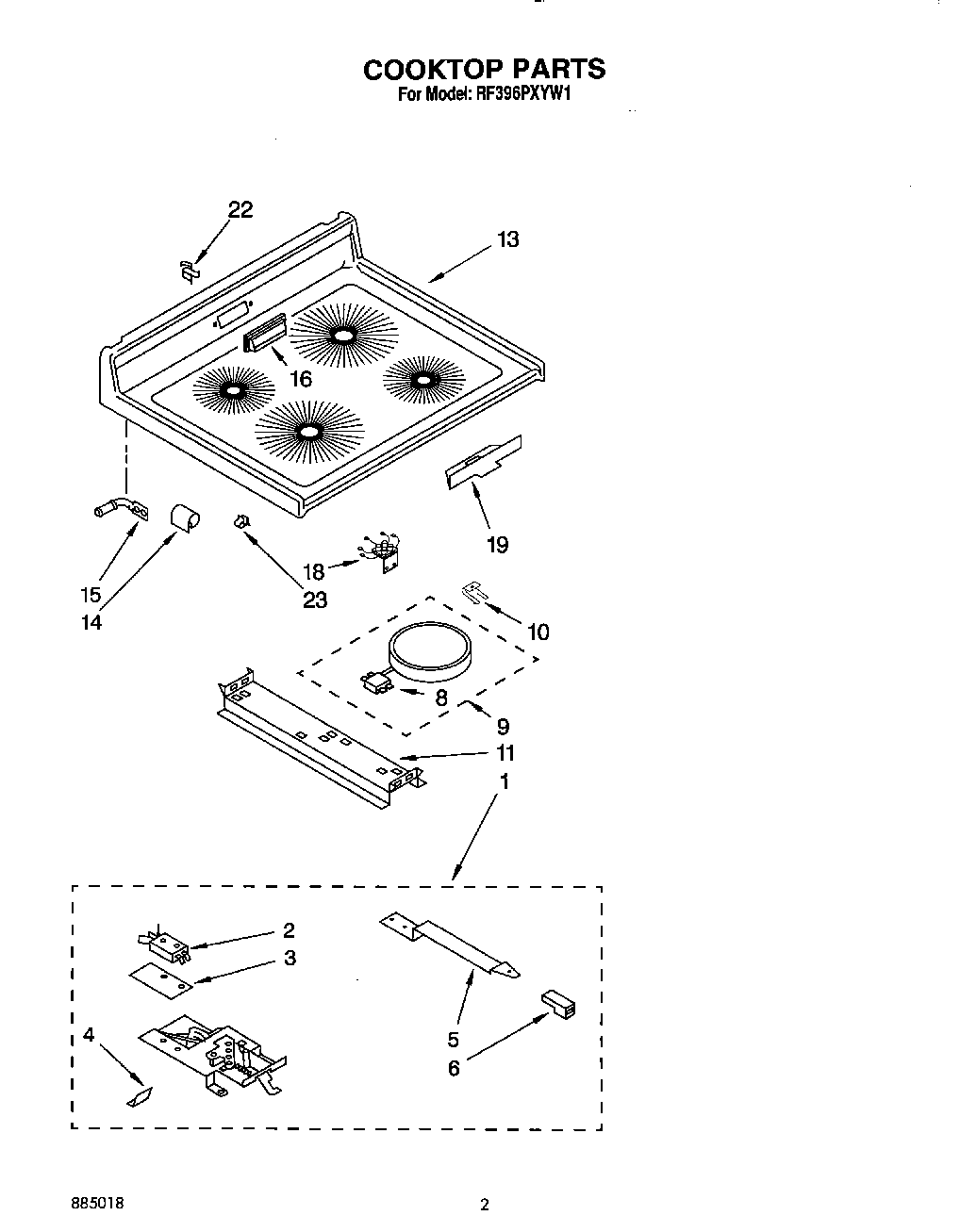

RF396PXYQ1 02 – COOKTOP

Products

Position	Product
1	Latch Asm Complete W/Wire Harness (Designer White)
1	Latch Asm Complete W/Wire Harness (White/Almond)
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Shield, Latch
4	Screw
5	Screw
5	Handle, Latch
5	Handle, Latch
6	Knob, Latch
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
8	Limiter, Temperature (Use W/3183649 Element)
8	Limiter, Temp. (6“ L.R.)
8	Limiter, Temperature (Use W/3183648 Element)
8	Limiter Temp. (7“ – RF)
9	Element, Surface (2100W Right Rear)
9	Element, Surface (1700W Right Front)
9	WP8185663 Whirlpool Surface Element
9	Element, Surface (1400W Left Rear)
10	WP486754 Whirlpool Compactor Screw
10	Spring, Locator
11	Bracket, (2) Element Support
13	Cooktop (White)
13	Cooktop (Black)
13	Cooktop (Designer White)
13	Cooktop (Almond)
14	Bracket, Cooktop (2)
15	SCREW
15	Pin, Cooktop (2)
16	Cover, Vent (Black)
16	cover, vent (almond)
16	Cover, Vent (White)
18	Hot Light Assembly
18	Screw (2)
19	Shield, Probe
22	Clip, Vent Cover
23	Clip
