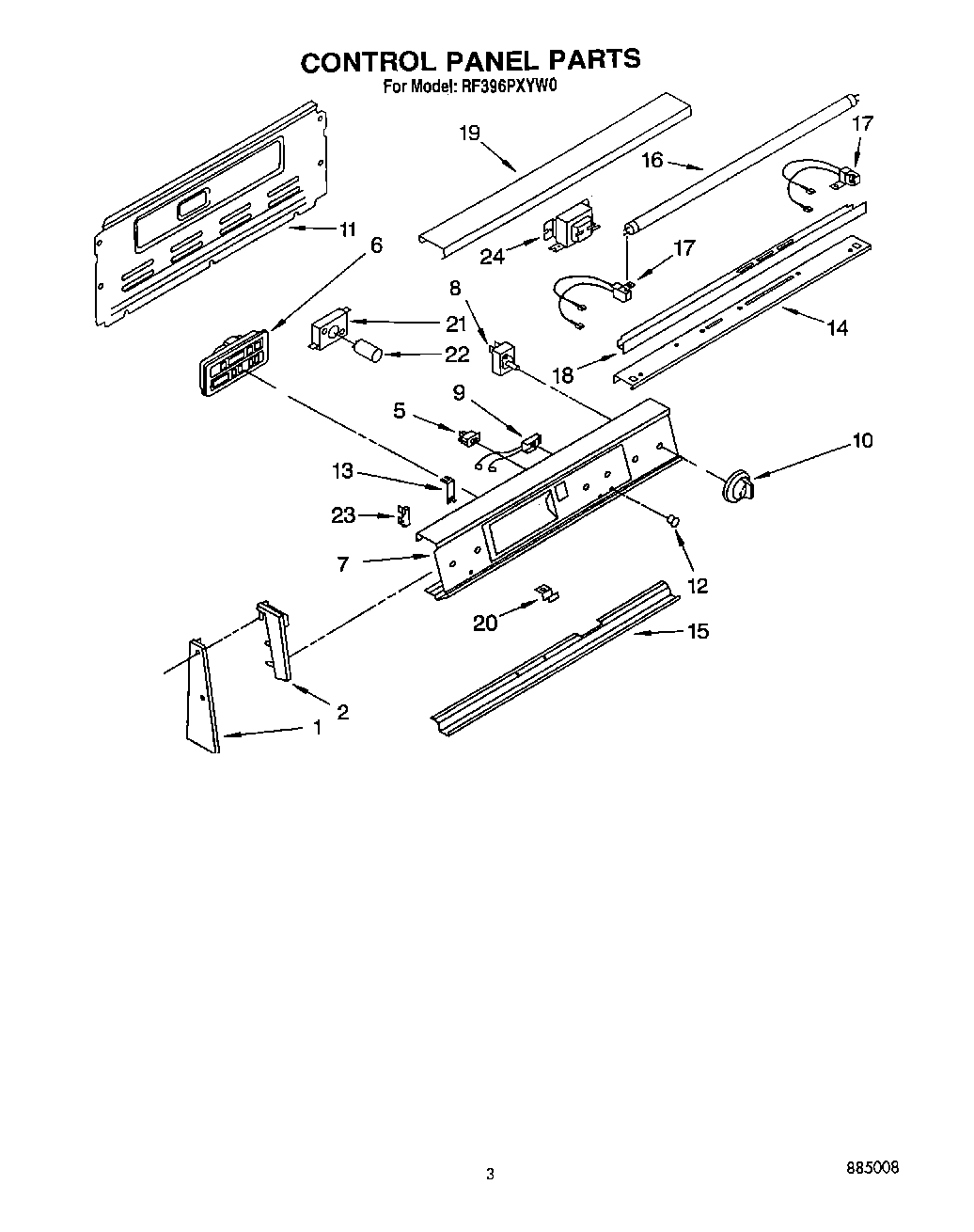

RF396PXYW0 03 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32x7/16``
1	Screw 10-32x1``
2	W11693756 Whirlpool Screw Assembly
2	End Cap R.H.
2	End Cap L.H.
5	Switch, Rocker (White)
5	Switch, Rocker
6	Control, Electronic (White)
6	WP965173 Whirlpool Dishwasher Screw
6	Control, Electronic (Black)
7	Panel, Control
7	Panel, Control (Designer White)
8	WP486579 Whirlpool Air Conditioner Screw
8	WP3148955 Whirlpool Infinite Switch
8	WP3148952 Whirlpool Oven Infinite Switch
9	Light, Indicator (Surface Unit (2))
10	Knob, (4) Infinite Switch (Designer Mdl)
10	Knob, (4) Infinite Switch (White/Almond/Gold)
11	SCREW
11	Harness-Conduit Asm.
12	Lens, Amber
13	Bracket, Support ERC
14	Trim, Top Socket
15	Bottom Trim
16	Lamp, Fluorescent
17	WP313808 Whirlpool Screw
17	Socket, Lamp (Light LH)
17	Socket, Lamp (Light RH)
18	Backguard, Lamp
19	Cover, Lamp (Designer White)
19	Cover, Lamp
20	Bracket, Support Wedge
21	Socket, Flourscent
22	Starter, Lamp
23	WP3196548 Whirlpool Thermal Fuse
24	Ballast
