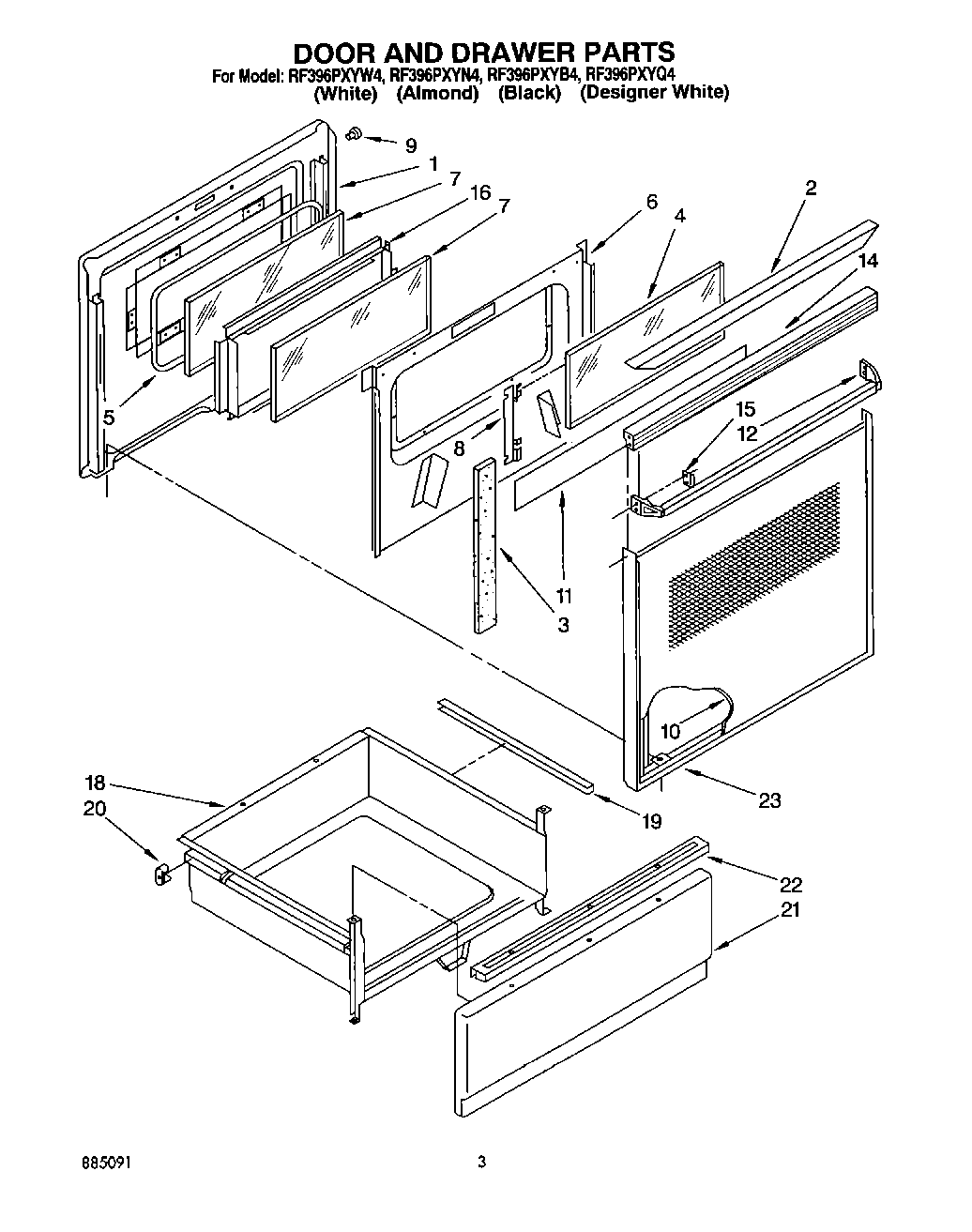

RF396PXYW4 03 – DOOR AND DRAWER

Products

Position	Product
1	Screw
1	Screw
1	Liner, Door
2	Cap, Top
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (White)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Oven Door
12	Handle, Door (White)
14	Screw, 10A x 1/2 (2) (Black)
14	Top, Door (Black Model)
14	WP308685 Whirlpool Microwave Screw
14	Top, Door (White Model)
15	Clip, Mtg (2)
16	Screw
16	Frame, Inner
18	Drawer, Utility
19	Protector, Drawer (2)
20	Glide, Rear (2)
21	Panel Drawer (White)
21	Panel, Drawer (Almond)
21	Panel Drawer (Black)
22	Handle, Drawer
22	WP488627 Whirlpool Refrigerator Screw
23	Screw, (2) 10-16 x 1/2
23	Frame, Door
23	Insulation, Door
23	WP355515 Whirlpool Screw
