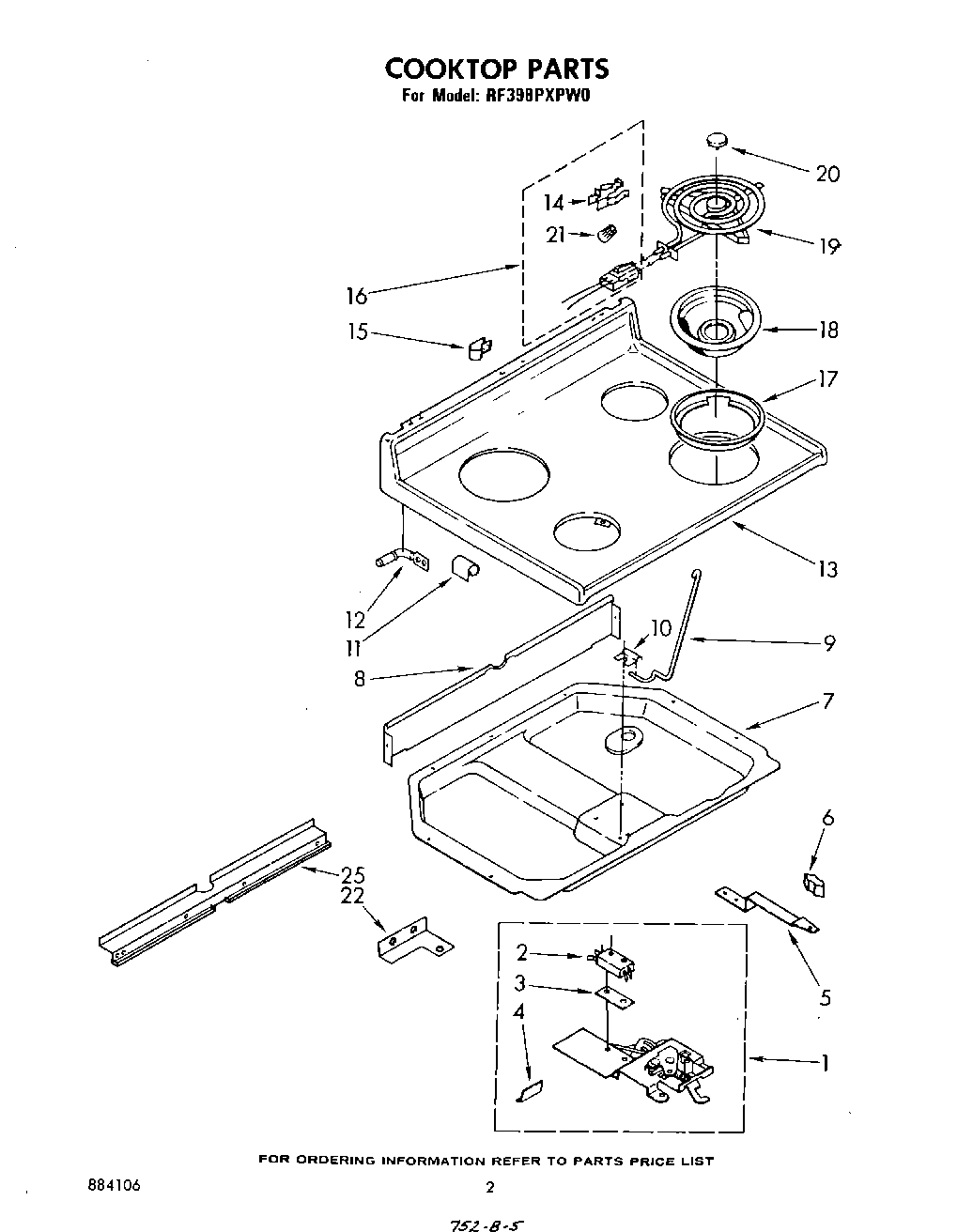

RF398PXPW0 02 – COOKTOP

Products

Position	Product
	WP660533 Whirlpool Oven 8" Surface Element
1	Latch Assembly (Pyro)
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	Screw (3)
5	Screw
5	WP488627 Whirlpool Refrigerator Screw
5	Handle, Latch
6	Knob, Latch
7	Burner Box
8	Shield, Wiring
9	Rod, Cooktop
10	Retainer, Cooktop
10	WP3390631 Whirlpool Screw
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
13	Cooktop (White)
13	Cooktop (New Avocado)
13	Cooktop (Coffee)
13	Cooktop (Platinum)
13	Cooktop (Toast)
13	Cooktop (Almond)
13	Cooktop (Harvest Gold)
14	BURNER RECEPTACLE KIT
15	WP308605 Whirlpool Refrigerator Clamp
16	WP313808 Whirlpool Screw
17	W10854470 Whirlpool Trim Ring
17	W10858781 Whirlpool Trim Ring
18	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
19	WP660532 Whirlpool Oven Surface Element
20	Medallion (4)
21	Connector (2)
22	Screw, 10A x 1/2 (2) (Black)
22	WPL 312320
25	SCREW
25	Shield, Heat (2)
