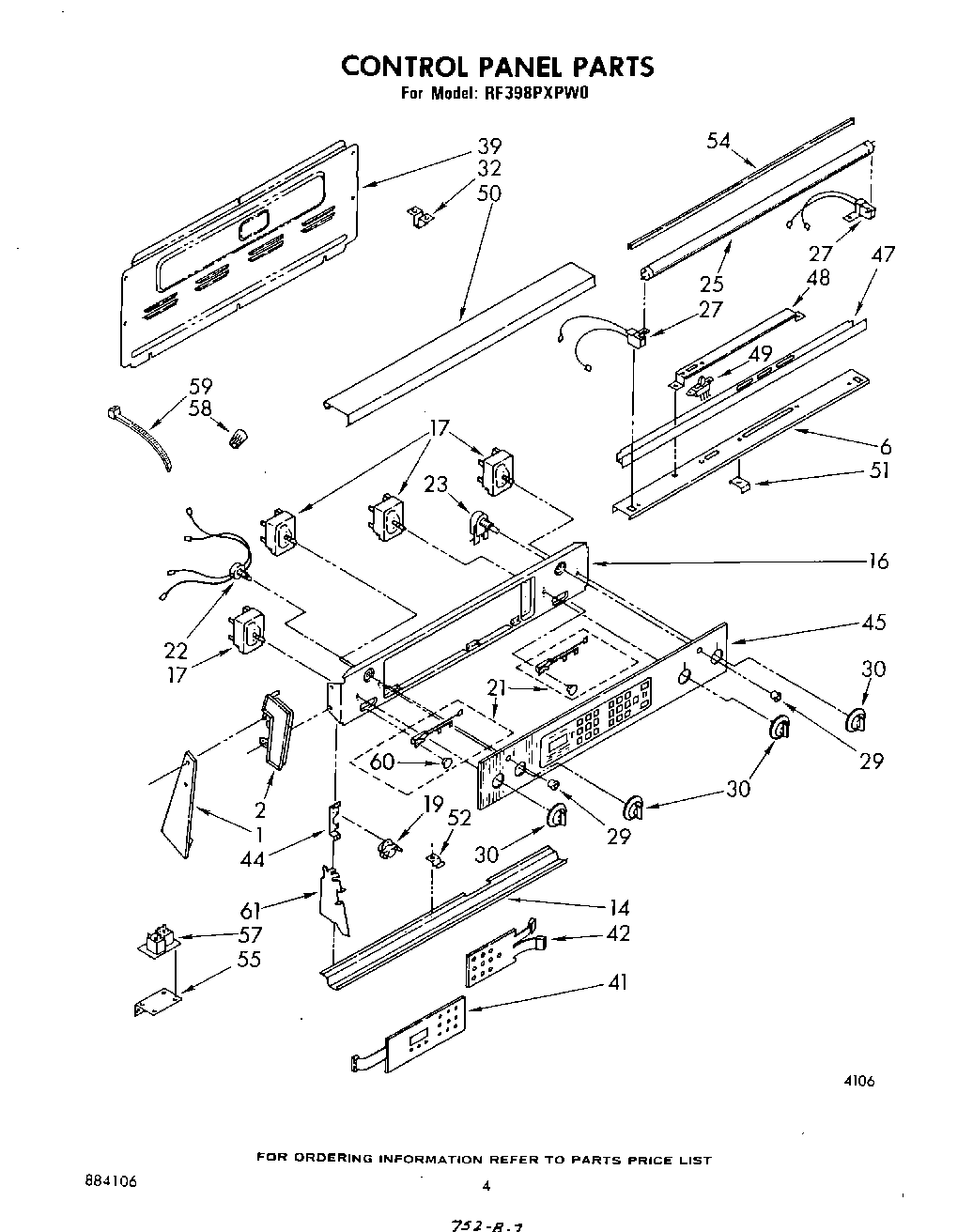

RF398PXPW0 03 – CONTROL PANEL

Products

Position	Product
1	Washer
1	Washer
1	End Trim L.H.
2	End Cap L.H.
2	End Cap R.H.
2	W11693756 Whirlpool Screw Assembly
6	Trim, Top
14	Trim, Bottom
14	W10113937 Whirlpool Clamp
14	Screw,
16	Bracket, Control Mounting
17	W10900107 Whirlpool Oven Surface Element Switch
17	WP486579 Whirlpool Air Conditioner Screw
19	(Alt.)
21	Light, Indicator (Surface Unit) (2) (Includes Illus. 41)
22	Switch, Fluorescent Light
23	nut, 3/8 x 27
23	Lockwasher
23	Switch, Oven Light
25	Lamp, Fluorescent
27	Socket, Light L.H.
27	Socket, Light R.H.
29	Bezel Switch (1)
30	Knob, Control (4)
32	Spacer (2)
39	Harness-Conduit Asm.
41	clip, clock to socket (2)
41	Board, Power Control
42	Board, Power Supply
44	WP313808 Whirlpool Screw
44	Bracket, Thermostat
45	Glass, Touch Panel
47	Backguard, Lamp
48	Cover, Slide Switch
49	Switch
50	WPL 313198
51	Support, Wedge Top
52	Support, Wedge
52	Screw
54	Protector, Lamp
55	SCREW
55	WPL 313485
55	WPL 313087
57	WPL 61761
58	WP75614 Whirlpool Connector
59	WPW10339879 Whirlpool Wire Tie
60	Lens (4)
61	WP965173 Whirlpool Dishwasher Screw
61	Shield, Glass (2)
