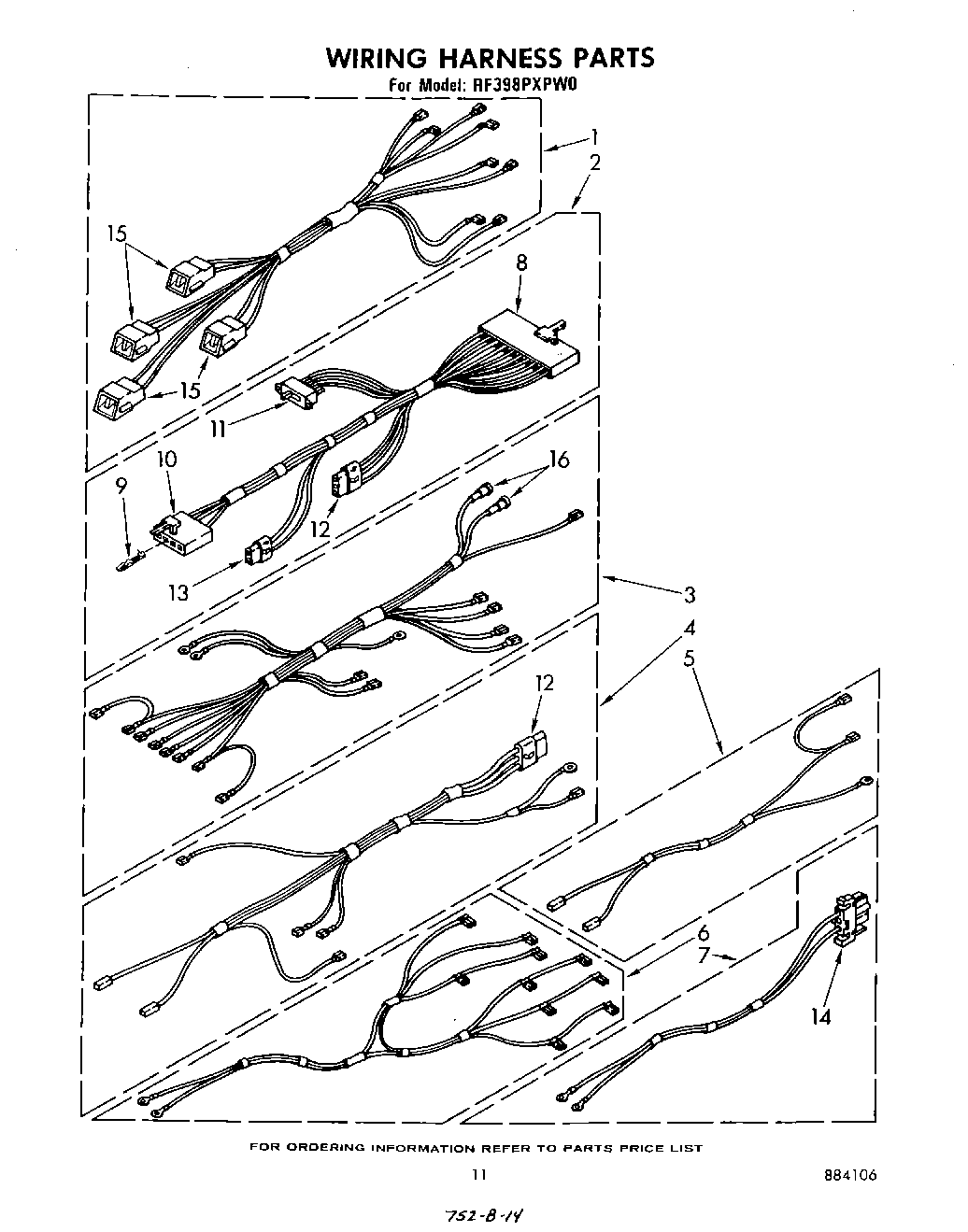

RF398PXPW0 07 – WIRING HARNESSadmin2025-04-26T12:48:27+00:00RF398PXPW0 07 – WIRING HARNESS
Products
| Position | Product |
|---|
| 1 | Harness, Wire (Suface Units) |
| 2 | Harness, Wire (Electronic) |
| 3 | Harness, Wire (Main) |
| 4 | Harness, Wire (Lockswitch) |
| 5 | Harness, Wire (Oven Light) |
| 6 | Harness, Wire (Infinite Switch) |
| 7 | Harness, Wire (AC Supply) |
| 8 | housing, ten-circuit connector |
| 9 | Harness, Wiring (Connector (10)) |
| 10 | Block, Disconnect |
| 11 | Switch |
| 12 | Housing, Terminal |
| 13 | Housing, Terminal |
| 14 | Block, Disconnect (Motor) (Uses Terminal No.310222) |
| 15 | BURNER RECEPTACLE KIT |
| 16 | Plug |
