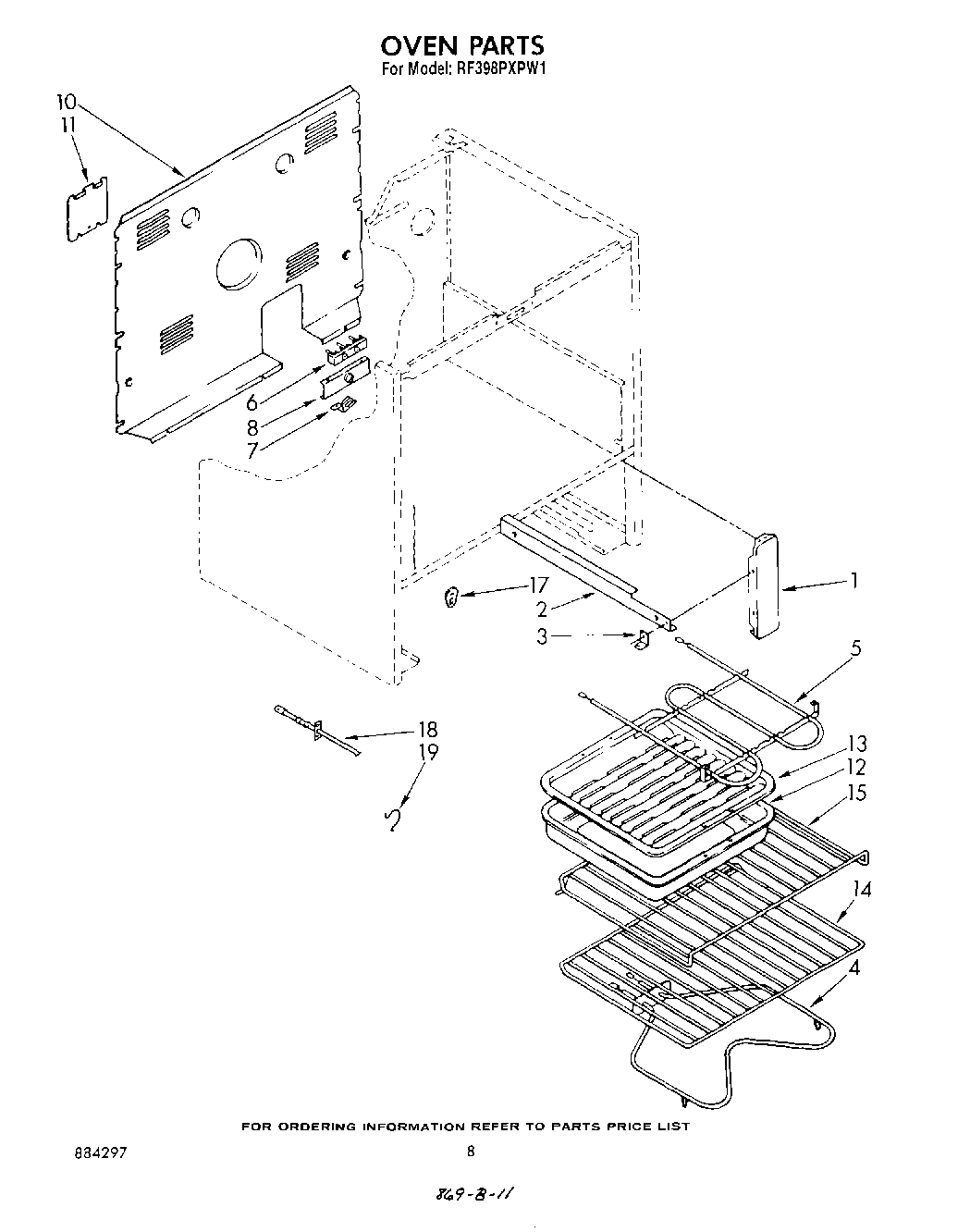

RF398PXPW1 05 – OVEN , LITERATURE AND OPTIONAL

Products

Position	Product
	511873 Whirlpool Refrigerator Paint
	WPL LIT313358
	Unit, Broil (208V)
	WPL LIT884297
	WPL LIT313301
	WP312309 Whirlpool Bake Element
	WPL LIT313426
	WPL LIT313473
1	Bracket, Mounting (2)
2	Rail R.H. (Includes Illus. 3)
2	rail l.h. (includes illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5	Screw, 10-32 x 5/8 (4)
6	WP112432 Whirlpool Nut Assembly
6	Screw, (2) 10-16 x 1
6	WP8203546 Whirlpool Terminal Block
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
11	SCREW
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
17	WPL 311982
17	Screw, 10A x 1/2 (2) (Black)
18	Alternate
18	Alternate
18	Sensor, Temperature
18	WP965173 Whirlpool Dishwasher Screw
19	Golden Harvest
19	8212471 Whirlpool Oven Paint
19	Wire (14 Ga. 200 c Brown)
19	Leveler (Thinner) (2oz.)
19	paint, spray 13 oz. (coffee)
19	1
19	Enamel, Coffee (1 Qt. Uncut)
19	Enamel, New Avocado (1 Qt. Uncut)
19	Grease
19	18 Ga. 80~c Rating (Red)
19	Wire (12 Ga. 150 c Black)
19	Wire (14 Ga. 150 c Yellow)
19	350942 Whirlpool Spray Paint
19	WPL 72112
19	Platinum (Uncut)
19	Enamal, Toast (1 Qt. Uncut)
19	Paint, Spray (13 Oz.) (Platinum)
19	Toast
19	Golden Harvest (Uncut)
19	72113 Whirlpool Touch-Up Paint
19	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
19	Almond (Uncut)
19	WP72107 Whirlpool Touchup
19	799344 Whirlpool Refrigerator Paint
19	72017 Whirlpool Appliance Touch-Up Paint White
19	350930 Whirlpool White Spray Paint
19	WPL 799832
19	Wire (14 Ga. 150 c Orange)
19	Wire (14 Ga. 150 c Green)
19	Wire (14 Ga. 150 c Brown)
19	Wire (14 Ga. 150 c Blue)
19	242831 Whirlpool Oven Wire
19	16515 Whirlpool Clip
19	Paint, Spray 13 Oz. (Avocado)
19	Paint, Touch-Up 1/2 Oz. (Coffee)
19	72109 Whirlpool Dacor Avocado Touch-Up Paint
19	285006 Whirlpool Spray
19	Wire, 25“ Roll (White 14 GA.)
19	Wire, 25` Roll (Red 14 Ga.)
19	Wire, 25` Roll (Black 14 Ga.)
19	350956 Whirlpool Spray Assembly
