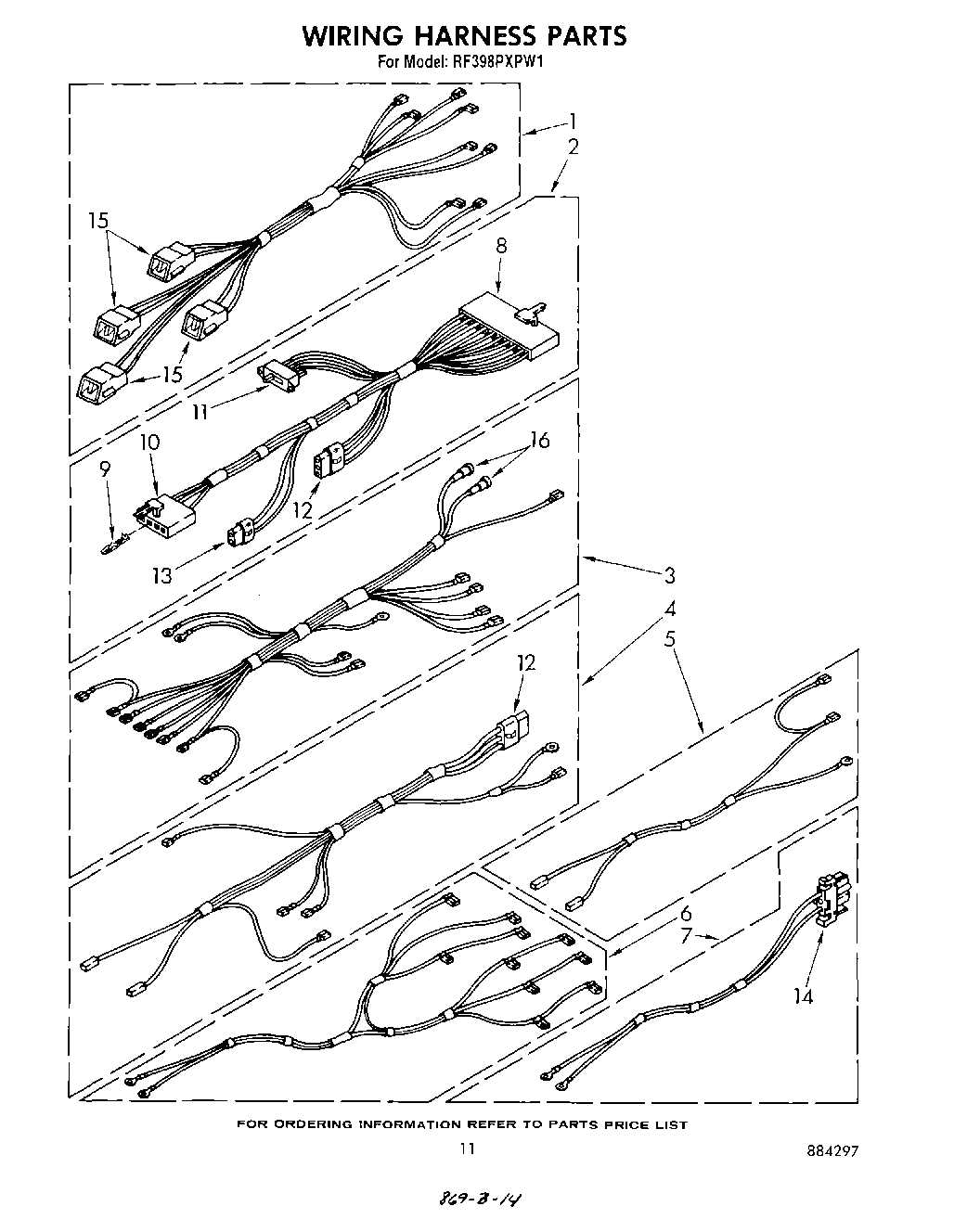

RF398PXPW1 07 – WIRING HARNESS

Products

PositionProduct
1Harness, Wire (Suface Units)
2Harness, Wire (Electronic)
3Harness, Wire (Main)
4Harness, Wire (Lockswitch)
5Harness, Wire (Oven Light)
6Harness, Wire (Infinite Switch)
7Harness, Wire (AC Supply)
8housing, ten-circuit connector
9Harness, Wiring (Connector (10))
10Block, Disconnect
11Switch
12Housing, Terminal
13Housing, Terminal
14Block, Disconnect (Motor) (Uses Terminal No.310222)
15BURNER RECEPTACLE KIT
16Plug
