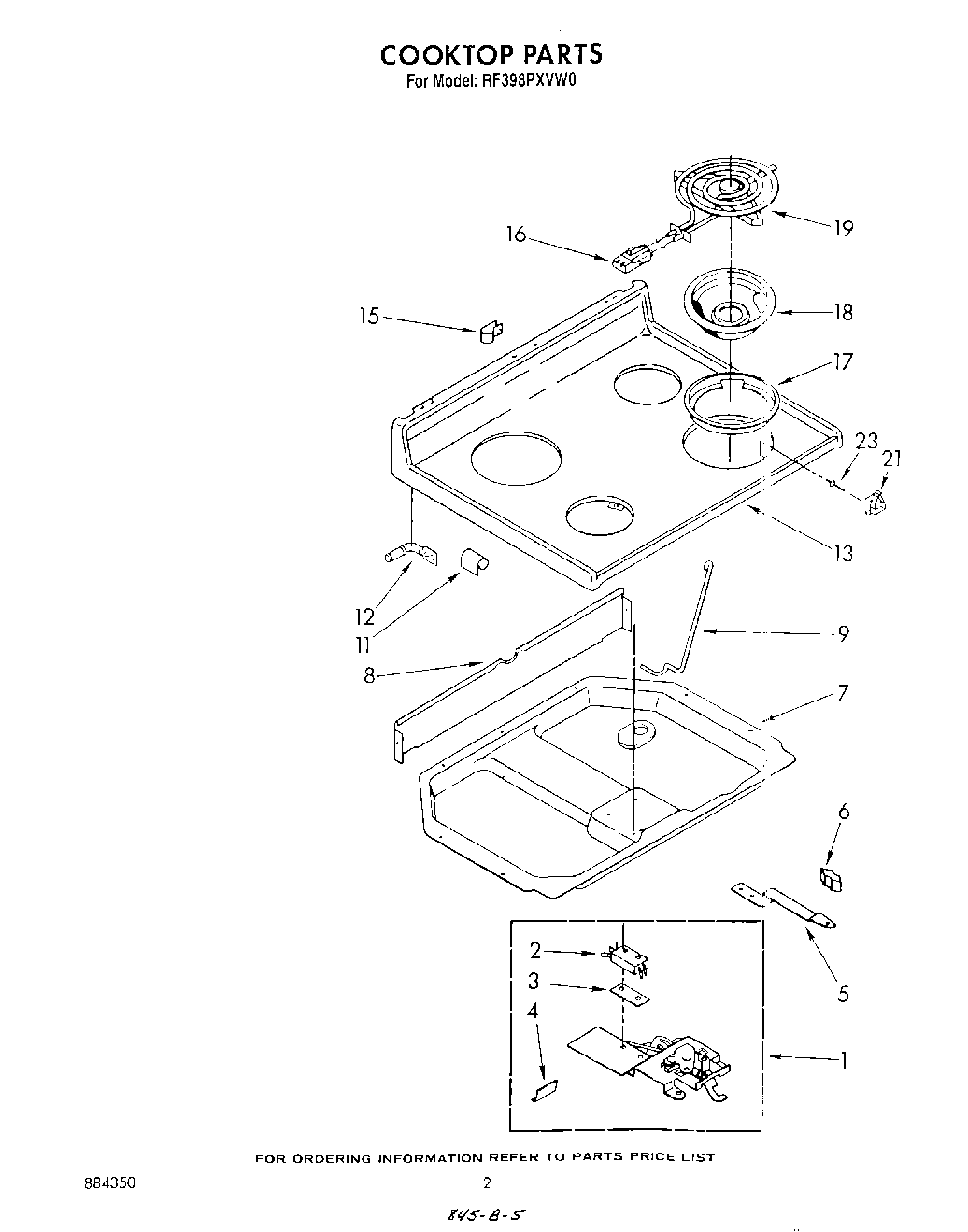

RF398PXVN0 02 – COOK TOP

Products

PositionProduct
WP660533 Whirlpool Oven 8" Surface Element
1Latch Assembly
2Safety Switch
2Screw
3Insulator, Switch
4Shield, Latch
4Screw
5Screw
5Screw (3)
5Handle, Latch
6Knob, Latch
6WP486579 Whirlpool Air Conditioner Screw
7Box, Burner
7WP3390631 Whirlpool Screw
8Shield, Wiring
9Rod, Cooktop
11Bracket, Cooktop (2)
12Pin, Cooktop (2)
13Cooktop (White)
13Cooktop (Almond)
15WP308605 Whirlpool Refrigerator Clamp
16WP313808 Whirlpool Screw
16WP4332752 Whirlpool Clip
17W10854470 Whirlpool Trim Ring
17W10858781 Whirlpool Trim Ring
18W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
19WP660532 Whirlpool Oven Surface Element
23814103 Whirlpool Clip
23SCREW
