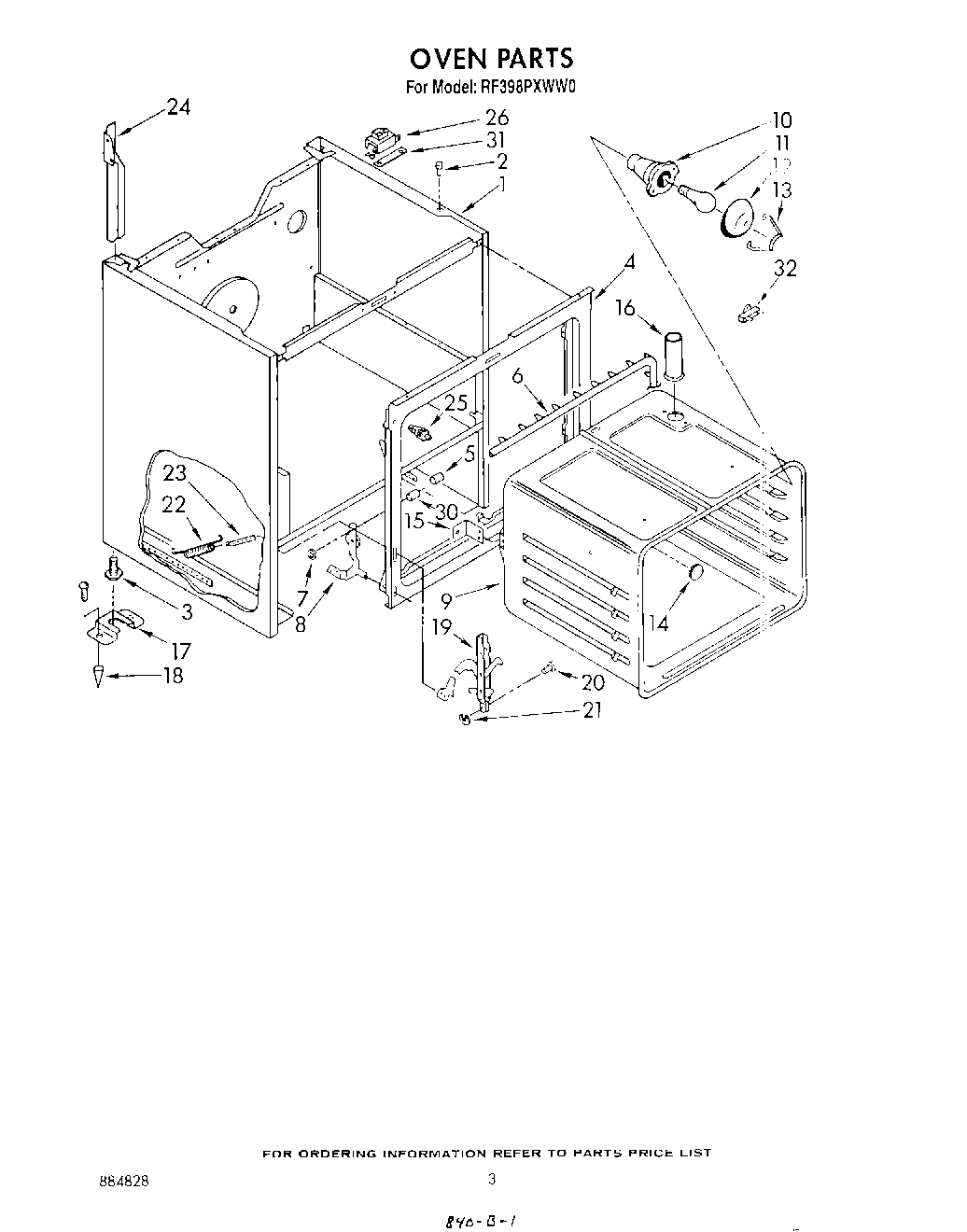

RF398PXWN0 03 – OVEN

Products

Position	Product
	SCREW
	Screw (10-12 x .875)
1	Main Chassis (White)
1	Main Chassis (Almond)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
6	Seal, Door
7	Pushnut (2)
8	Hinge (L.H.)
8	Hinge (R.H.)
9	Right All 21020E Models
9	Screw (3)
10	Socket, Oven Light (Alt.)
10	Socket, Oven Light
10	Socket, Oven Light (Alt.)
11	RANGE ONLY 40W 120V APPL BULB
12	Cover, Light
13	Retainer, Light
14	Plug Button
15	Bracket, Oven (Mounting)
16	Vent, Oven
16	Screw, 10A x 1/2 (2) (Black)
17	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
17	Screw
18	Anchor, Plastic
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	WP308126 Whirlpool Door Spring
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover-Controls (Right)
24	Wire Cover
25	Switch, Door
26	Ballast (Alt.)
26	Ballast
26	Ballast (Alt.)
30	Snubber, Door (2)
31	Insulator, Ballast
32	Screw
32	WP3196548 Whirlpool Thermal Fuse
