RF398PXWN0 06 – UNIT , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT884828
WPL LIT3148614
WPL 312318
511873 Whirlpool Refrigerator Paint
WPL LIT3149507
WPL LIT313426
WPL LIT3149920

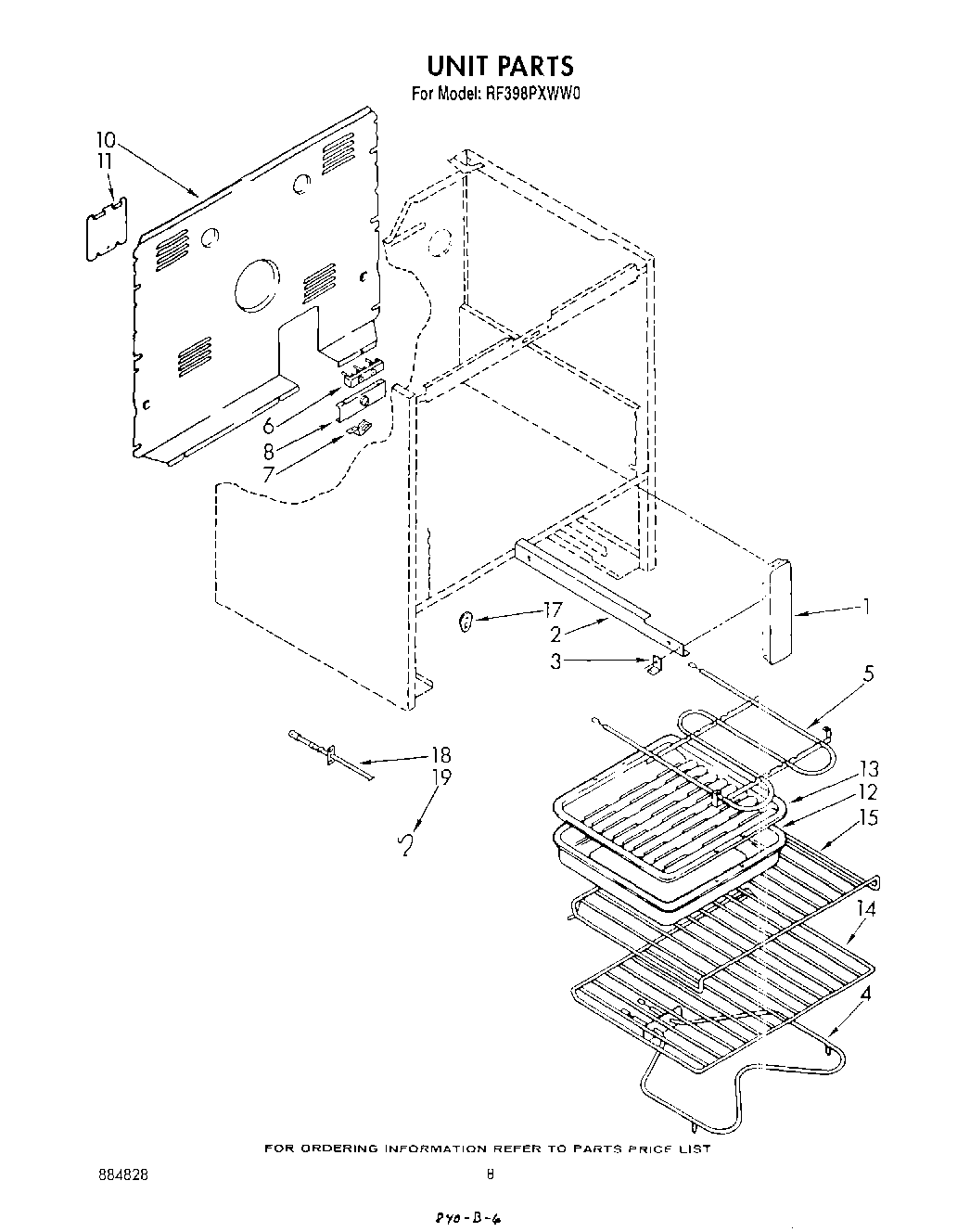

1Bracket, Mounting (2)
2Rail L.H. (Includes Illus. 3)
2Rail R.H. (Includes Illus. 3)
3Glide, Front (2)
4ELMNT-BAKE
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6Screw, (2) 10-16 x 1
6WP8203546 Whirlpool Terminal Block
6WP112432 Whirlpool Nut Assembly
7WPL 308498
7Clip, Ground Wire
8Bracket, Service
10Cover, Rear
11SCREW
11Cover, Service
134396923 Whirlpool Broil Pan Set Gray Porcelain
14WPL 308173
15WPL 308172
17WPL 311982
17Screw, 10A x 1/2 (2) (Black)
18Sensor, Temperature
18WP965173 Whirlpool Dishwasher Screw
19350930 Whirlpool White Spray Paint
19Wire (14 Ga. 150 c Yellow)
19Wire (12 Ga. 150 c Black)
1918 Ga. 80~c Rating (Red)
19Wire (14 Ga. 200 c Brown)
198212471 Whirlpool Oven Paint
19Enamel, New Avocado (1 Qt. Uncut)
19Grease
19Leveler (Thinner) (2oz.)
191
19Enamel, Coffee (1 Qt. Uncut)
19Wire (14 Ga. 150 c Orange)
19WPL 72112
19Platinum (Uncut)
19Enamal, Toast (1 Qt. Uncut)
19Paint, Spray (13 Oz.) (Platinum)
19Toast
19Golden Harvest (Uncut)
19Golden Harvest
1972113 Whirlpool Touch-Up Paint
1972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
19Almond (Uncut)
19WP72107 Whirlpool Touchup
19799344 Whirlpool Refrigerator Paint
1972017 Whirlpool Appliance Touch-Up Paint White
19350942 Whirlpool Spray Paint
19WPL 799832
19Wire (14 Ga. 150 c Green)
19Wire (14 Ga. 150 c Brown)
19Wire (14 Ga. 150 c Blue)
19242831 Whirlpool Oven Wire
1916515 Whirlpool Clip
19Paint, Spray 13 Oz. (Avocado)
19paint, spray 13 oz. (coffee)
19Paint, Touch-Up 1/2 Oz. (Coffee)
1972109 Whirlpool Dacor Avocado Touch-Up Paint
19285006 Whirlpool Spray
19Wire, 25“ Roll (White 14 GA.)
19Wire, 25` Roll (Red 14 Ga.)
19Wire, 25` Roll (Black 14 Ga.)
19350956 Whirlpool Spray Assembly
