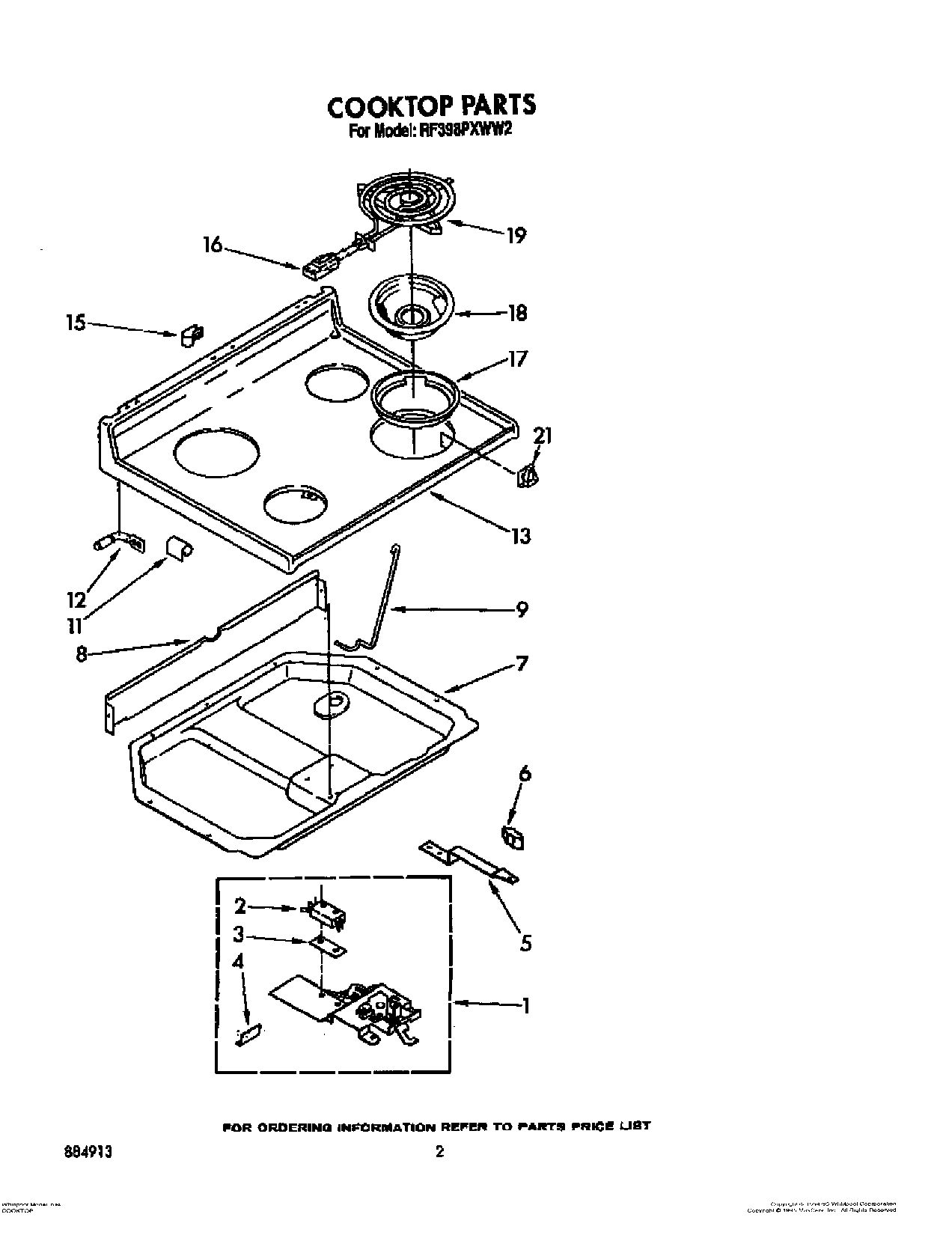

RF398PXWN2 02 – COOKTOP

RF398PXWN2 02 – COOKTOP

Written by

in

RF398PXWN2 02 – COOKTOP

Products

PositionProduct
WP660533 Whirlpool Oven 8" Surface Element
1Latch Assembly
2Screw
2Safety Switch
3Insulator, Switch
4Screw
4Shield, Latch
5Handle, Latch
5Screw
5Screw (3)
6Knob, Latch
6WP486579 Whirlpool Air Conditioner Screw
7Box, Burner
7WP3390631 Whirlpool Screw
8Shield, Wiring
9Rod, Cooktop
11Bracket, Cooktop (2)
12Pin, Cooktop (2)
13Cooktop (White)
13Cooktop (Almond)
15SCREW
15WP308605 Whirlpool Refrigerator Clamp
16WP4332752 Whirlpool Clip
16WP313808 Whirlpool Screw
17W10858781 Whirlpool Trim Ring
17W10854470 Whirlpool Trim Ring
18W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
18Reflector Pan (6“ (2))
19WP660532 Whirlpool Oven Surface Element
21814103 Whirlpool Clip
21WP487887 Whirlpool Refrigerator Screw
21Nut (4)
