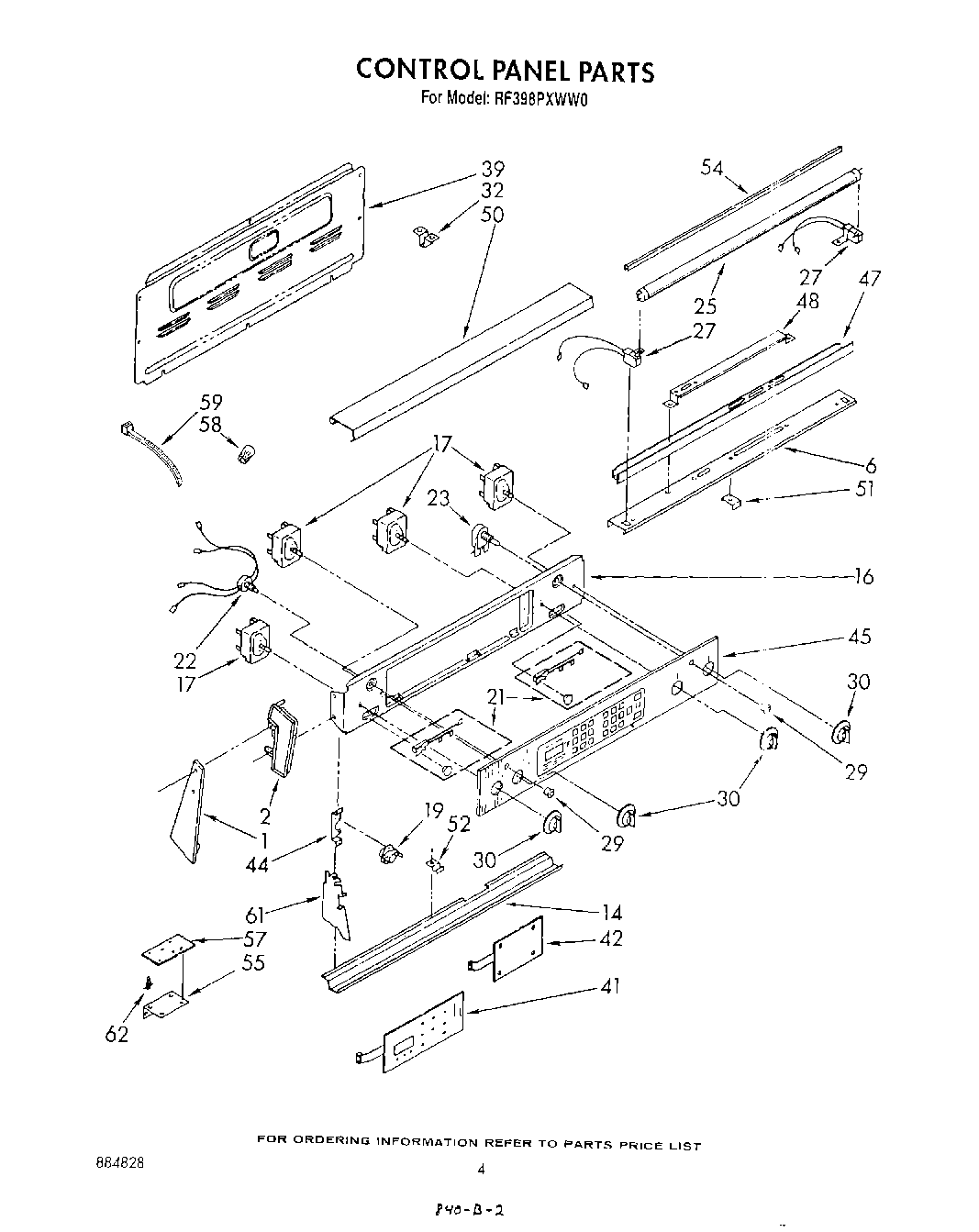

RF398PXWW0 04 – CONTROL PANEL

Products

Position	Product
	WPL ARI123151A
1	End Trim L.H.
1	Washer
1	Washer
2	End Cap L.H.
2	End Cap R.H.
6	Trim, Top
14	W10113937 Whirlpool Clamp
14	Screw,
14	Trim, Bottom
16	Bracket, Control Mounting
17	W10900107 Whirlpool Oven Surface Element Switch
17	WP486579 Whirlpool Air Conditioner Screw
19	(Alt.)
21	Light, Indicator (Surface Unit) (2) (Includes Illus. 41)
22	Switch, Fluorescent Light
23	nut, 3/8 x 27
23	Switch, Oven Light
23	Lockwasher
25	Lamp, Fluorescent
27	Socket, Light L.H.
27	Socket, Light R.H.
29	Bezel Switch (1)
30	WP3149983 Whirlpool Knob
32	Spacer (2)
39	Harness-Conduit Asm.
41	Board, Power Control
42	Board, Power Supply
44	WP313808 Whirlpool Screw
44	Bracket, Thermostat
45	Glass, Touch Panel
47	Backguard, Lamp
48	Cover, Slide Switch
50	Cover, Lamp
51	Support, Wedge Top
52	Screw
52	Support, Wedge
54	Protector, Lamp
55	SCREW
55	WPL 313485
57	WPL 3147980
58	WP75614 Whirlpool Connector
59	WPW10339879 Whirlpool Wire Tie
61	WP965173 Whirlpool Dishwasher Screw
61	Shield, Glass (2)
62	WPL 313087
