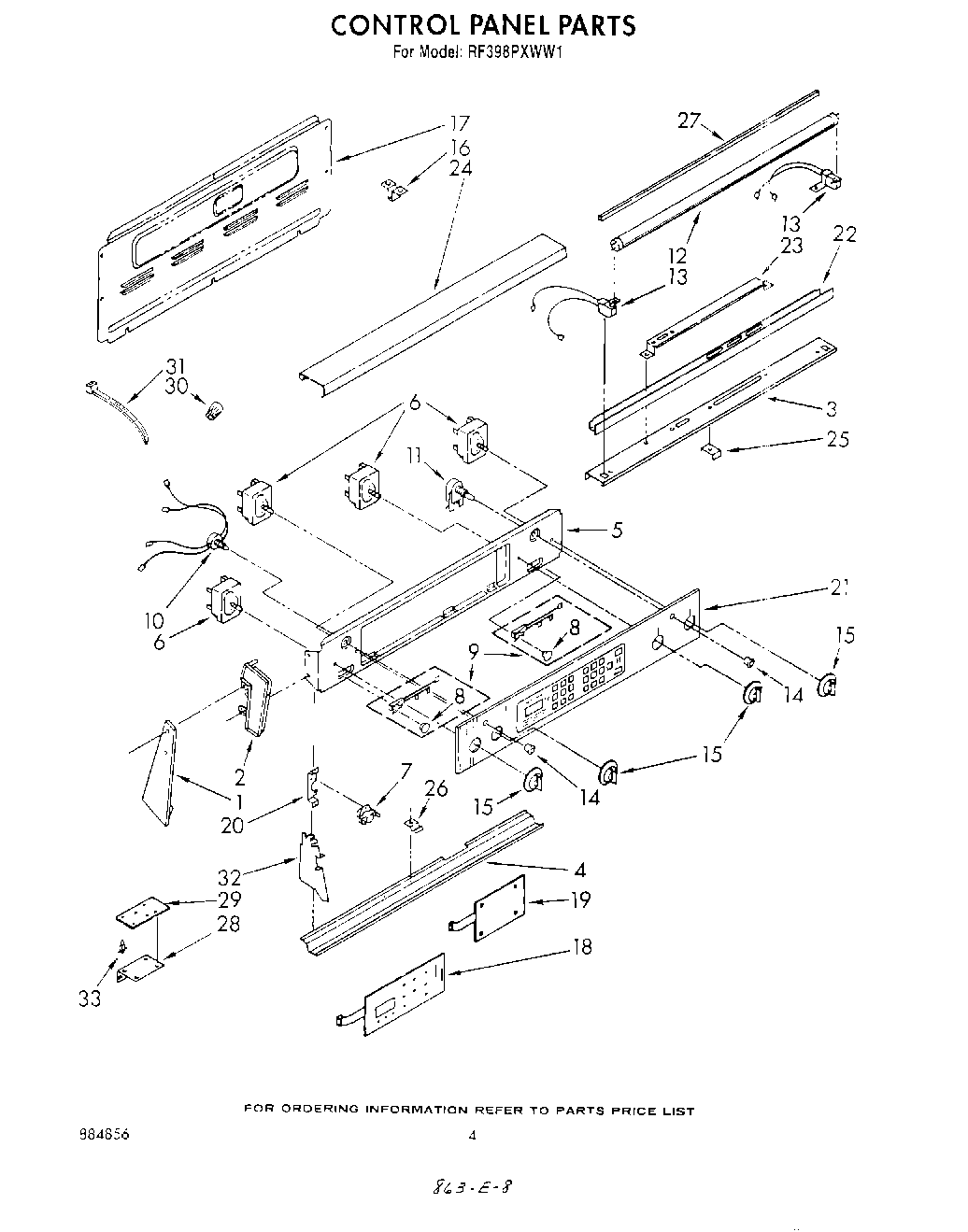

RF398PXWW1 04 – CONTROL PANEL

Products

Position	Product
1	Washer
1	End Trim L.H.
1	Washer
2	End Cap L.H.
2	End Cap R.H.
3	Trim, Top
4	W10113937 Whirlpool Clamp
4	Trim, Bottom
4	Screw,
5	Bracket, Control Mounting
6	W10900107 Whirlpool Oven Surface Element Switch
6	WP486579 Whirlpool Air Conditioner Screw
7	(Alt.)
8	Lens (4)
9	Light, Indicator (Surface Unit) (2) (Includes Illus. 41)
10	Switch, Fluorescent Light
11	Switch, Oven Light
11	nut, 3/8 x 27
11	Lockwasher
12	Lamp, Fluorescent
13	Socket, Light L.H.
13	Socket, Light R.H.
14	Bezel Switch (1)
15	WP3149983 Whirlpool Knob
16	Spacer (2)
17	Harness-Conduit Asm.
18	Board, Power Control
19	Board, Power Supply
20	Bracket, Thermostat
20	WP313808 Whirlpool Screw
21	Glass, Touch Panel
22	Backguard, Lamp
23	Cover, Slide Switch
24	Cover, Lamp
25	Support, Wedge Top
26	Support, Wedge
26	Screw
27	Protector, Lamp
28	WPL 313485
28	SCREW
29	WPL 3147980
30	WP75614 Whirlpool Connector
31	WPW10339879 Whirlpool Wire Tie
32	WP965173 Whirlpool Dishwasher Screw
32	Shield, Glass (2)
33	WPL 814118
33	WPL 313087
