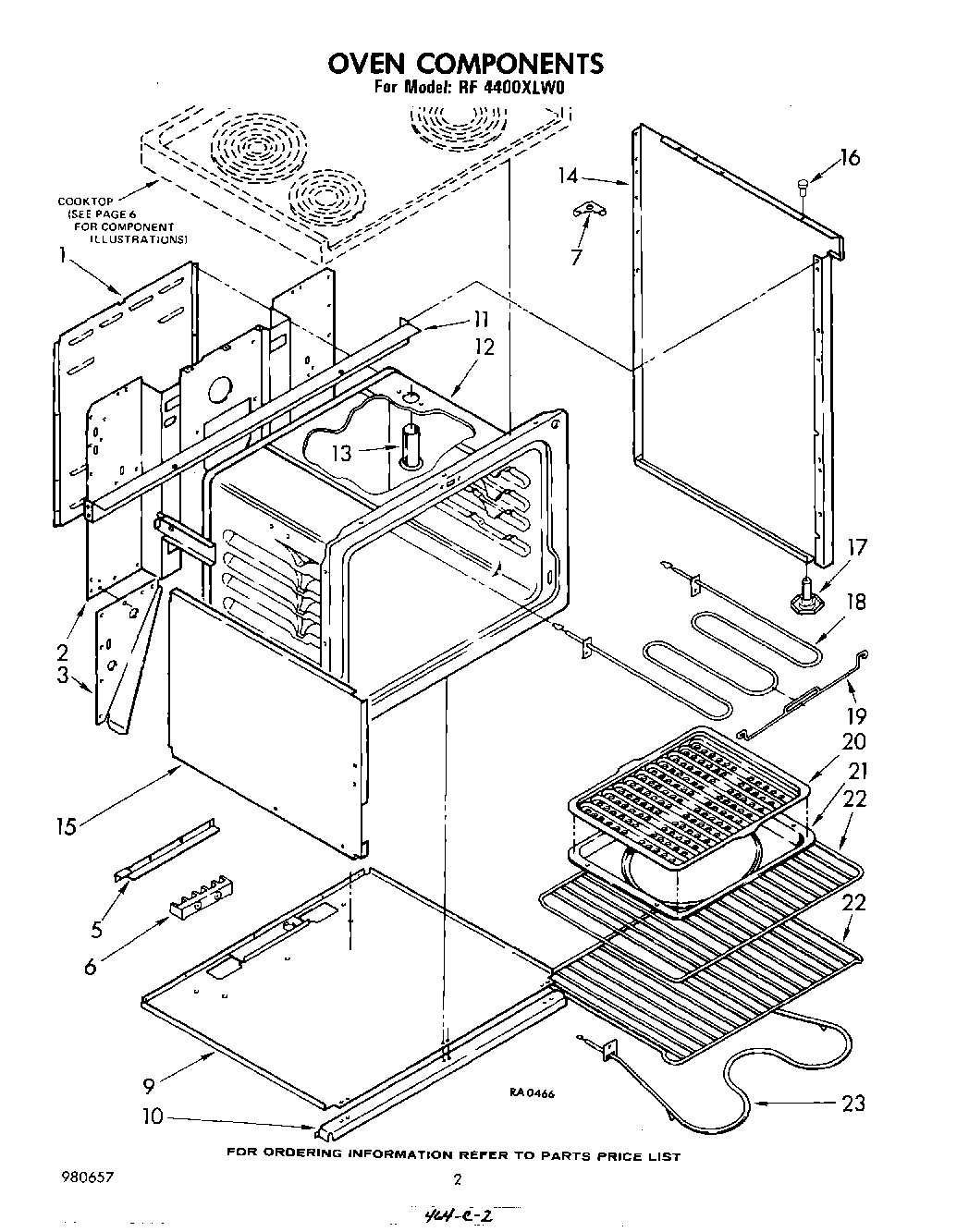

RF4400XLW0 02 – OVEN

Products

Position	Product
1	Washer (3)
1	Cover Wiring, Low
2	Back, Range
3	Gusset, Rear (R.H.)
3	Gusset, Rear (L.H.)
5	Support, Gusset
6	WP8203546 Whirlpool Terminal Block
6	Hex Nut, 10-32 (6)
6	Washer (Ground) (3)
7	Gusset, Backguard (2)
9	Panel, Weldment (Bottom)
9	Bottom, Compartment
10	Channel, Support
10	WPL 834649
11	Bracket, Cooktop
12	Oven
13	Tube, Oven Vent
13	Screw, 10-24 x 3/8 (2)
14	Panel, End R.H. (New Avocado)
14	Panel, End R.H. (Coffee)
14	Panel, End R.H. (Almond)
14	Panel, End R.H. (Coffee)
14	Panel, End R.H. (Harvest Gold)
14	Panel, End R.H. (New Avocado)
14	Handle, Drawer
14	Panel, End R.H. (Harvest Gold)
14	Screw, 10-24 x 1/2 (3)
14	Panel, End R.H. (White)
14	Panel, End R.H. (Almond Panel, End L.H.)
15	Partition, Center
16	WPL 834667
17	Leg Leveler (4)
18	Unit, Broil
19	Hanger, Broil Unit
20	4396923 Whirlpool Broil Pan Set Gray Porcelain
21	Pan, Broiler
22	WPL 865983
22	Rack, Oven Offset
23	Unit Bake (Screw, 10-24 x 1/2 (2))
23	WP865940 Whirlpool Bake Element
