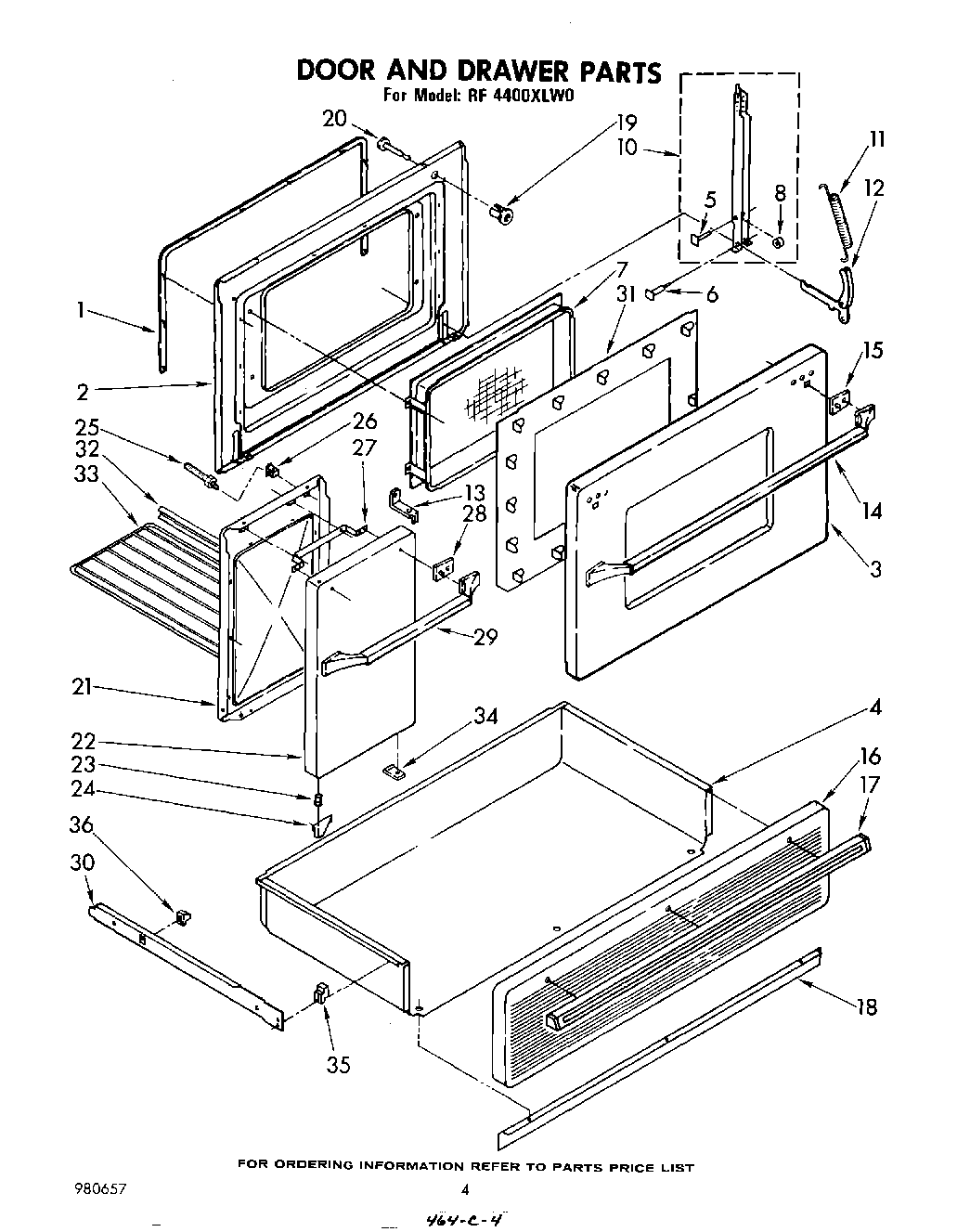

RF4400XLW0 03 – DOOR AND DRAWER

Products

Position	Product
1	Gasket, Door (Alternate)
1	Gasket, Door (Alternate)
2	Liner, Oven Door
2	Screw
3	Panel, Oven Door (Coffee)
3	WPL 595119
3	Panel, Oven Door (White)
3	Panel, Oven Door (New Avocado)
3	Panel, Oven Door (Almond)
3	Panel, Oven Door (Harvest Gold)
4	Drawer
5	Rivet (2)
6	Pin, Hinge (2)
7	Screw, 10-24 x 3/4 (4)
7	Washer (4)
7	Window, Oven Door
8	Roller, Stop (2)
10	Channel, L.H.
10	Washer (2)
10	Channel Assembly
11	Spring, Door (2)
12	Arm Assembly (2)
13	Bracket, Strike
14	Handle, Door (Main)
16	WPL 868248
16	WPL 868250
16	panel, drawer (new
16	Panel, Drawer
16	Panel, Drawer (Almond)
17	Screw, 10-24 x 3/8
17	Handle, Drawer
18	WPL 866136
18	WP965173 Whirlpool Dishwasher Screw
19	Collar, Light Switch Actuator
20	Plunger, Light Switch Actuator
21	Liner, Compartment Door
22	Panel, Oven Door (Auxiliary) (Coffee)
22	Panel, Oven Door (Auxiliary) (Harvest Gold)
22	Unit Bake (Screw, 10-24 x 1/2 (2))
22	panel, oven door (auxiliary) (almond)
22	panel, oven door (auxiliary) (white)
22	Panel, Oven Door (Auxiliary) (New Avocado)
23	Spacer, Hinge (2) Pin
24	WPL 865930
24	Screw 10-24 x 1/2
24	Hinge, Oven Door (
24	Hinge, Oven Door (Auxiliary) (Screw, 8-32 x 3/8 (2) (Top))
25	W10080180 Whirlpool Nut
25	Strike, Door
26	Catch, Door Panel
27	Spacer, Door
28	Spacer, Handle (2)
29	Screw, 10-24 x 5/8 (2)
29	Handle, Door
30	rail, drawer (R.H.)
30	Rail, Drawer (L.H.)
31	WPL 868637
32	WPL 868227
33	WPL 865931
34	WPL 866300
35	Guide, Drawer (Front)
35	WPL 834649
36	Screw, 10-24 x 1/2 (3)
36	Guide, Drawer (Back)
