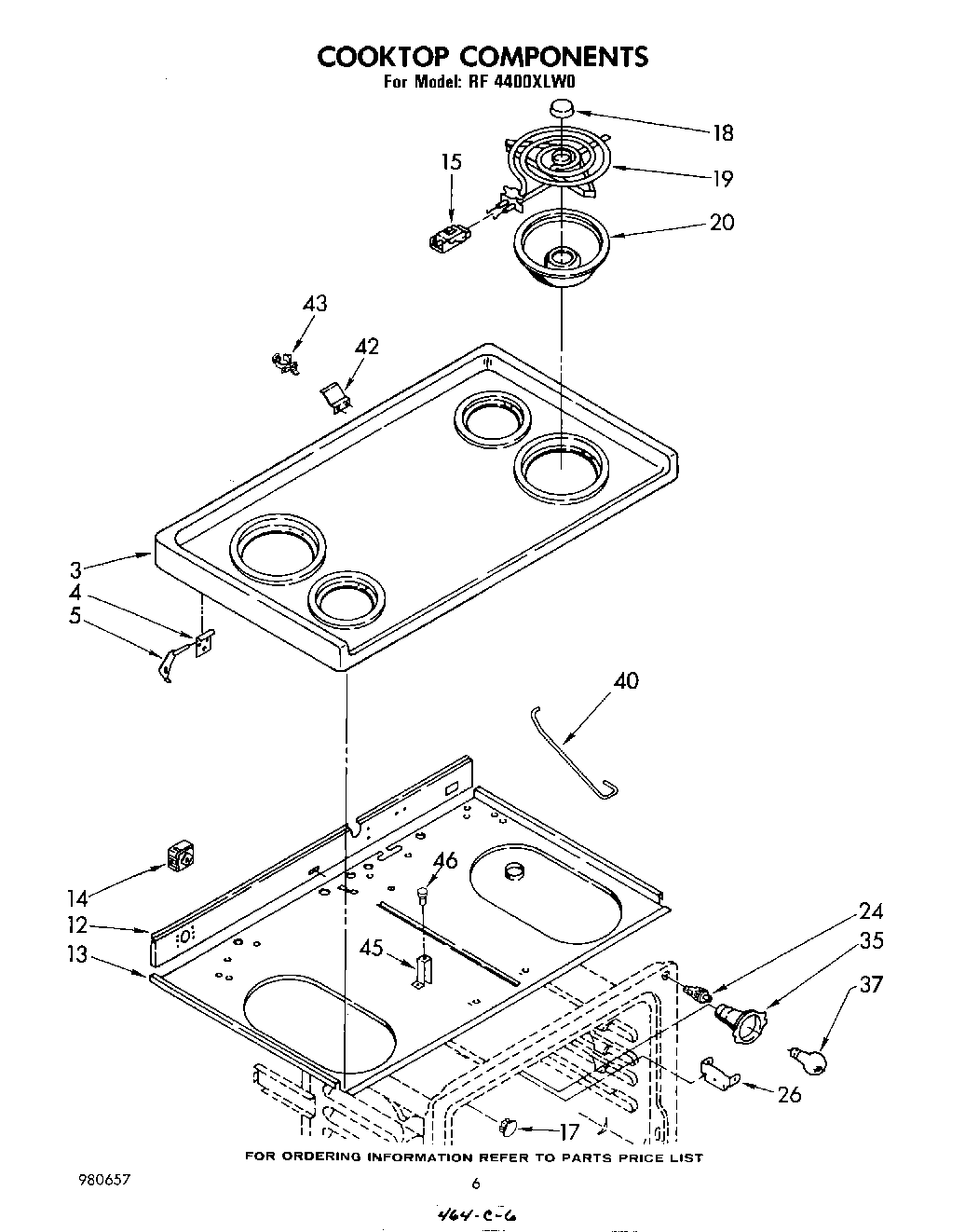

RF4400XLW0 04 – COOKTOP

Products

Position	Product
3	Cooktop (Coffee)
3	Cooktop (Harvest Gold)
3	Cooktop (Almond)
3	Cooktop
3	Cooktop (New Avocado)
4	Retainer, Hinge Pin (2)
5	Bracket, Hinge Pin ((LH))
5	Bracket, Hinge Pin ((RH))
12	Shield, Wiring
13	Panel, Subtop
13	Nut, 10-24 (2)
13	Screw, 10-24 x 3/8
14	WPL 486525
14	Switch, Cycling
15	WP486754 Whirlpool Compactor Screw
15	BURNER RECEPTACLE KIT
17	Button, Plug
18	WPL 868522
19	WP660532 Whirlpool Oven Surface Element
19	WP660533 Whirlpool Oven 8" Surface Element
20	DRIP BOWL 8" W/HOLE CHROME
20	WPW10196406 Whirlpool 6" Chrome Drip Bowl
24	Switch, Oven Light
26	Unit Bake (Screw, 10-24 x 1/2 (2))
26	Bracket, Thermo Bulb
35	Washer (2)
35	Socket, Light
35	WPL 834649
37	RANGE ONLY 40W 120V APPL BULB
40	Rod, Cooktop Support
42	Bracket, Control Panel (2)
43	WPL 868136
45	WPL 866303
45	Screw, 10-24 x 1/2 (3)
46	WPL 241263
