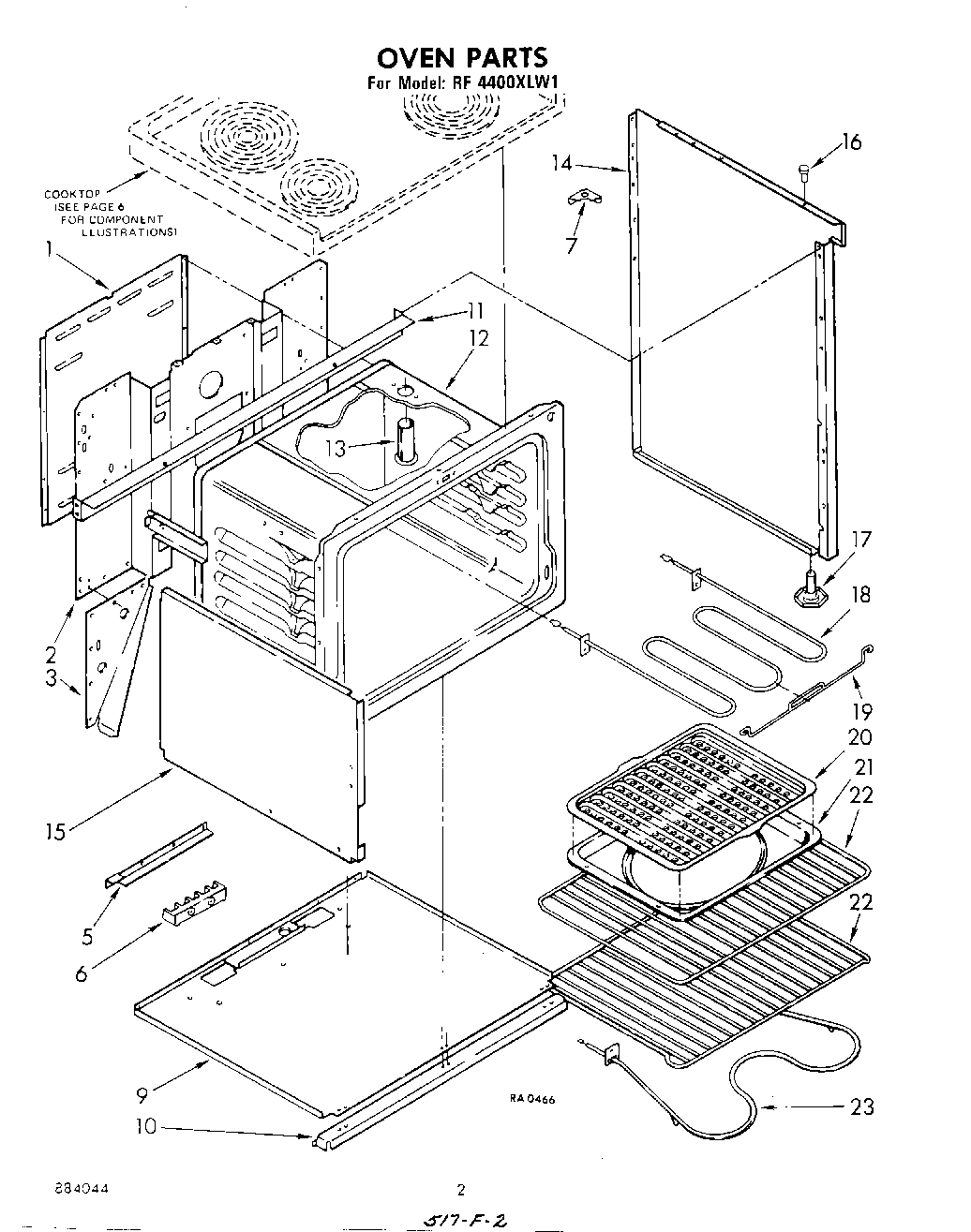

RF4400XLW1 02 – OVEN

Products

PositionProduct
1Cover Wiring, Low
1Washer (3)
2Back, Range
3Gusset, Rear (L.H.)
3Gusset, Rear (R.H.)
5Support, Gusset
6Washer (Ground) (3)
6WP8203546 Whirlpool Terminal Block
6Hex Nut, 10-32 (6)
7Gusset, Backguard (2)
9Panel, Weldment (Bottom)
9Bottom, Compartment
10Channel, Support
10WPL 834649
11Screw, 10-24 x 1/2 (3)
11Bracket, Cooktop
12Oven
13Screw, 10-24 x 3/8 (2)
13Tube, Oven Vent
14Panel, End R.H. (Harvest Gold)
14Panel, End R.H. (Almond)
14Panel, End R.H. (White)
14Panel, End R.H. (Harvest Gold)
14Panel, End R.H. (New Avocado)
14Panel, End R.H. (Coffee)
14Panel, End R.H. (Coffee)
14Panel, End R.H. (White)
14Panel, End R.H. (New Avocado)
14Panel, End R.H. (Almond Panel, End L.H.)
15Partition, Center
16WPL 834667
17Leg Leveler (4)
18Unit, Broil
19Hanger, Broil Unit
204396923 Whirlpool Broil Pan Set Gray Porcelain
21Pan, Broiler
22WPL 865983
22Rack, Oven Offset
23Unit Bake (Screw, 10-24 x 1/2 (2))
23WP865940 Whirlpool Bake Element
