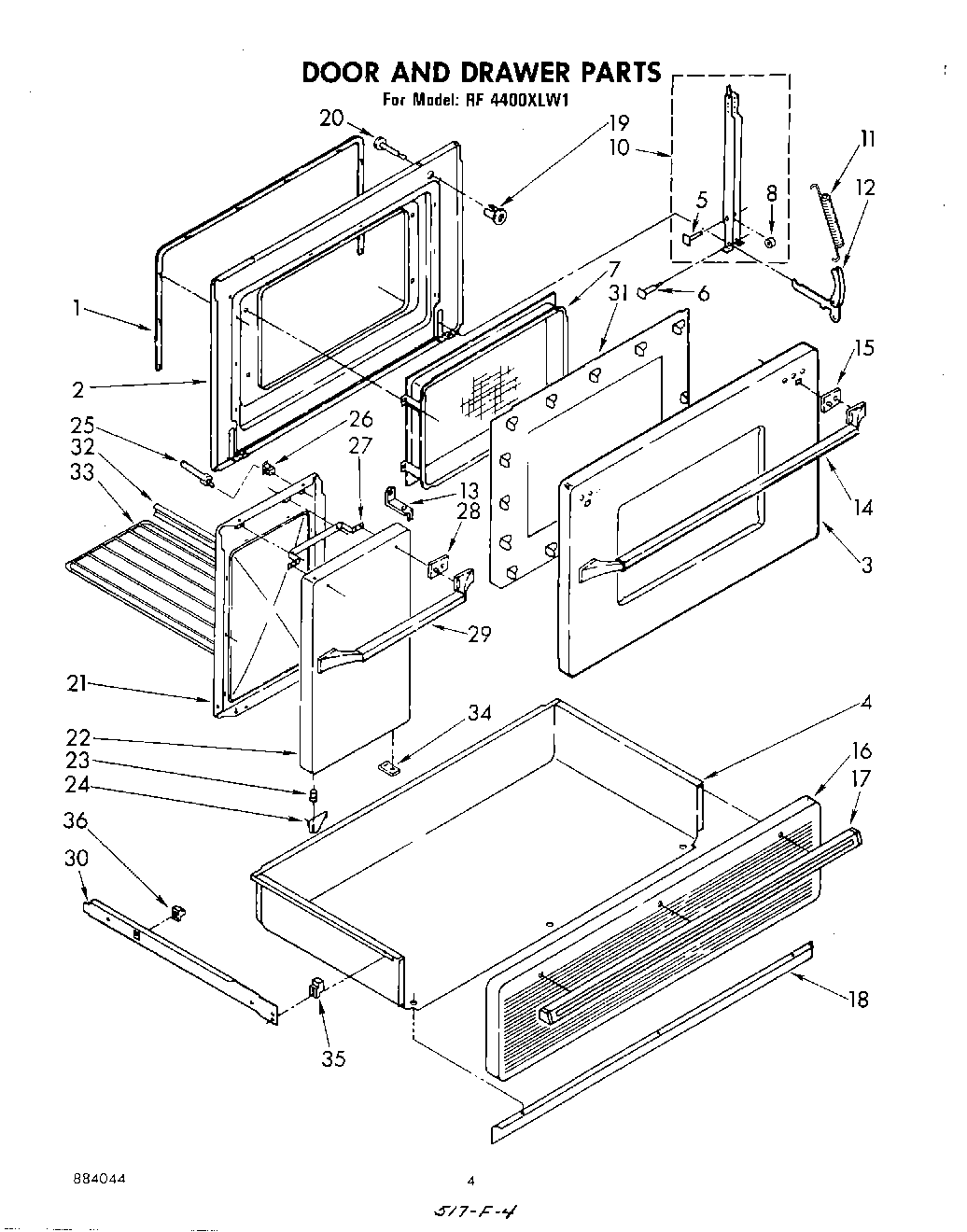

RF4400XLW1 03 – DOOR AND DRAWER

Products

Position	Product
1	Gasket, Door (Alternate)
1	Gasket, Door (Alternate)
2	Screw
2	Liner, Oven Door
3	Panel, Oven Door (Coffee)
3	Panel, Oven Door (Almond)
3	Panel, Oven Door (White)
3	Panel, Oven Door (New Avocado)
3	Panel, Oven Door (Harvest Gold)
3	WPL 595119
4	Drawer
5	Rivet (2)
6	Pin, Hinge (2)
7	Screw, 10-24 x 3/4 (4)
7	Washer (4)
7	Window, Oven Door
8	Roller, Stop (2)
10	Channel, L.H.
10	Channel Assembly
10	Washer (2)
11	Spring, Door (2)
12	Arm Assembly (2)
13	Bracket, Strike
14	Handle, Door (Main)
16	Panel, Drawer
16	WPL 868248
16	WPL 868250
16	panel, drawer (new
16	Panel, Drawer (Almond)
17	Handle, Drawer
17	Screw, 10-24 x 3/8
18	WPL 866136
18	WP965173 Whirlpool Dishwasher Screw
19	Collar, Light Switch Actuator
20	Plunger, Light Switch Actuator
21	Liner, Compartment Door
22	Panel, Oven Door (Auxiliary) (Coffee)
22	panel, oven door (auxiliary) (white)
22	panel, oven door (auxiliary) (almond)
22	Unit Bake (Screw, 10-24 x 1/2 (2))
22	Panel, Oven Door (Auxiliary) (New Avocado)
22	Panel, Oven Door (Auxiliary) (Harvest Gold)
23	Spacer, Hinge (2) Pin
24	Hinge, Oven Door (
24	Hinge, Oven Door (Auxiliary) (Screw, 8-32 x 3/8 (2) (Top))
24	Screw 10-24 x 1/2
24	WPL 865930
25	Strike, Door
25	W10080180 Whirlpool Nut
26	Catch, Door Panel
27	Spacer, Door
28	Spacer, Handle (2)
29	Handle, Door
29	Screw, 10-24 x 5/8 (2)
30	Rail, Drawer (Right Side)
30	Rail, Drawer (Left Side)
31	WPL 877841
32	WPL 868227
33	WPL 865931
34	WPL 866300
35	Guide, Drawer (Front)
35	WPL 834649
36	Guide, Drawer (Back)
36	Screw, 10-24 x 1/2 (3)
