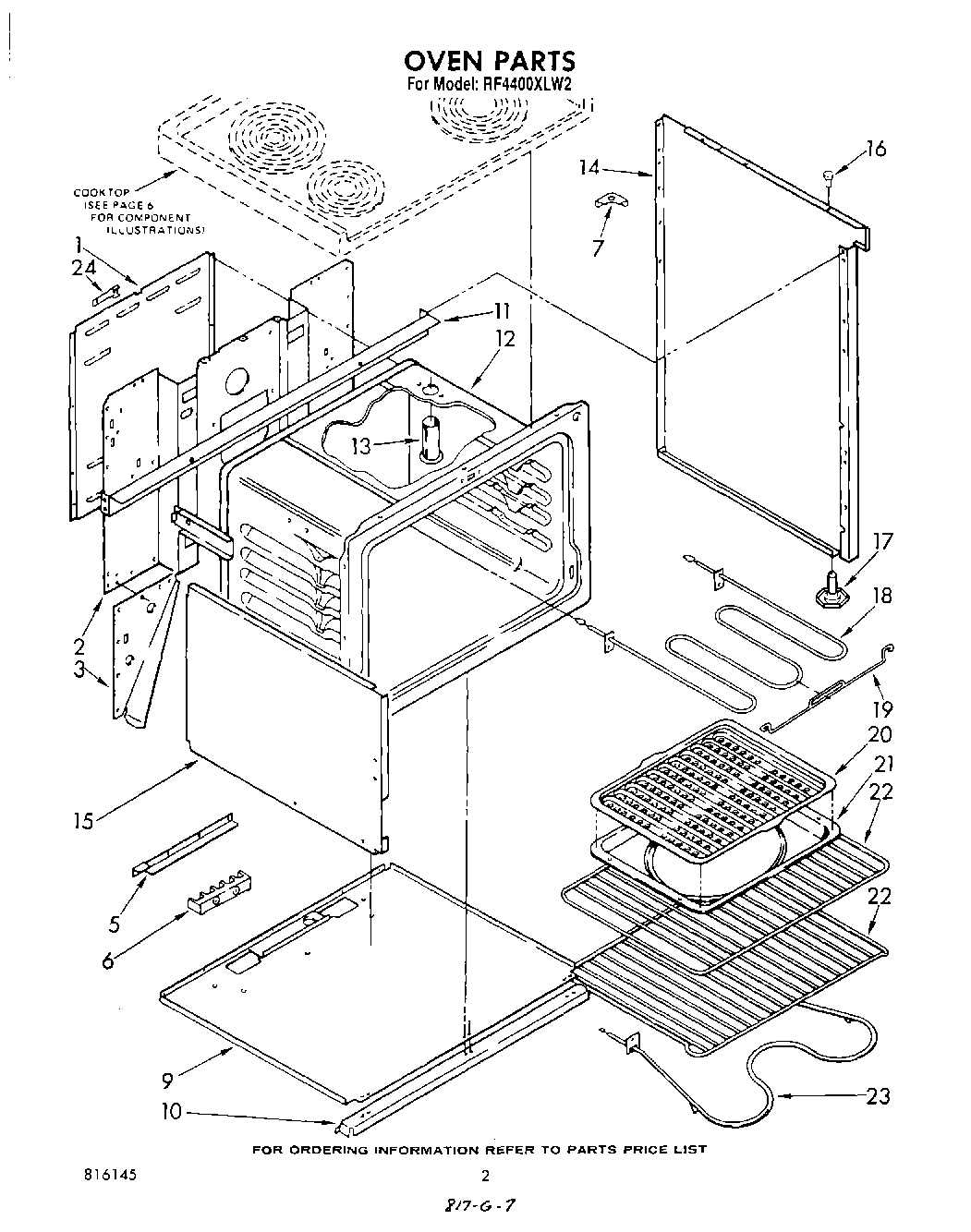

RF4400XLW2 02 – OVEN

RF4400XLW2 02 – OVEN

Written by

in

RF4400XLW2 02 – OVEN

Products

PositionProduct
1Washer (3)
1Cover, Wiring
2Back, Range
3Gusset, Rear (R.H.)
3Gusset, Rear (L.H.)
5Support, Gusset
6Washer (Ground) (3)
6Hex Nut, 10-32 (6)
6WP8203546 Whirlpool Terminal Block
7Gusset, Backguard (2)
9Bottom, Compartment
9Panel, Oven Bottom
10Channel, Support
10WPL 834649
11Screw, 10-24 x 1/2 (3)
11Bracket, Cooktop
12Liner, Auxiliary Oven
13Screw, 10-24 x 3/8 (2)
13Tube, Oven Vent
14Panel, Body-Side (Almond L.H.)
14Panel, Body-Side (Almond R.H.)
14Panel, Body-Side (White L.H.)
14Panel, Body-Side (White R.H.)
15Partition, Center
16Bumper, Cooktop (5)
17Leg Leveler (4)
18Unit, Broil
19Hanger, Broil Unit
204396923 Whirlpool Broil Pan Set Gray Porcelain
21Pan, Broiler
22WPL 865983
22WPL 877951
23Unit Bake (Screw, 10-24 x 1/2 (2))
23WP865940 Whirlpool Bake Element
24Strap, Ground
24Screw,10-24 x 1/2
