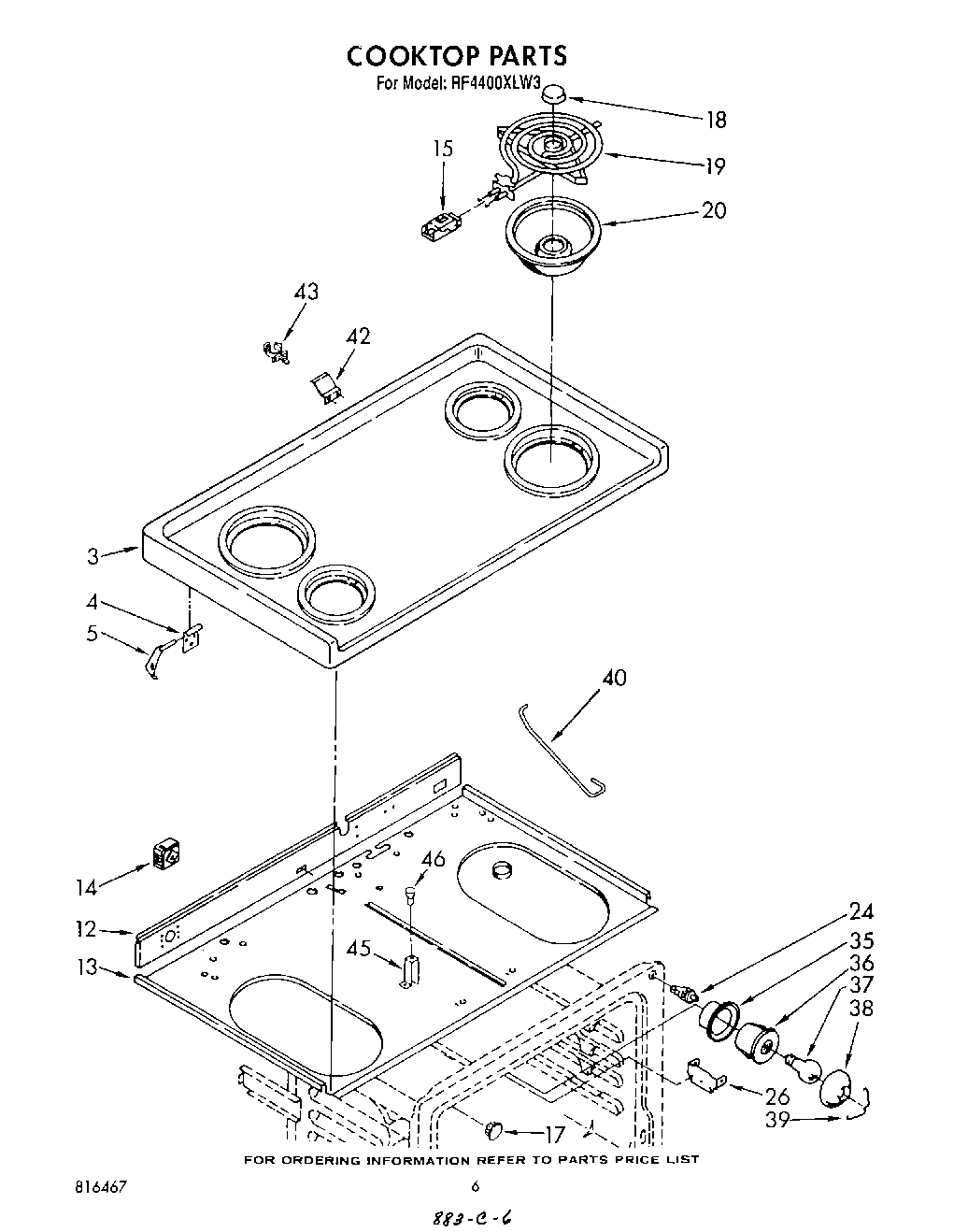

RF4400XLW3 04 – COOK TOP
Written by
in
RF4400XLW3 04 – COOK TOP
Products
Position
Product
4
Retainer, Hinge Pin (2)
5
Bracket, Hinge Pin ((LH))
5
Bracket, Hinge Pin ((RH))
12
Shield, Wiring
13
Washer
13
Panel, Subtop
13
WPL 877903
13
Nut, 10-24 (2)
14
Screw, 8-32 x 3/16 (2)
14
Switch, Cycling
15
BURNER RECEPTACLE KIT
15
WPL 877978
17
Button, Plug
18
WPL 868522
19
WP660533 Whirlpool Oven 8" Surface Element
19
WP660532 Whirlpool Oven Surface Element
20
DRIP BOWL 8" W/HOLE CHROME
20
WPW10196406 Whirlpool 6" Chrome Drip Bowl
24
Switch, Oven Light
26
Bracket, Thermo Bulb
35
Unit Bake (Screw, 10-24 x 1/2 (2))
35
Cup, Light
36
W10856866 Whirlpool Light Socket
37
RANGE ONLY 40W 120V APPL BULB
38
Lens, Light
39
Retainer, Lens
40
Rod, Cooktop Support
42
Bracket, Control Panel (2)
43
WPL 868136
44
Cooktop
44
Cooktop (Almond)
45
Screw, 10-24 x 1/2 (3)
45
WPL 866303
46
WPL 241263
←
