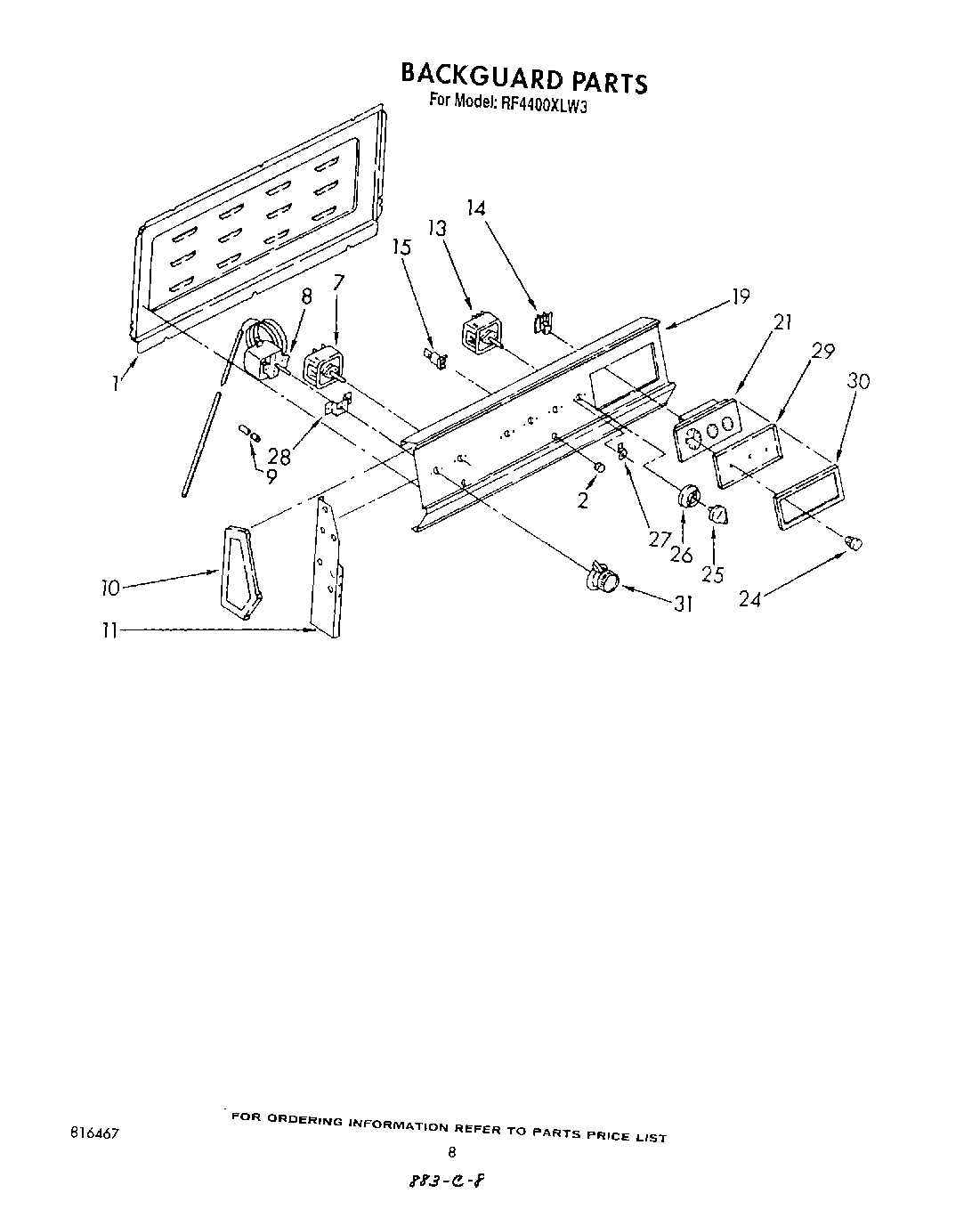

RF4400XLW3 05 – BACKGUARD , LITERATURE AND OPTIONAL

RF4400XLW3 05 – BACKGUARD , LITERATURE AND OPTIONAL

Written by

in

RF4400XLW3 05 – BACKGUARD , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT877791
	WPL LIT865621
	WPL LIT877952
	511873 Whirlpool Refrigerator Paint
	WPL LIT816467
1	Cover, Wiring
2	Lens, Pilot Light (2)
7	Switch, Oven Selector
8	Thermostat, Oven (Alternate)
8	Screw, 6-32 x 1/4 (2)
8	Thermostat, Oven (Alternate)
9	Sleeving, Insulating
10	Cap, End (L.H.)
10	Unit Bake (Screw, 10-24 x 1/2 (2))
10	Cap, End (R.H.)
11	Nut, Timer (4)
11	Support, Backguard (L.H.)
11	WPL 486525
11	Screw, 10-24 x 1/2 (3)
11	Support, Backguard (R.H.)
13	WP486579 Whirlpool Air Conditioner Screw
13	W10900107 Whirlpool Oven Surface Element Switch
14	Motor, Timer
15	Light, Pilot (125 V) (Surface Unit)
15	Light, Pilot (250 V) (Oven)
19	Panel, Backguard
21	Hex Nut, 10-32 (6)
21	Timer, Complete (Includes Illus. 14, 24, 29 and 30)
24	WPL 241383
25	Knob, Control (2)
26	W11194997 Whirlpool Knob Bezel
27	Screw, 8-32 x 3/8 (2)
27	Retainer, Bezel (4)
27	Screw 10-24 x 1/2
28	Screw, 8-32 x 3/16 (2)
28	WPL 866059
29	WPL 834763
30	WPL 834764
31	Wire (12 Ga. 150 c Black)
31	WPL 834470
31	WPL 868998
31	WPL 834469
31	Golden Harvest (Uncut)
31	WPL 868997
31	Touch-Up C
31	285006 Whirlpool Spray
31	Wire, 25“ Roll (White 14 GA.)
31	Wire, 25` Roll (Red 14 Ga.)
31	Wire, 25` Roll (Black 14 Ga.)
31	FOIL, ALUMINUM OVEN (18“ X 25 )
31	WPW10208653 Whirlpool Insulation
31	WPL 799832
31	350942 Whirlpool Spray Paint
31	Golden Harvest
31	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
31	Almond (Uncut)
31	WP72107 Whirlpool Touchup
31	799344 Whirlpool Refrigerator Paint
31	72017 Whirlpool Appliance Touch-Up Paint White
31	350956 Whirlpool Spray Assembly
31	72109 Whirlpool Dacor Avocado Touch-Up Paint
31	Paint, Touch-Up 1/2 Oz. (Coffee)
31	Grease
31	Leveler (Thinner) (2oz.)
31	Enamel, New Avocado (1 Qt. Uncut)
31	Enamel, Coffee (1 Qt. Uncut)
31	1
31	Wire (14 Ga. 200 c Brown)
31	18 Ga. 80~c Rating (Red)
31	Wire (14 Ga. 150 c Yellow)
31	Wire (14 Ga. 150 c Orange)
31	Wire (14 Ga. 150 c Green)
31	Wire (14 Ga. 150 c Brown)
31	Wire (14 Ga. 150 c Blue)
31	242831 Whirlpool Oven Wire
31	Paint, Spray 13 Oz. (Avocado)
31	paint, spray 13 oz. (coffee)
31	350930 Whirlpool White Spray Paint
