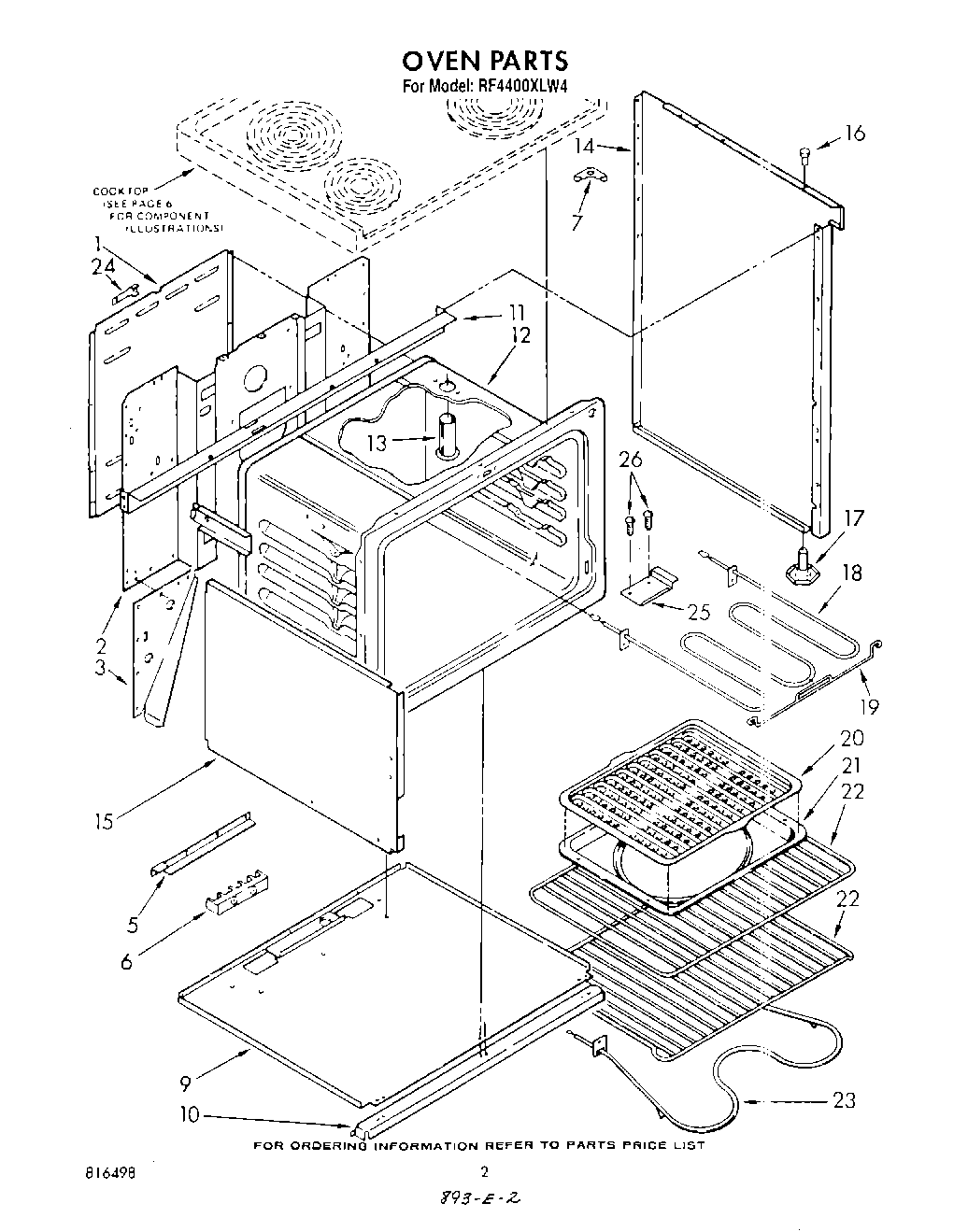

RF4400XLW4 02 – OVEN

Products

Position	Product
	WPL ARI123153A
1	Washer (3)
1	Cover, Back
2	Back, Range
3	Gusset, Rear (R.H.)
3	Gusset, Rear (L.H.)
5	Support, Gusset
6	WP8203546 Whirlpool Terminal Block
6	Hex Nut, 10-32 (6)
6	Washer (Ground) (3)
7	Gusset, Backguard (2)
9	Bottom, Compartment
9	Panel, Bottom
10	WPL 834649
10	Channel, Support
11	Bracket, Cooktop
11	Screw, 10-24 x 1/2 (3)
12	Liner, Auxiliary Oven
13	Tube, Oven Vent
13	Screw, 10-24 x 3/8 (2)
14	Panel, Body-Side (Almond R.H.)
14	Panel, Body-Side (White L.H.)
14	Panel, Body-Side (White R.H.)
14	Panel, Body-Side (Almond L.H.)
15	Partition, Center
16	Bumper, Cooktop (5)
17	Leg Leveler (4)
18	Unit, Broil
19	Hanger, Broil Unit
20	4396923 Whirlpool Broil Pan Set Gray Porcelain
21	Pan, Broiler
22	WPL 865983
22	WPL 877951
23	Unit Bake (Screw, 10-24 x 1/2 (2))
23	WP865940 Whirlpool Bake Element
24	Screw,10-24 x 1/2
24	Strap, Ground
25	Bracket, Anti-Tip (Left Side)
25	Bracket, Anti-Tip (Right Side)
26	screw, concrete (4)
