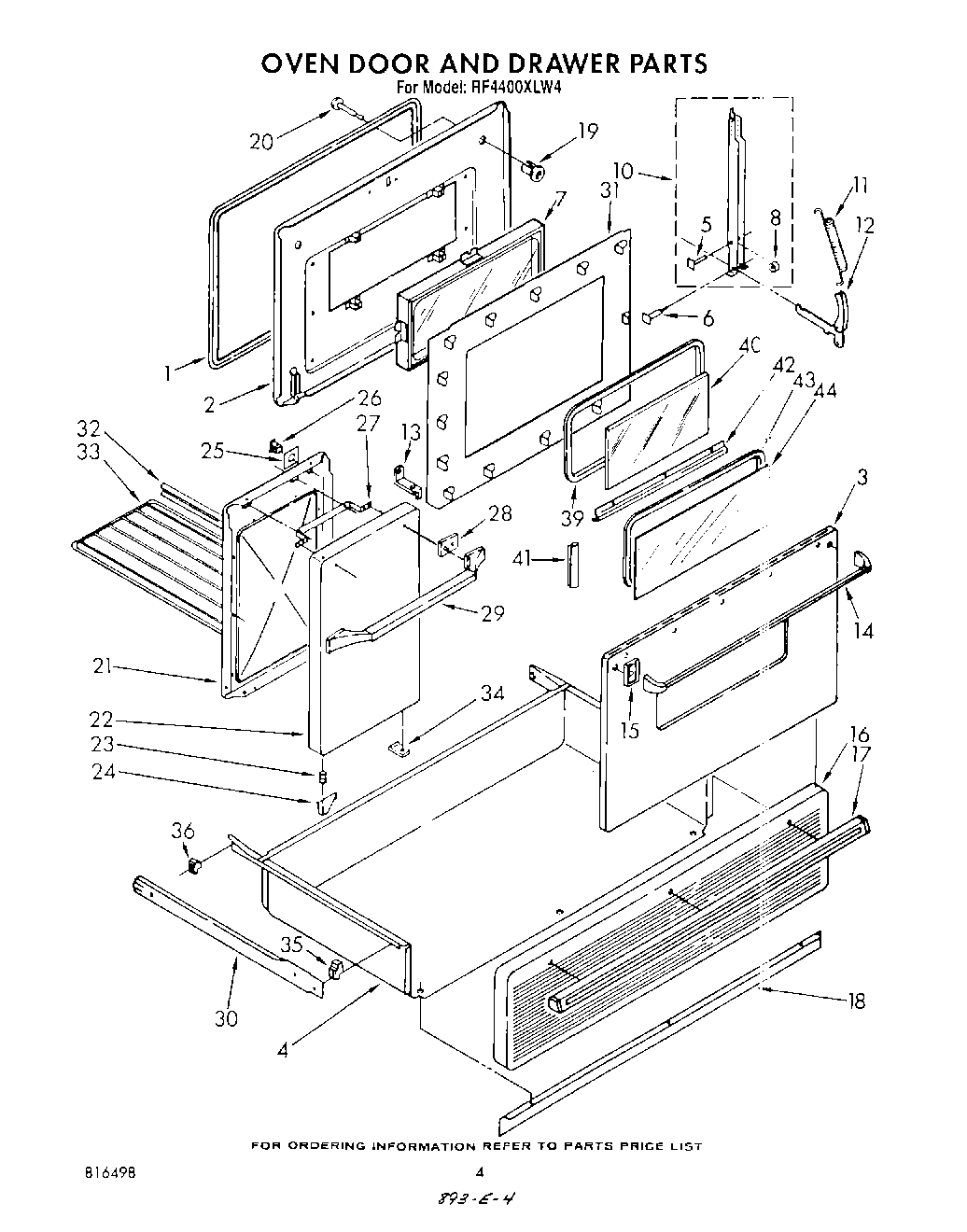

RF4400XLW4 03 – OVEN DOOR AND DRAWER

Products

Position	Product
	WPL ARI123154A
1	Gasket, Door (Alternate)
2	Liner, Oven Door
2	Washer (2)
3	WPL 595119
3	Panel, Oven Door (White)
3	Panel, Oven Door (Almond)
4	Drawer
5	Rivet (2)
6	Pin, Hinge (2)
7	Washer (4)
7	Window, Oven Door
7	Screw, 10-24 x 3/4 (4)
8	Roller, Stop (2)
10	Channel Assembly
10	Channel, L.H.
11	Spring, Door (2)
12	Arm Assembly (2)
13	Bracket, Strike
14	Handle, Door (Main)
14	Washer (3)
16	Panel, Drawer
16	Panel, Drawer (Almond)
17	Handle, Drawer
18	WP965173 Whirlpool Dishwasher Screw
18	WPL 866136
19	Collar, Light Switch Actuator
20	Plunger, Light Switch Actuator
21	Liner, Compartment Door
22	panel, oven door (auxiliary) (white)
22	panel, oven door (auxiliary) (almond)
22	Unit Bake (Screw, 10-24 x 1/2 (2))
23	Spacer, Hinge (2) Pin
24	hinge, oven door (auxiliary) (bottom)
24	Hinge, Oven Door (Auxiliary) (Top)
24	WP488627 Whirlpool Refrigerator Screw
25	W10080180 Whirlpool Nut
25	Plate, Catch
26	Latch, Door Magnetic
27	Spacer, Door
28	Spacer, Handle (2)
29	Screw, 10-24 x 5/8 (2)
29	Handle, Door
30	Rail, Drawer (Right Side)
30	Rail, Drawer (Left Side)
31	Screw 10-24 x 1/2
31	WPL 877841
32	WPL 868227
32	Screw, 10-24 x 1/2 (3)
33	WPL 865931
34	WPL 866300
35	WPL 834649
35	Guide, Drawer (Front)
36	WPL 877903
36	Guide, Drawer (Back)
39	Seal, Inner Glass
40	Glass, Inner
41	Retainer, Inner Glass
41	Washer
42	WPL 816183
43	“J“ Molding Outer Glass
44	WPL 816184
