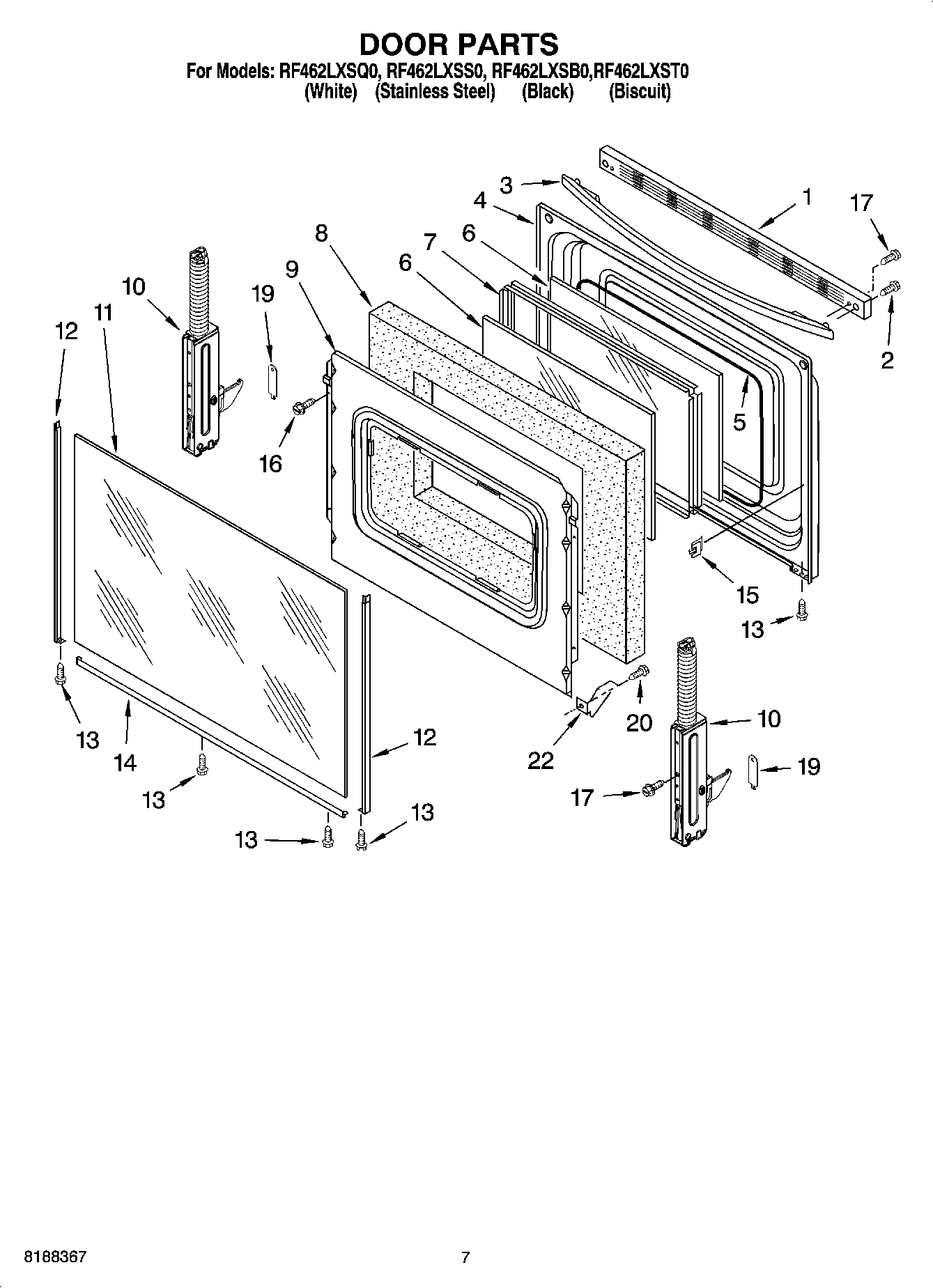

RF462LXSB0 05 – DOOR PARTS, OPTIONAL PARTS
Written by
in
RF462LXSB0 05 – DOOR PARTS, OPTIONAL PARTS
Products
Position
Product
WPL ARI161980A
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
WPL 9762951
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Wire (14 Ga. 200 c Brown)
3184020 Whirlpool Oven Wire
Grease
WP3196154 Whirlpool Screw Assembly
WPL ARI161979A
WPL ARI161978A
WPL ARI161977A
WPL ARI161976A
WPL ARI161975A
WPL ARI161974A
WPL ARI161973A
WPL 9762428
WPL 9762958
WPL 9762815
WPL ARI161981A
Clip, Ground Wire
WPL 799832
WPW10208653 Whirlpool Insulation
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
4392899 Whirlpool Biscuit Touch-Up Paint
Wire, 25` Roll (Red 14 Ga.)
W11447673 Whirlpool Range Tip Anchor
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
FOIL, ALUMINUM OVEN (18“ X 25 )
4392901 Whirlpool Biscuit Spray Paint
350942 Whirlpool Spray Paint
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
814381 Whirlpool Pin
1
Trim, Top (Black)
1
WPW10016370 Whirlpool Door Trim
1
Trim, Top (Biscuit)
1
Trim, Top (Black and S.Steel Models)
2
WP3196164 Whirlpool Screw
3
W10202219 Whirlpool Door Handle Assembly
3
WPW10202217 Whirlpool Door Handle
3
Handle, Door (Biscuit)
4
WP9761344 Whirlpool Door Liner
5
Seal, Window
6
WP8053948 Whirlpool Door Glass
7
WPW10316950 Whirlpool Window Frame
8
WPW10278991 Whirlpool Insulation
9
W11539580 Whirlpool Retainer
10
W10347466 Whirlpool Door Hinge
11
Glass, Outer (Stainless Steel)
11
WPW10118455 Whirlpool Door Glass Assembly
11
WPW10118454 Whirlpool Door Outer Glass White
12
WP8523173 Whirlpool Door Trim
12
WP8523172 Whirlpool Left Door Trim
12
WP8523167 Whirlpool Door Trim Assembly
12
WP8523166 Whirlpool Door Trim
12
W10761014 Whirlpool Right Door Trim
12
W10761018 Whirlpool Dishwasher Left Door Trim
13
W10491985 Whirlpool Screw
14
WP8523175 Whirlpool Door Trim Assembly
14
WP8523178 Whirlpool Door Trim
14
WP8523177 Whirlpool Door Trim Assembly
15
Clip, Glass (4)
16
WPW10031790 Whirlpool Screw
17
W10777162 Whirlpool Screw
19
9761517 Whirlpool Oven Clip Assembly
20
WP3196175 Whirlpool Screw
22
WP3196794 Whirlpool Glass Bracket
←
