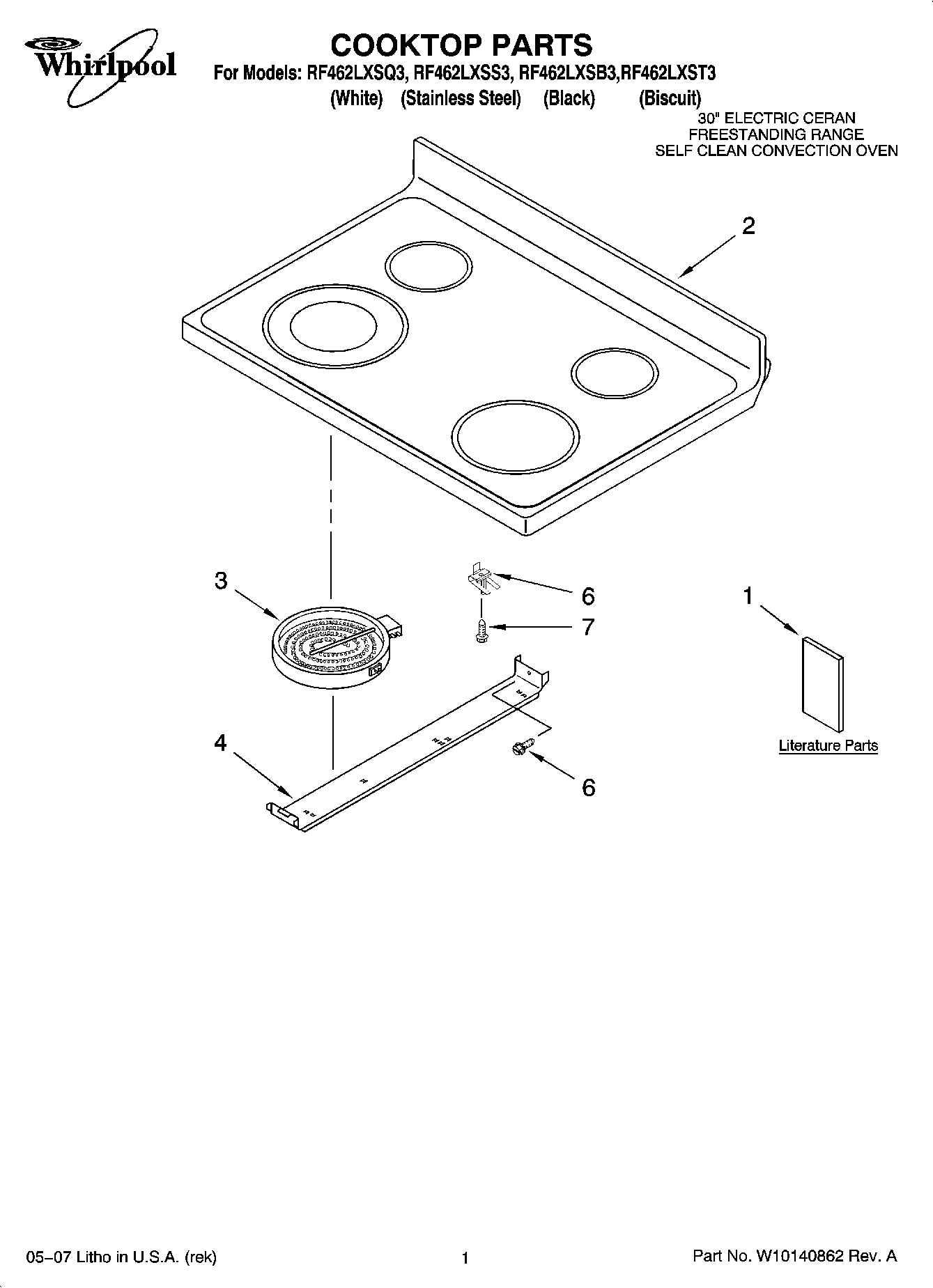

RF462LXSB3 01 – COOKTOP PARTS

Products

Position	Product
1	SAFER COOKING TIPS (ENGLISH
1	Owners Manual
1	Installation Instructions Template, Anti-Tip
1	Tech Sheet
1	Anti-Tip Template (English/French)
1	Anti-Tip Template (English/Spanish)
2	Cooktop (Biscuit)
2	Cooktop (Black)
2	Cooktop (White)
3	WP8523047 Whirlpool Surface Element Assembly
3	ELMNT-SURF
3	W11047722 Whirlpool Radiant Surface Element
4	Bracket, Element ((2))
5	WP3196557 Whirlpool Screw
6	Spring, Locator
7	WP3196170 Whirlpool Screw
