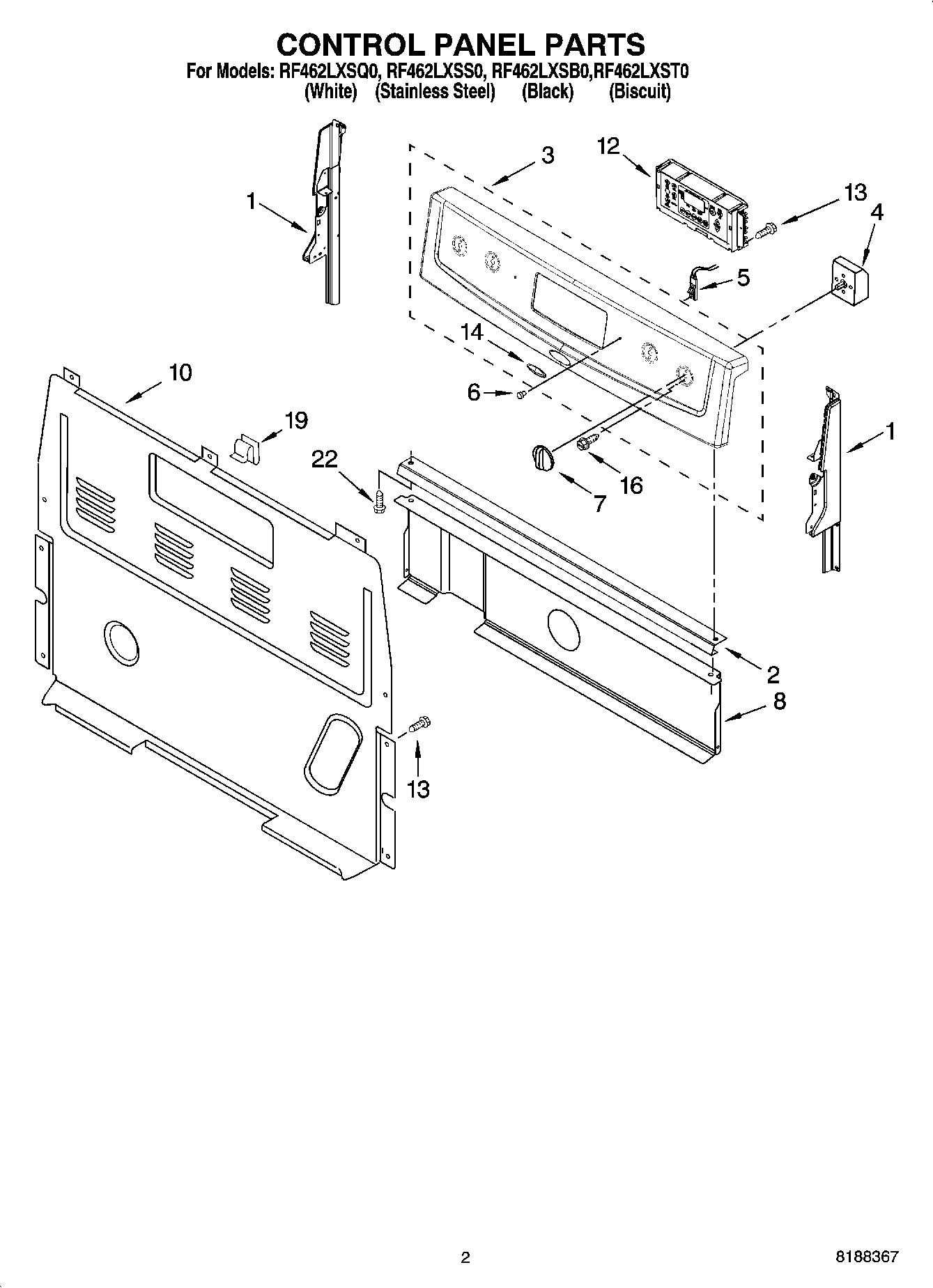

RF462LXSQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1W11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
2Bracket, Console
3Panel, Control (White)
3Panel, Control (Stainless Steel)
3Panel, Control (Black)
3Panel, Control (Biscuit)
4WP3149404 Whirlpool Oven Surface Element Switch
4WP9758060 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP9761963 Whirlpool Knob Assembly
7WP9761962 Whirlpool Range Stove Burner Control Knob
7WP9761964 Whirlpool Knob
8Shield, Heat
10WP8272473 Whirlpool Rear Cover
12Control, Range (Black)
12Control, Range (Biscuit)
12Control, Range (White)
13SCREW
14Nameplate
16WP3400882 Whirlpool Screw
19WP8273564 Whirlpool Clip
223196166 Whirlpool Screw
22WP3400832 Whirlpool Screw
