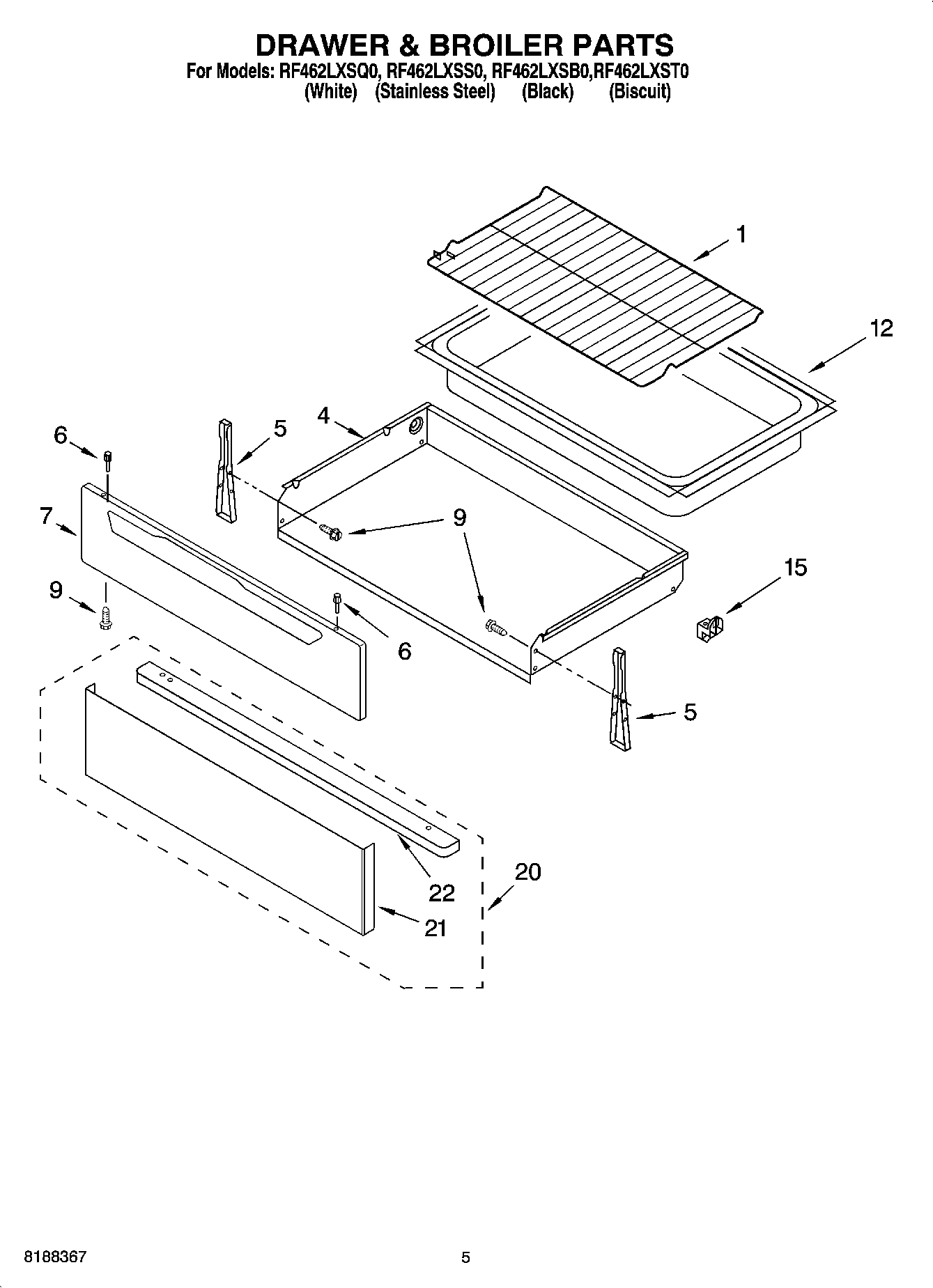

RF462LXSQ0 04 – DRAWER & BROILER PARTS

Written by

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
4	Drawer, Storage
5	W10838990 Whirlpool Mounting Bracket
6	WP3196814 Whirlpool Rivet
7	W11230488 Whirlpool Drawer Panel
7	W11219377 Whirlpool Drawer Panel
9	WP3400832 Whirlpool Screw
12	Liner, Drawer
15	WP8053334 Whirlpool Drawer Glide
20	Stainless Model Only
21	Panel, Stainless
22	Handle
