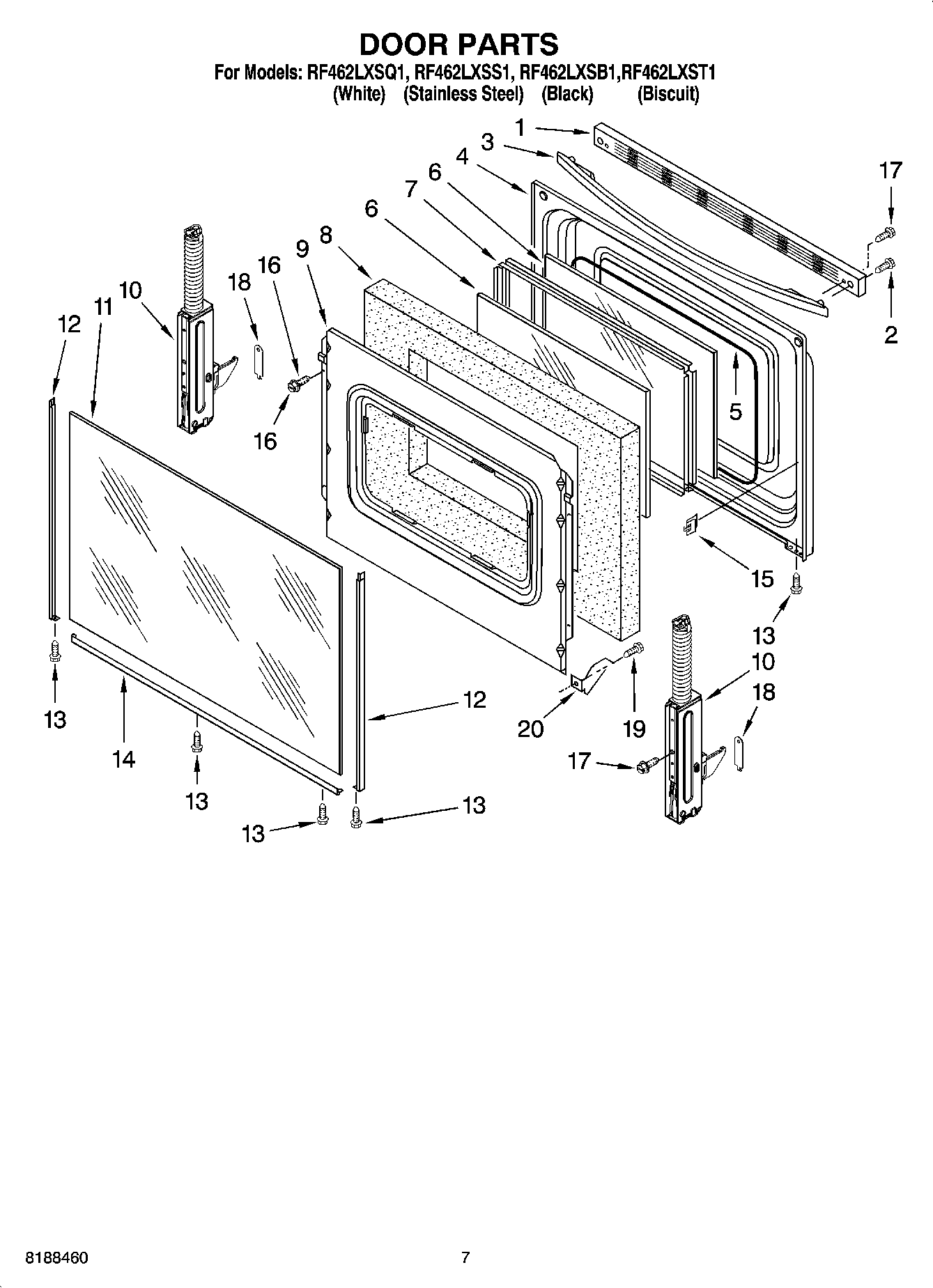

RF462LXSQ1 05 – DOOR PARTS, OPTIONAL PARTS
Written by
in
RF462LXSQ1 05 – DOOR PARTS, OPTIONAL PARTS
Products
Position
Product
WPL ARI123185A
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
WPL 9762951
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Wire (12 Ga. 150 c Black)
3184020 Whirlpool Oven Wire
Grease
WPL ARI123184A
WPL ARI123183A
WPL ARI123182A
WPL ARI123181A
WPL ARI123180A
WPL ARI123179A
WPL W10114894
WPL W10115055
WPL 9762428
WPL ARI123186A
WP3196154 Whirlpool Screw Assembly
Clip, Ground Wire
350930 Whirlpool White Spray Paint
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
Wire, 25` Roll (Red 14 Ga.)
4392899 Whirlpool Biscuit Touch-Up Paint
W11447673 Whirlpool Range Tip Anchor
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPW10208653 Whirlpool Insulation
511873 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
285006 Whirlpool Spray
799344 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
4392901 Whirlpool Biscuit Spray Paint
FOIL, ALUMINUM OVEN (18“ X 25 )
1
Trim, Top (Biscuit)
1
WPW10016370 Whirlpool Door Trim
1
Trim, Top (Black)
1
Trim, Top (Black and S.Steel Models)
2
WP3196164 Whirlpool Screw
3
W10202219 Whirlpool Door Handle Assembly
3
WPW10202217 Whirlpool Door Handle
3
Handle, Door (Biscuit)
4
WP9761344 Whirlpool Door Liner
5
Seal, Window
6
WP8053948 Whirlpool Door Glass
7
WPW10316950 Whirlpool Window Frame
8
WPW10278991 Whirlpool Insulation
9
W11539580 Whirlpool Retainer
10
W10347464 Whirlpool Door Hinge
10
W10347466 Whirlpool Door Hinge
11
WPW10118454 Whirlpool Door Outer Glass White
11
Glass, Outer Door (Biscuit)
11
WPW10118455 Whirlpool Door Glass Assembly
12
WP8523167 Whirlpool Door Trim Assembly
12
WP8523173 Whirlpool Door Trim
12
WP8523172 Whirlpool Left Door Trim
12
WP8523166 Whirlpool Door Trim
12
W10761014 Whirlpool Right Door Trim
12
W10761018 Whirlpool Dishwasher Left Door Trim
13
W10491985 Whirlpool Screw
14
WP8523180 Whirlpool Door Trim Assembly
14
WP8523178 Whirlpool Door Trim
14
WP8523177 Whirlpool Door Trim Assembly
14
WP8523175 Whirlpool Door Trim Assembly
15
Clip, Glass (4)
16
WPW10031790 Whirlpool Screw
17
W10777162 Whirlpool Screw
18
9761517 Whirlpool Oven Clip Assembly
19
WP3196175 Whirlpool Screw
20
WP3196794 Whirlpool Glass Bracket
←
