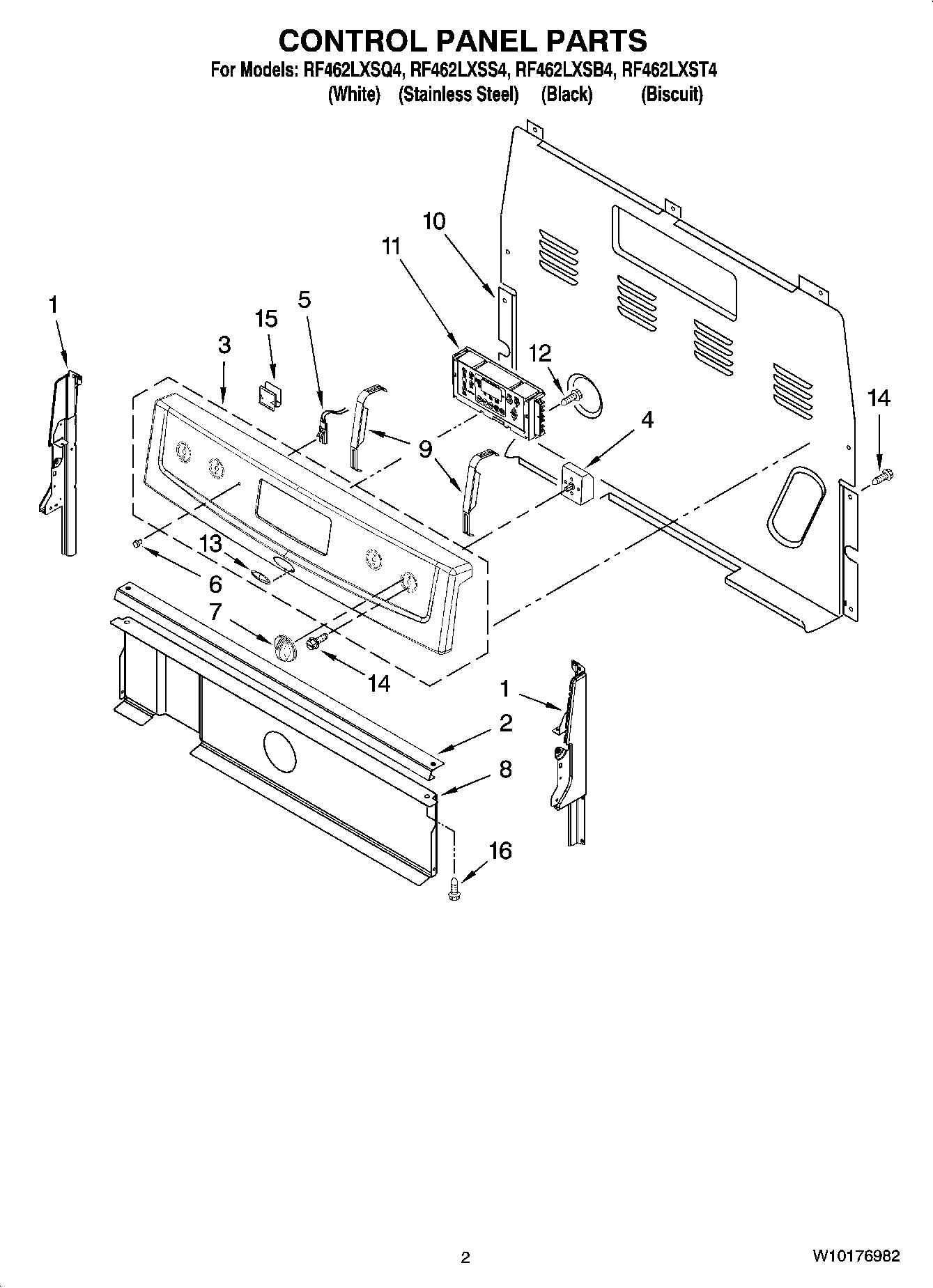

RF462LXSQ4 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11230612 Whirlpool Panel End Cap
1	Endcap (Biscuit Left Hand)
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
2	Bracket, Console
3	Panel, Control (White)
3	Panel, Control (Biscuit)
3	Panel, Control (Black)
3	Panel, Control (Stainless Steel)
4	WP3149404 Whirlpool Oven Surface Element Switch
4	WP9758060 Whirlpool Oven Infinite Switch
4	WP3149400 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	WP9761963 Whirlpool Knob Assembly
7	WP9761964 Whirlpool Knob
7	WP9761962 Whirlpool Range Stove Burner Control Knob
8	W10134247 Whirlpool Heat Shield
9	BRACKET, MOUNTING EOC
10	WP8272473 Whirlpool Rear Cover
11	W10840298 Whirlpool Control Assembly
12	SCREW
13	Nameplate
14	WP3400882 Whirlpool Screw
15	WP8273564 Whirlpool Clip
16	WPL 8281194
16	3196166 Whirlpool Screw
16	WP3400832 Whirlpool Screw
