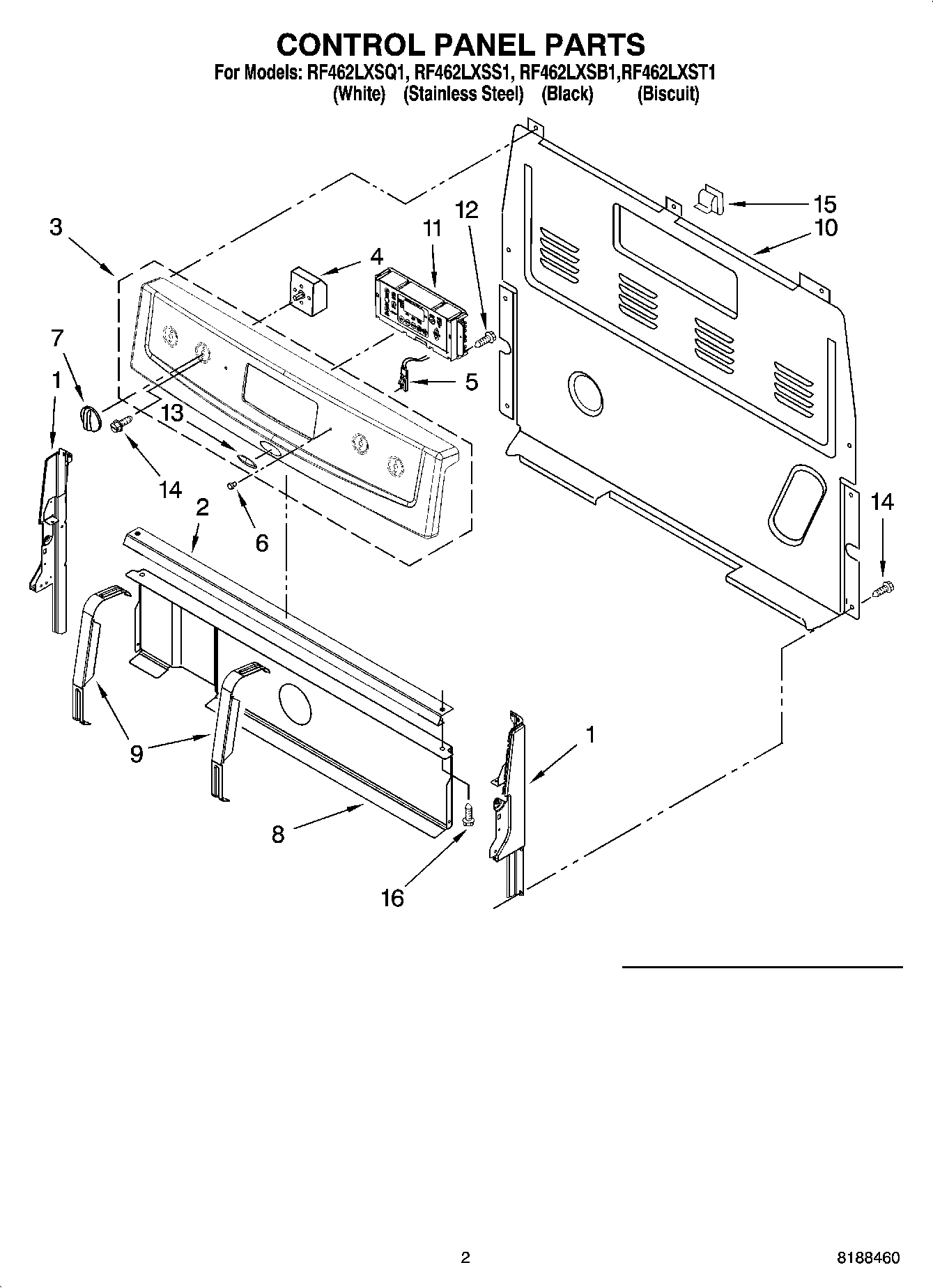

RF462LXSS1 02 – CONTROL PANEL PARTSadmin2025-04-26T12:34:49+00:00RF462LXSS1 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | W11230612 Whirlpool Panel End Cap |
| 1 | Endcap (Biscuit Left Hand) |
| 1 | W11219370 Whirlpool Endcap Panel |
| 1 | W11219365 Whirlpool Panel Endcap |
| 1 | W11219665 Whirlpool Panel Endcap |
| 1 | W11219664 Whirlpool Endcap Panel |
| 2 | Bracket, Console |
| 3 | Panel, Control (White) |
| 3 | Panel, Control (Biscuit) |
| 3 | Panel, Control (Black) |
| 3 | Panel, Control (Stainless Steel) |
| 4 | WP9758060 Whirlpool Oven Infinite Switch |
| 4 | WP3149404 Whirlpool Oven Surface Element Switch |
| 5 | WP8523265 Whirlpool Indicator Light |
| 6 | WP3196068 Whirlpool Light Lens |
| 7 | WP9761963 Whirlpool Knob Assembly |
| 7 | WP9761964 Whirlpool Knob |
| 7 | WP9761962 Whirlpool Range Stove Burner Control Knob |
| 8 | Shield, Heat |
| 9 | BRACKET, MOUNTING EOC |
| 10 | WP8272473 Whirlpool Rear Cover |
| 11 | Control, Range (Biscuit) |
| 11 | Control, Range (White) |
| 11 | Control, Range (Black) |
| 12 | SCREW |
| 13 | Nameplate |
| 14 | WP3400882 Whirlpool Screw |
| 15 | WP8273564 Whirlpool Clip |
| 16 | 3196166 Whirlpool Screw |
| 16 | WP3400832 Whirlpool Screw |
