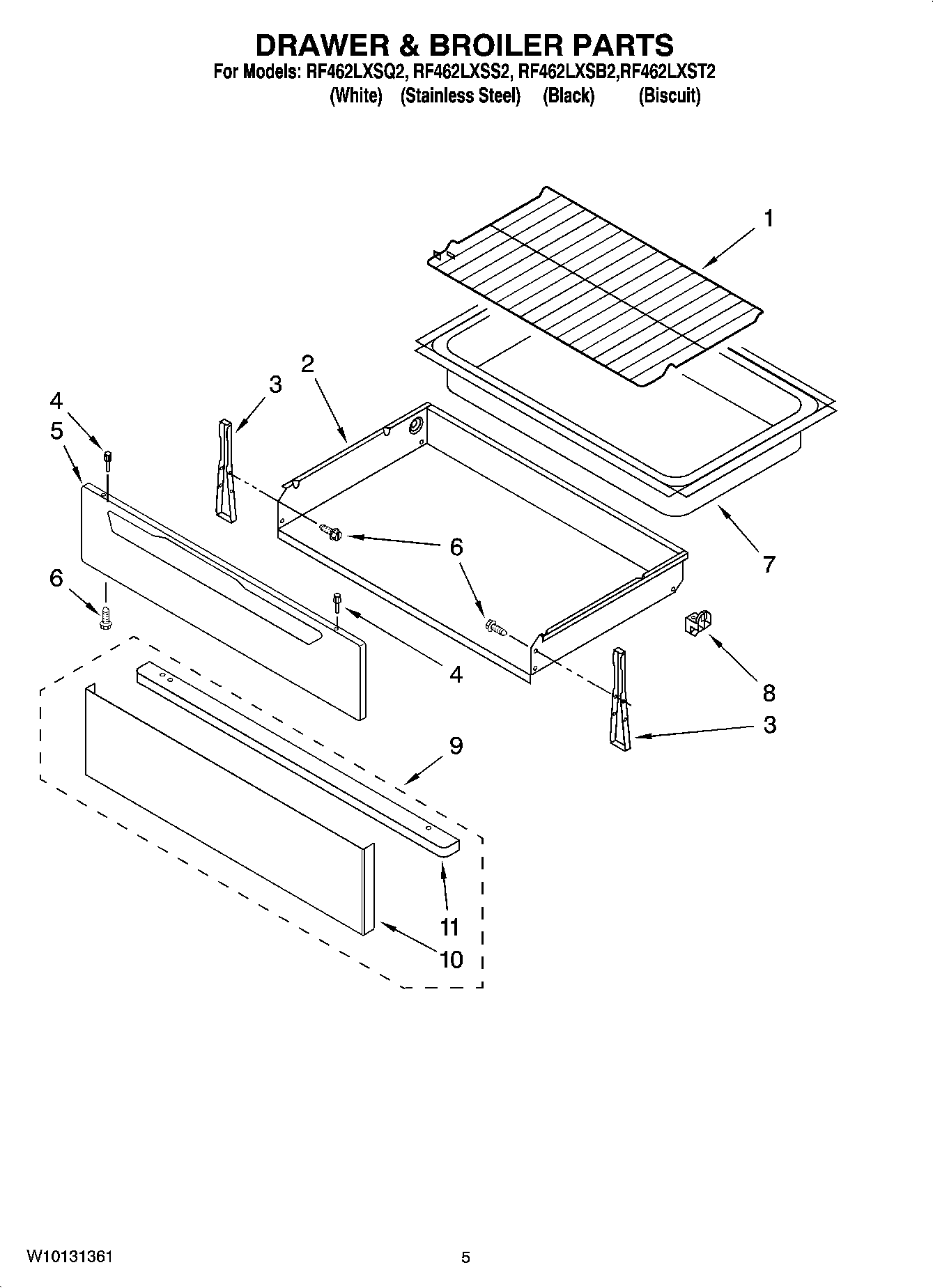

RF462LXSS2 04 – DRAWER & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2Drawer, Storage
3W10838990 Whirlpool Mounting Bracket
43196815 Whirlpool Oven Rivet
4WP3196813 Whirlpool Rivet
4WP3196814 Whirlpool Rivet
5W11230476 Whirlpool Drawer Panel
5W11230488 Whirlpool Drawer Panel
5W11219377 Whirlpool Drawer Panel
6WP3400832 Whirlpool Screw
7Liner, Drawer
8WP8053334 Whirlpool Drawer Glide
9Stainless Model Only
10Panel, Stainless
11Handle
