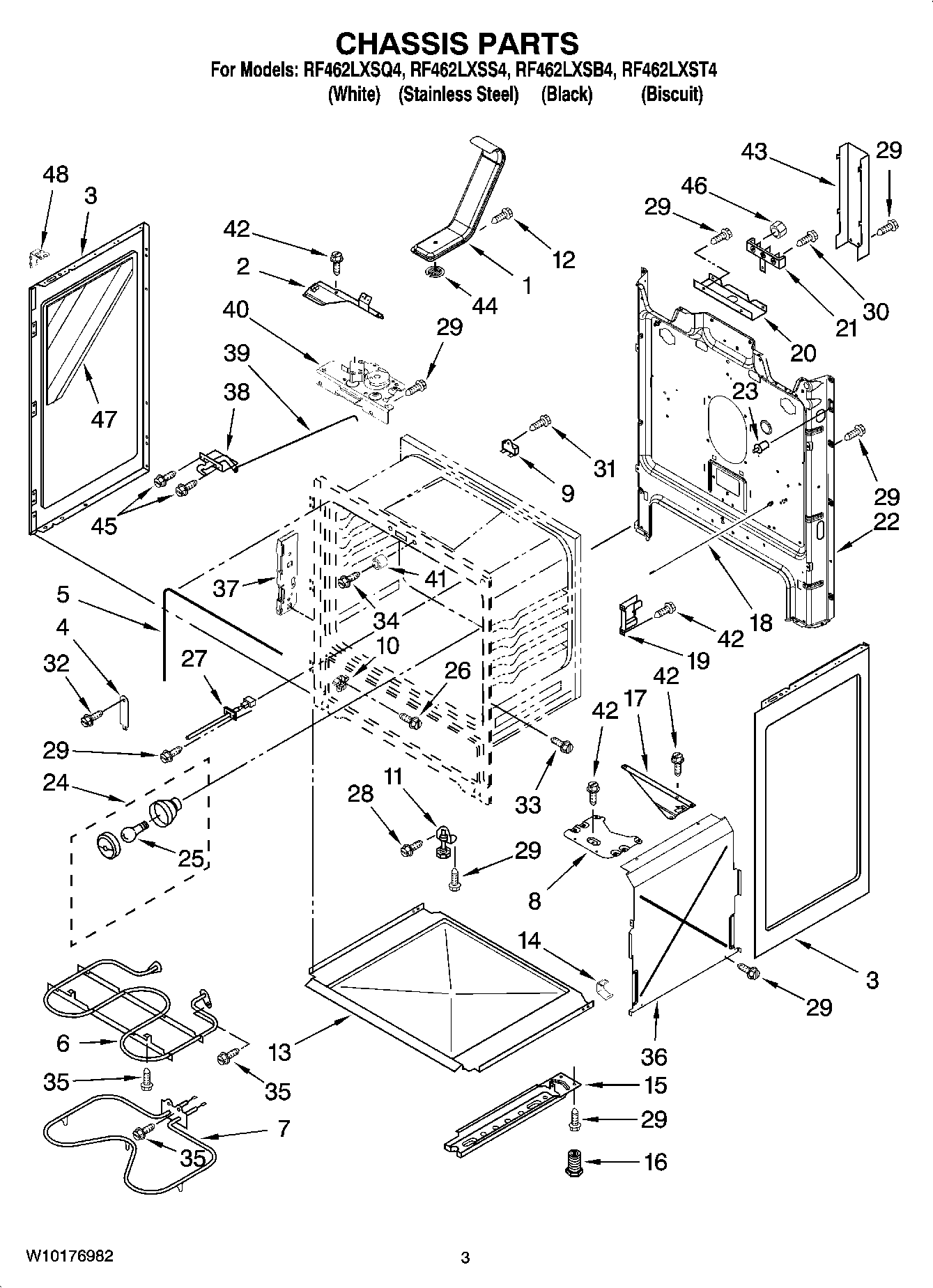

RF462LXSS4 03 – CHASSIS PARTS

Products

PositionProduct
1WPW10134285 Whirlpool Vent Tube
2Support, Corner LR
3W10162246 Whirlpool Side Panel
3W11730303 Whirlpool Side Panel
3WPW10575396 Whirlpool Side Panel
49761517 Whirlpool Oven Clip Assembly
5W11542153 Whirlpool Door Gasket
6W10856603 Whirlpool Broil Element
7WPW10308477 Whirlpool Bake Element
8Support, Front (2)
9WP3196548 Whirlpool Thermal Fuse
10WPW10114344 Whirlpool Drawer Glide
11WP3196037 Whirlpool Leveling Foot
12WP489491 Whirlpool Refrigerator Screw
13WP8054068 Whirlpool Retainer
14Clip, Panel (6)
15WPW10306546 Whirlpool Base Rail
16WPW10058460 Whirlpool Appliance Levelling Leg
17Support, Corner RR
189757239 Whirlpool Oven Door Rod
19W10404688 Whirlpool Bracket Support
20W11728255 Whirlpool Service Bracket
21WP9761958 Whirlpool Range Terminal Block
22Back, Main
23WP9757262 Whirlpool Light Switch
24W11594027 Whirlpool Range Oven Light Socket
25RANGE ONLY 40W 120V APPL BULB
26WP3196175 Whirlpool Screw
27WPW10181986 Whirlpool Oven Sensor
28Screw
29SCREW
30WP3400016 Whirlpool Screw Assembly
313196172 Whirlpool Oven Screw
32W10777162 Whirlpool Screw
33WPW10067840 Whirlpool Screw
34WP3400832 Whirlpool Screw
35WP3196174 Whirlpool Screw
36W10450380 Whirlpool Retainer
37W10647259 Whirlpool Hinge Receiver
38WP9761013 Whirlpool Door Latch
39Rod, Latch
40WPW10107820 Whirlpool Door Latch
41W10877054 Whirlpool Spacer Assembly
42WP3196557 Whirlpool Screw
43WPW10326122 Whirlpool Black Cover
449761301 Whirlpool Oven Screen
45W11169708 Whirlpool Screw
46WP112432 Whirlpool Nut Assembly
47Insulation
48WP8272612 Whirlpool Insulation
488053915 Whirlpool Oven Insulation
48Clip, Mounting
48WPW10208653 Whirlpool Insulation
48Insulation
