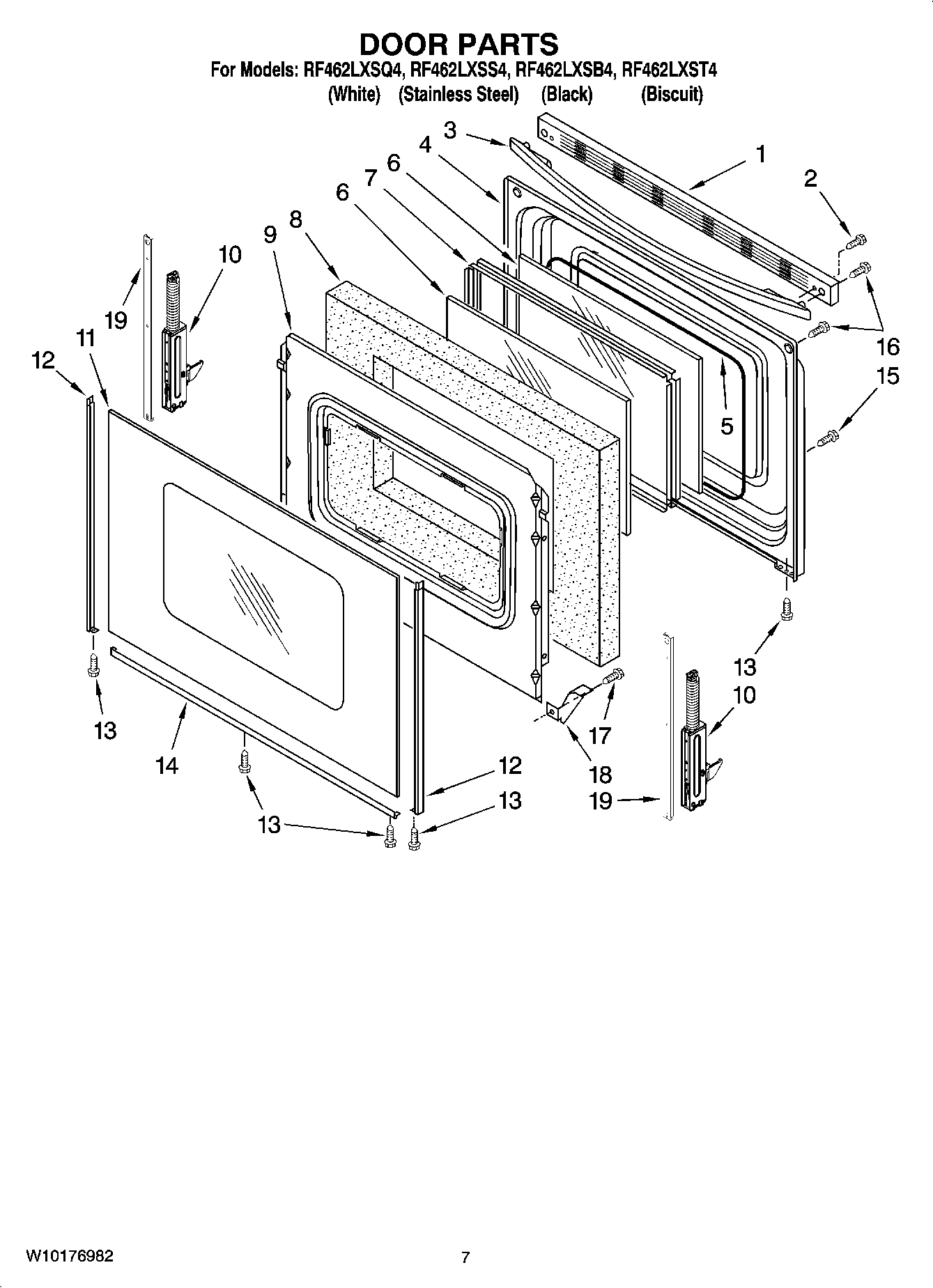

RF462LXSS4 05 – DOOR PARTS, OPTIONAL PARTS

RF462LXSS4 05 – DOOR PARTS, OPTIONAL PARTS

RF462LXSS4 05 – DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL W10111766
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Grease
WPW10144763 Whirlpool Tie Wire
WPL ARI162056A
WPL ARI162055A
WPL ARI162054A
WPL ARI162053A
WPL ARI162052A
WPL ARI162051A
WPL ARI162050A
WPL ARI162049A
WPL W10111767
W11172524 Whirlpool Wire Harness
WPL W10111768
WP3196154 Whirlpool Screw Assembly
Clip, Ground Wire
FOIL, ALUMINUM OVEN (18“ X 25 )
511873 Whirlpool Refrigerator Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPL 799832
4392899 Whirlpool Biscuit Touch-Up Paint
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
WPW10208653 Whirlpool Insulation
W11447673 Whirlpool Range Tip Anchor
4392901 Whirlpool Biscuit Spray Paint
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
1Trim, Top (Biscuit)
1Trim, Top (Black)
1WPW10016370 Whirlpool Door Trim
1Trim, Top (Black and S.Steel Models)
2WP3196164 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
3W10202219 Whirlpool Door Handle Assembly
3Handle, Door (Biscuit)
4WP9761344 Whirlpool Door Liner
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347466 Whirlpool Door Hinge
10W10347464 Whirlpool Door Hinge
11Glass, Outer Door (Biscuit)
11WPW10118454 Whirlpool Door Outer Glass White
11WPW10118455 Whirlpool Door Glass Assembly
11WPW10330077 Whirlpool Door Glass
12WP8523167 Whirlpool Door Trim Assembly
12WP8523173 Whirlpool Door Trim
12WP8523166 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
12W10761014 Whirlpool Right Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
13W10491985 Whirlpool Screw
14WP8523177 Whirlpool Door Trim Assembly
14WP8523178 Whirlpool Door Trim
14WP8523180 Whirlpool Door Trim Assembly
14WP8523175 Whirlpool Door Trim Assembly
15WPW10031790 Whirlpool Screw
16W10777162 Whirlpool Screw
17WP3196175 Whirlpool Screw
18WP3196794 Whirlpool Glass Bracket
19W11502236 Whirlpool Door Trim
