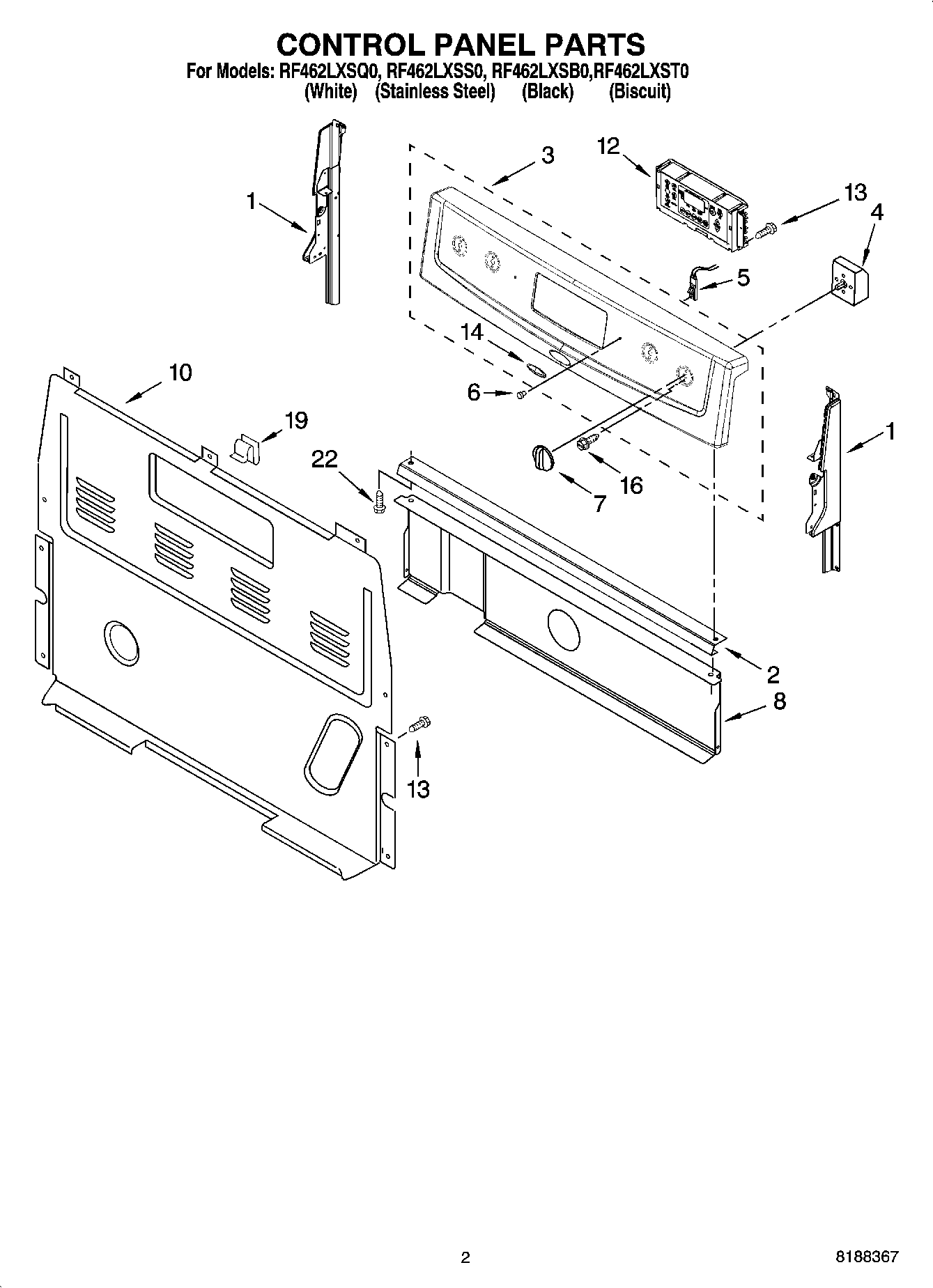

RF462LXST0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
2	Bracket, Console
3	Panel, Control (White)
3	Panel, Control (Stainless Steel)
3	Panel, Control (Black)
3	Panel, Control (Biscuit)
4	WP3149404 Whirlpool Oven Surface Element Switch
4	WP9758060 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	WP9761963 Whirlpool Knob Assembly
7	WP9761962 Whirlpool Range Stove Burner Control Knob
7	WP9761964 Whirlpool Knob
8	Shield, Heat
10	WP8272473 Whirlpool Rear Cover
12	Control, Range (Black)
12	Control, Range (Biscuit)
12	Control, Range (White)
13	SCREW
14	Nameplate
16	WP3400882 Whirlpool Screw
19	WP8273564 Whirlpool Clip
22	3196166 Whirlpool Screw
22	WP3400832 Whirlpool Screw
