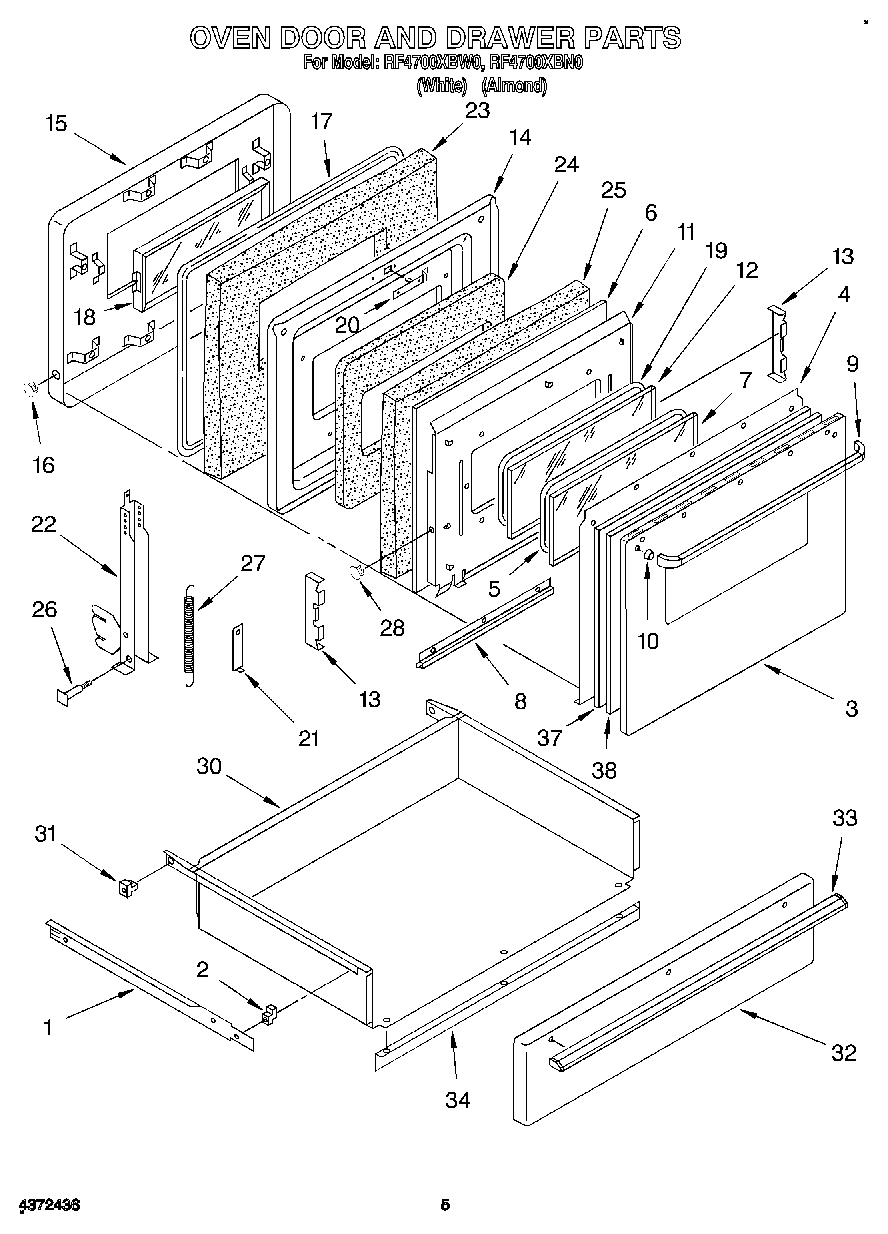

RF4700XBN0 03 – OVEN DOOR AND DRAWER
Written by
in
RF4700XBN0 03 – OVEN DOOR AND DRAWER
Products
Position
Product
1
Rail, Drawer (R.H.)
1
Rail, Drawer (L.H.)
2
WPL 834649
2
Guide, Front (2)
3
panel, oven door (main) (white)
3
Panel, Oven Door (Main) (Almond)
4
Panel, Insulator
5
“J“ Molding Outer Glass
6
Foil, Aluminum
7
Glass, Outer
8
WP486579 Whirlpool Air Conditioner Screw
8
Retainer, Glass (2)
9
Handle, Oven Door
10
Screw, 10-24 x 1 1/4 (2)
10
Washer, Padded (2)
10
Spacer, Handle (2)
11
Panel, Air Wash
12
Glass, Inner
13
Retainer, Glass
14
Liner, Oven Door
15
Baffle Weldment
16
Plug Button 3/16“ (2)
17
Seal, Oven Door
18
Window Assembly
19
Seal, Window
20
Strike
20
Washer
20
Screw 10-24 x 1/2
21
Retainer, Door
22
Screw
22
Washer (2)
22
Assy, Door Hinge (L.H.)
22
Assy, Door Hinge (R.H.)
23
Insulation, Baffle
24
Insulation, Liner
25
Insulation, Airwash
26
Pin, Hinge (2)
27
Spring, Door (2)
28
Plug Button
30
Drawer
31
Guide, Drawer (Back)
32
Panel, Drawer
32
Screw, 10-24 x 1/2 (3)
32
Panel, Drawer (Almond)
33
Handle, Drawer
33
WPL 877903
34
WP965173 Whirlpool Dishwasher Screw
34
WPL 866136
37
WPL 4372061
38
WPL 4372032
←
