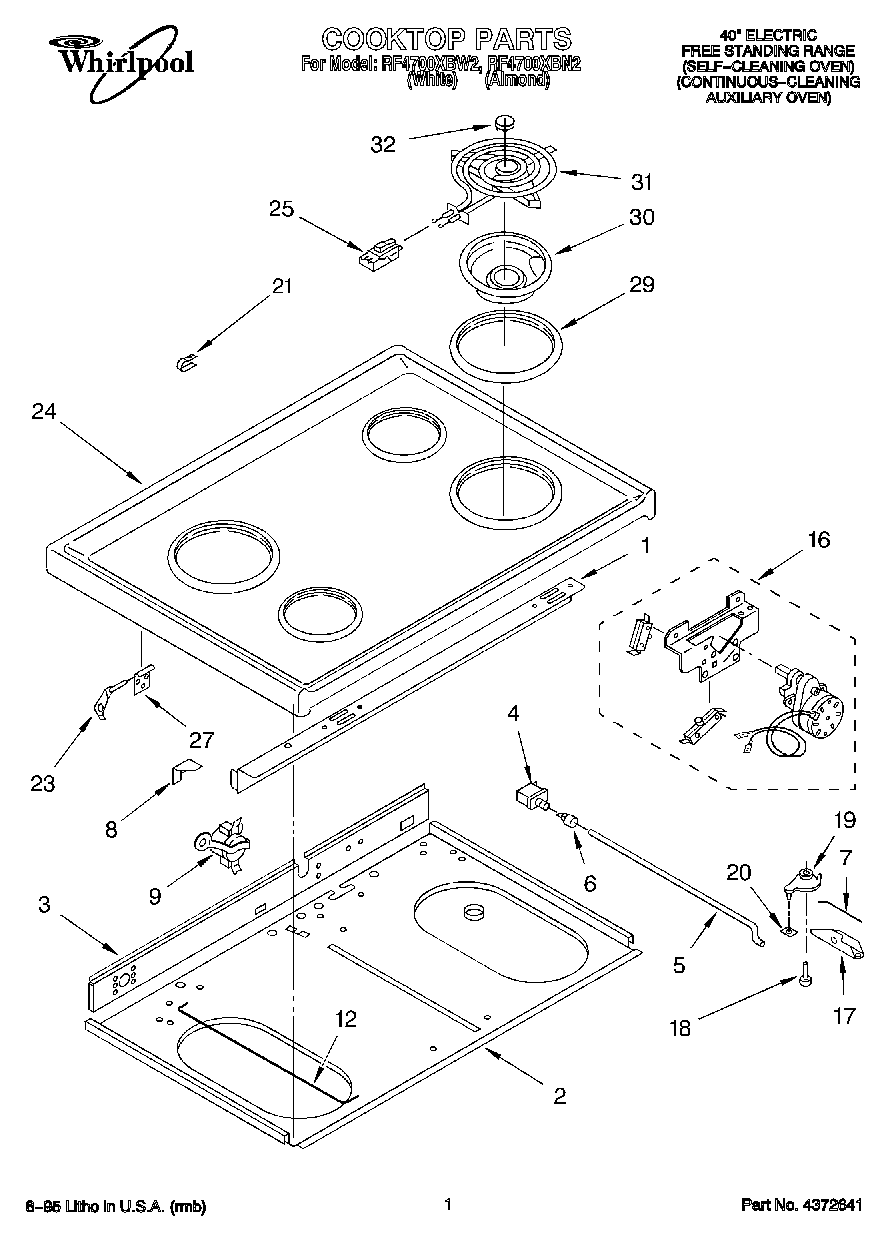

RF4700XBN2 01 – COOKTOP

Products

Position	Product
1	Bracket, Cooktop
2	Panel, Sub Top
3	Shield, Wiring
4	WP8283288 Whirlpool Door Switch
5	Rod, Push
6	Cap, Push Rod
7	Bar, Tie
8	Bracket, Filler
9	Thermostat, Safety
12	Rod, Support
16	Motor, Door Latch (Complete)
16	Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2))
17	Screw 10-24 x 1/2
17	Washer (2)
17	Base, Latch Motor
18	Stud, Latch
19	Lever, Lock
20	Pushnut, 1/4
21	WPL 868136
23	Bracket, Hinge Pin ((RH))
23	Bracket, Hinge Pin ((LH))
24	Cooktop (Almond)
24	Cooktop
25	BURNER RECEPTACLE KIT
27	Screw, 10-24 x 1/2 (3)
27	Retainer, Hinge Pin (2)
29	Ring, Trim (6“ (2))
29	Ring, Trim (8“ (2))
30	Pan, Surface (6“ (2))
30	Pan, Surface (8“ (2))
31	WP660532 Whirlpool Oven Surface Element
31	WP660533 Whirlpool Oven 8" Surface Element
32	Medallion
