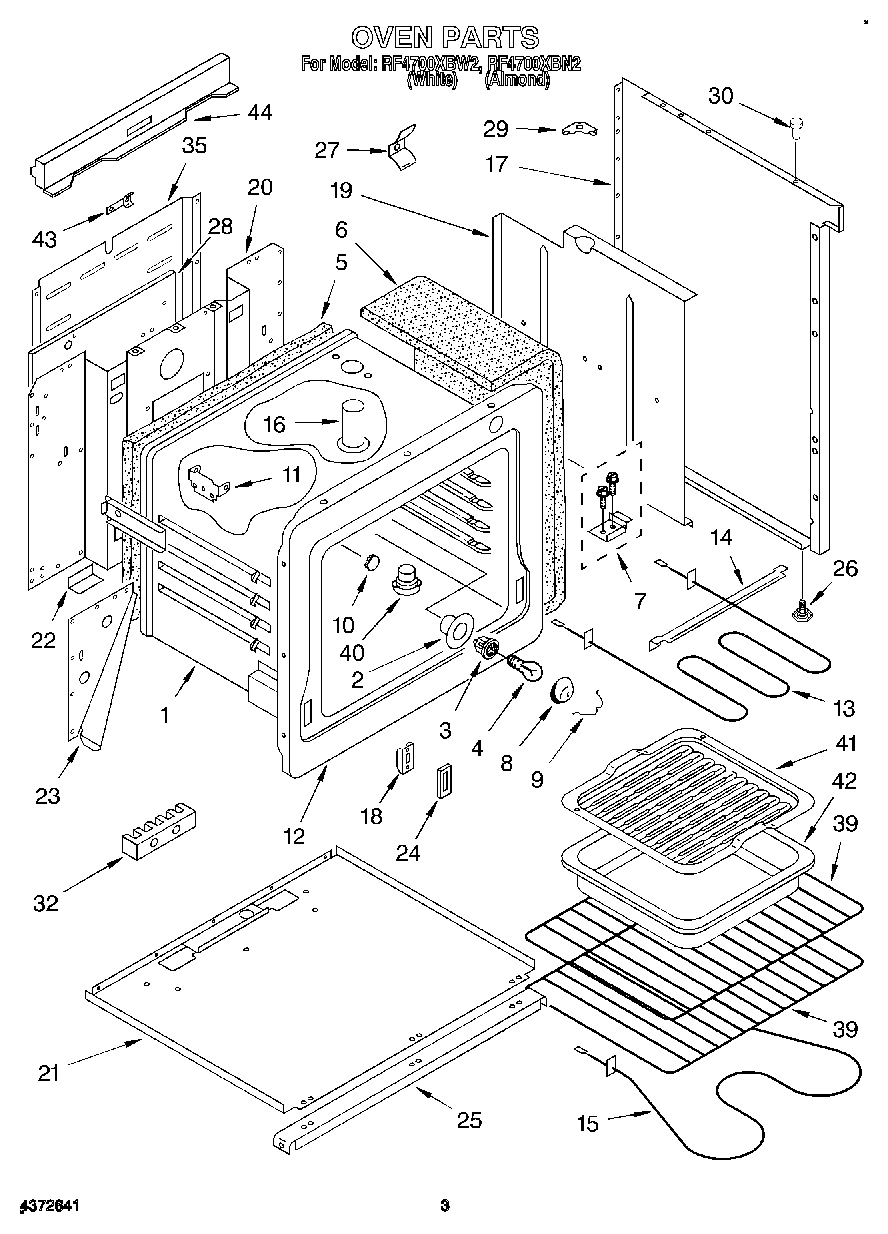

RF4700XBN2 02 – OVEN

RF4700XBN2 02 – OVEN

Written by

in

RF4700XBN2 02 – OVEN

Products

PositionProduct
1Oven Body
2Housing, Light
4RANGE ONLY 40W 120V APPL BULB
5Insulation, Oven Back
6Insulation, Oven Wrap
7Kit, Anti-Tip
8Lens, Light
9W10856866 Whirlpool Light Socket
10Plug, Button
10Button, Plug 3/4“ (2)
11Bracket, Thermobulb
12Frame, Front
13Element, Broil
14Support, Broiler Element
15Element, Bake
16Vent Tube
16Unit Bake (Screw, 10-24 x 1/2 (2))
17Panel, Body-Side (White L.H.)
17Panel, Body-Side (White R.H.)
17Panel, Body-Side (Almond R.H.)
17Panel, Body-Side (Almond L.H.)
18Channel, Hinge (2)
19Retainer, Insulation
20Back, Range
21Panel, Bottom
22Support, Gusset
23Gusset, Rear (R.H.)
23Gusset, Rear (L.H.)
24Cover, Hinge
25Channel, Support
26Screw, Leveling (4)
27Spring, Oven
28Panel, Back
29Gusset, Backguard (2)
30Bumper, Cooktop (5)
32Hex Nut, 10-32 (6)
32WPL 834649
32WP8203546 Whirlpool Terminal Block
35Screw, 10-24 x 1/2 (3)
35Cover, Back
39WPL 4372632
40Tube, Adaptor
40Offset
41Grid, Broiler Pan
42Pan, Broiler
43Strap, Ground
43Screw,10-24 x 1/2
44WPL 4372636
