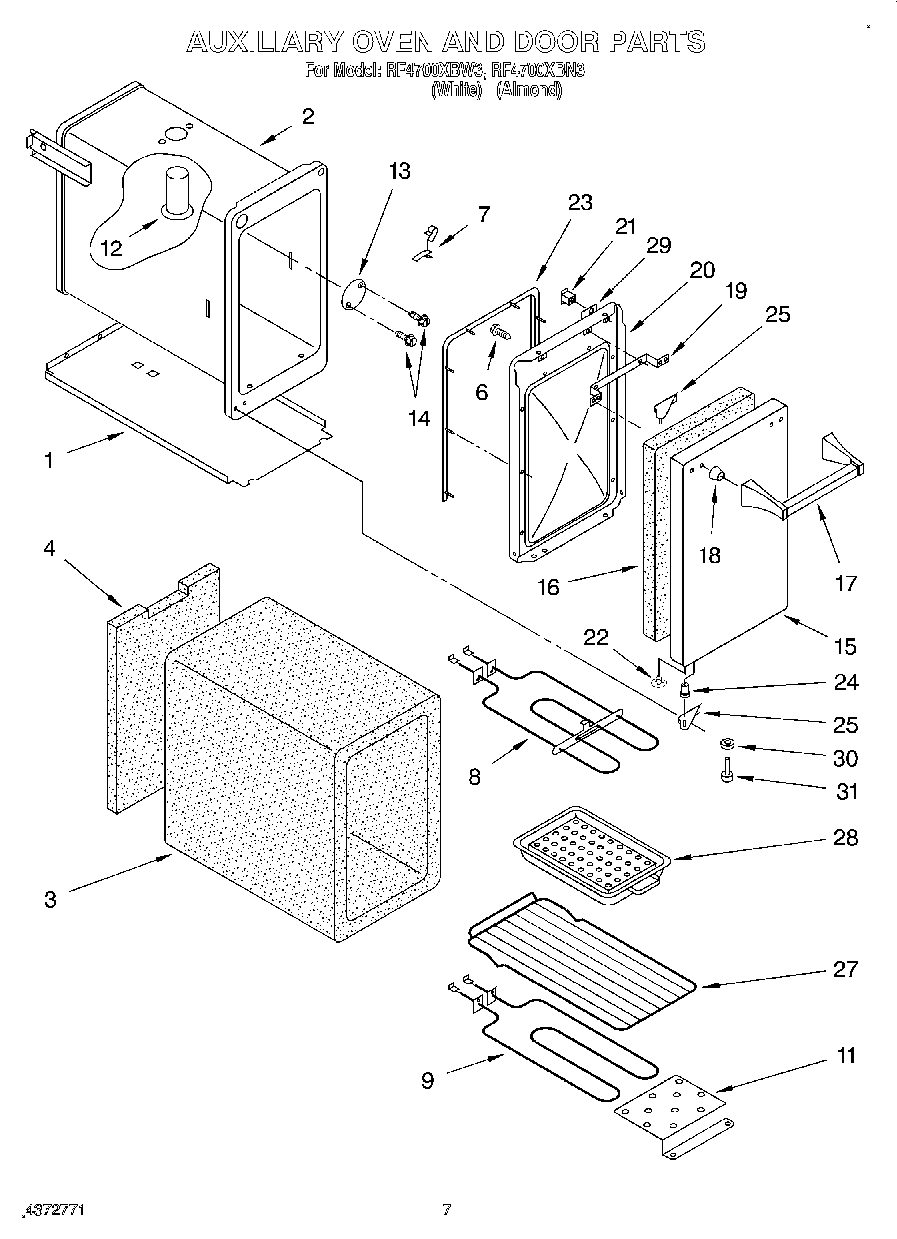

RF4700XBN3 04 – AUXILIARY OVEN AND DOOR

Products

Position	Product
1	Panel, Bottom
1	WPL 834649
2	Liner, Auxiliary Oven
2	Screw, 10-24 x 1/2 (3)
3	Insulation, Oven Wrap
4	Insulation, Oven Back
6	Screw, 10 x 3/8 (2)
7	98005642 Whirlpool Clip
8	Element, Broil
9	Element, Bake
11	Shield, Bake Unit
11	Unit Bake (Screw, 10-24 x 1/2 (2))
12	Vent Tube
13	Plate, Cover
14	Screw, 10-24 x 3/8 (2)
15	panel, oven door (auxiliary) (almond)
15	panel, oven door (auxiliary) (white)
16	Insulation, Aux. Oven Door
17	Screw
17	Handle, Door
18	Screw, 10-24 x 5/8 (2)
18	Spacer, Handle (2)
19	Spacer, Door
20	Liner, Door
20	Washer (2)
20	washer, rubber
21	Latch, Door Magnetic
22	Button, Plug
23	Gasket, Door
24	Spacer, Hinge (2) Pin
25	Hinge, Oven Door (Auxiliary) (Bottom)
25	Hinge, Oven Door (Auxiliary) (Top)
25	Hinge, Oven Door (Auxiliary) (Screw, 8-32 x 3/8 (2) (Top))
25	Screw 10-24 x 1/2
27	Rack, Oven Regular
28	Kit, Broiler Pan And Grid
29	Plate, Catch
30	Washer, Rubber
31	Rivet (2)
