RF4700XBN3 05 – CONTROL PANEL, LIT/OPTIONAL

RF4700XBN3 05 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

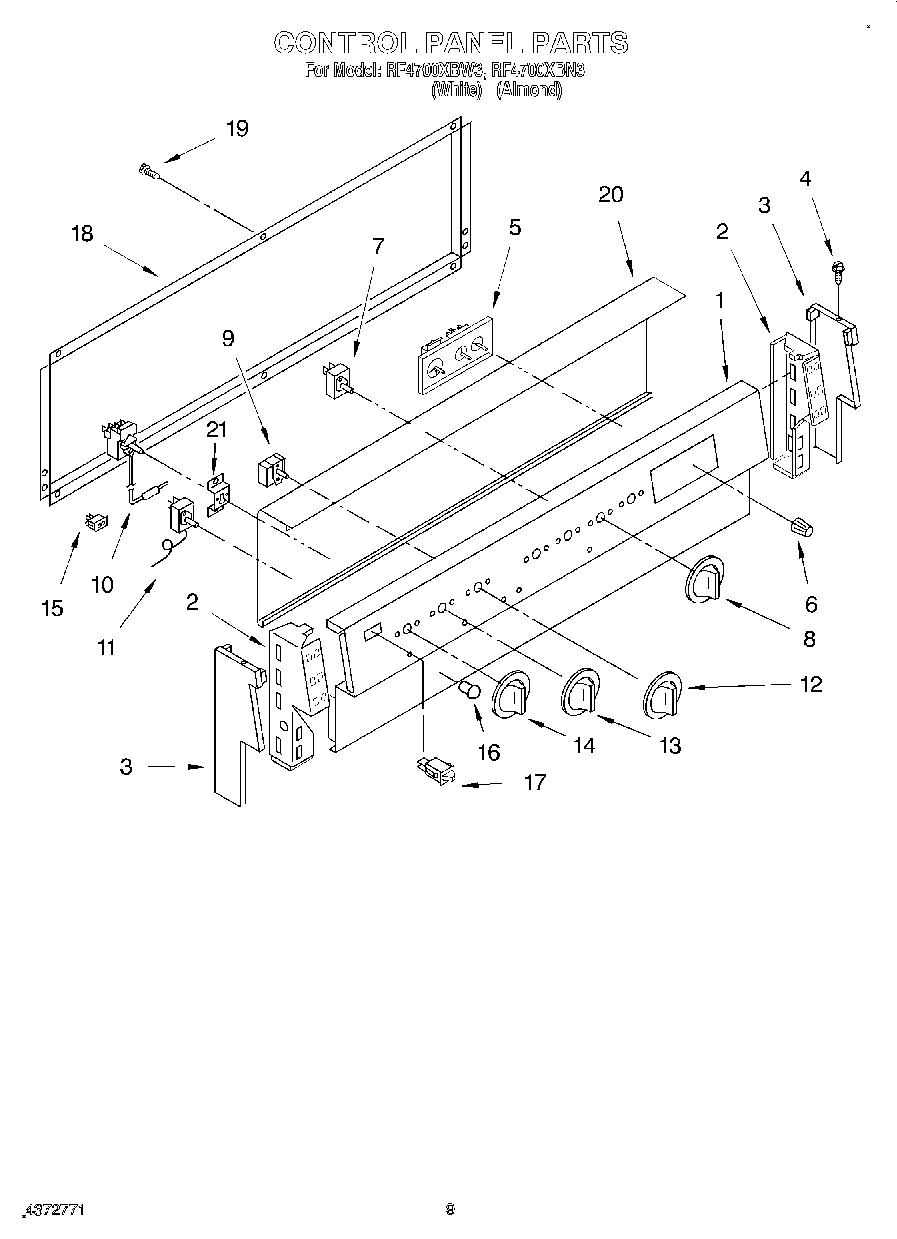

RF4700XBN3 05 – CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
WPL LIT4372280
WPL LIT4372274
WPL LIT4372281
WPL LIT3149507
1Panel, Backguard (White)
1Panel, Backguard (Almond)
2Bracket, Endcap (R.H.)
2Bracket, Endcap (L.H.)
3End Cap (L.H. White)
3End Cap (R.H. White)
3End Cap (R.H. Almond)
3End Cap (L.H. Almond)
4Screw, Endcap 8-18 x 1/2 (4)
5Clock, Timer
6Knob, Clock
7W10900107 Whirlpool Oven Surface Element Switch
7WP486579 Whirlpool Air Conditioner Screw
8Knob, Control (4)
9Switch, Selector (Main Oven)
10Thermostat, Oven (Main Oven)
11Thermostat, Oven (Auxiliary Oven)
11Screw, 8-32 x 3/16 (2)
12Knob, Selector
13Knob, Control Main Oven
14Knob, Control Auxiliary Oven
15Light, Indicator (Indicator, Oven (2))
15Light, Indicator (Indicator, Lock)
15Light, Indicator (Indicator, Surface)
16Lens, Indicator
17Switch, Rocker
18Cover, Backguard
19WP308544 Whirlpool Screw
20Trim, Backguard (White)
20Trim, Backguard (Almond)
21Golden Harvest
21Wire (14 Ga. 150 c Brown)
21WPL 4372365
21WPL 799351
21Wire, 25“ Roll (White 14 GA.)
21Wire, 25` Roll (Red 14 Ga.)
21Wire, 25` Roll (Black 14 Ga.)
21WPW10208653 Whirlpool Insulation
21WPL 799832
21350942 Whirlpool Spray Paint
21Golden Harvest (Uncut)
2172110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
21Almond (Uncut)
21WP72107 Whirlpool Touchup
21799344 Whirlpool Refrigerator Paint
2172017 Whirlpool Appliance Touch-Up Paint White
21350956 Whirlpool Spray Assembly
21285006 Whirlpool Spray
2172109 Whirlpool Dacor Avocado Touch-Up Paint
21Grease
211
21Wire (14 Ga. 200 c Brown)
2118 Ga. 80~c Rating (Red)
21Wire (12 Ga. 150 c Black)
21Wire (14 Ga. 150 c Yellow)
21Wire (14 Ga. 150 c Orange)
21Wire (14 Ga. 150 c Green)
21Wire (14 Ga. 150 c Blue)
21242831 Whirlpool Oven Wire
21Paint, Spray 13 Oz. (Avocado)
21paint, spray 13 oz. (coffee)
21Paint, Touch-Up 1/2 Oz. (Coffee)
21350930 Whirlpool White Spray Paint
