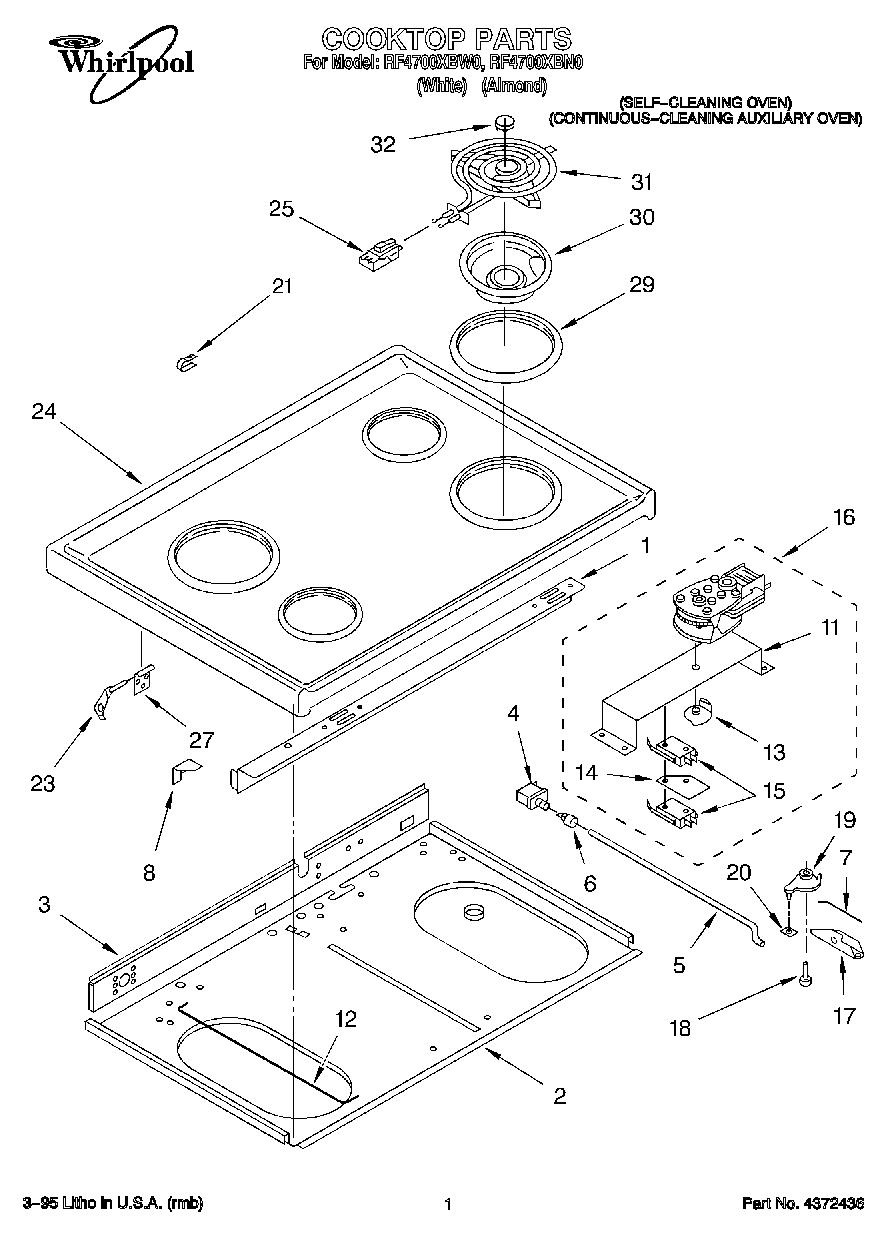

| 1 | Bracket, Cooktop |
| 2 | Panel, Sub Top |
| 3 | Shield, Wiring |
| 4 | WP8283288 Whirlpool Door Switch |
| 5 | Rod, Push |
| 6 | Cap, Push Rod |
| 7 | Bar, Tie |
| 8 | Bracket, Filler |
| 11 | Support, Latch Motor |
| 12 | Rod, Support |
| 13 | Cam, Door Latch (Pin, Spring) |
| 13 | Cam, Door Latch (Alternate) |
| 14 | Insulator, Limit Switch (3) |
| 15 | Switch, Latch (2) |
| 15 | Switch, Limit (Upper) |
| 16 | Motor, Door Latch (Complete) |
| 16 | Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2)) |
| 17 | Washer (2) |
| 17 | Screw 10-24 x 1/2 |
| 17 | Base, Latch Motor |
| 18 | Stud, Latch |
| 19 | Lever, Lock |
| 20 | Pushnut, 1/4 |
| 21 | WPL 868136 |
| 23 | Bracket, Hinge Pin ((RH)) |
| 23 | Bracket, Hinge Pin ((LH)) |
| 24 | Cooktop (Almond) |
| 24 | Cooktop |
| 25 | BURNER RECEPTACLE KIT |
| 27 | Screw, 10-24 x 1/2 (3) |
| 27 | Retainer, Hinge Pin (2) |
| 29 | Ring, Trim (8`` (2)) |
| 29 | Ring, Trim (6`` (2)) |
| 30 | Pan, Surface (6`` (2)) |
| 30 | Pan, Surface (8`` (2)) |
| 31 | WP660532 Whirlpool Oven Surface Element |
| 31 | WP660533 Whirlpool Oven 8" Surface Element |
| 32 | Medallion |
