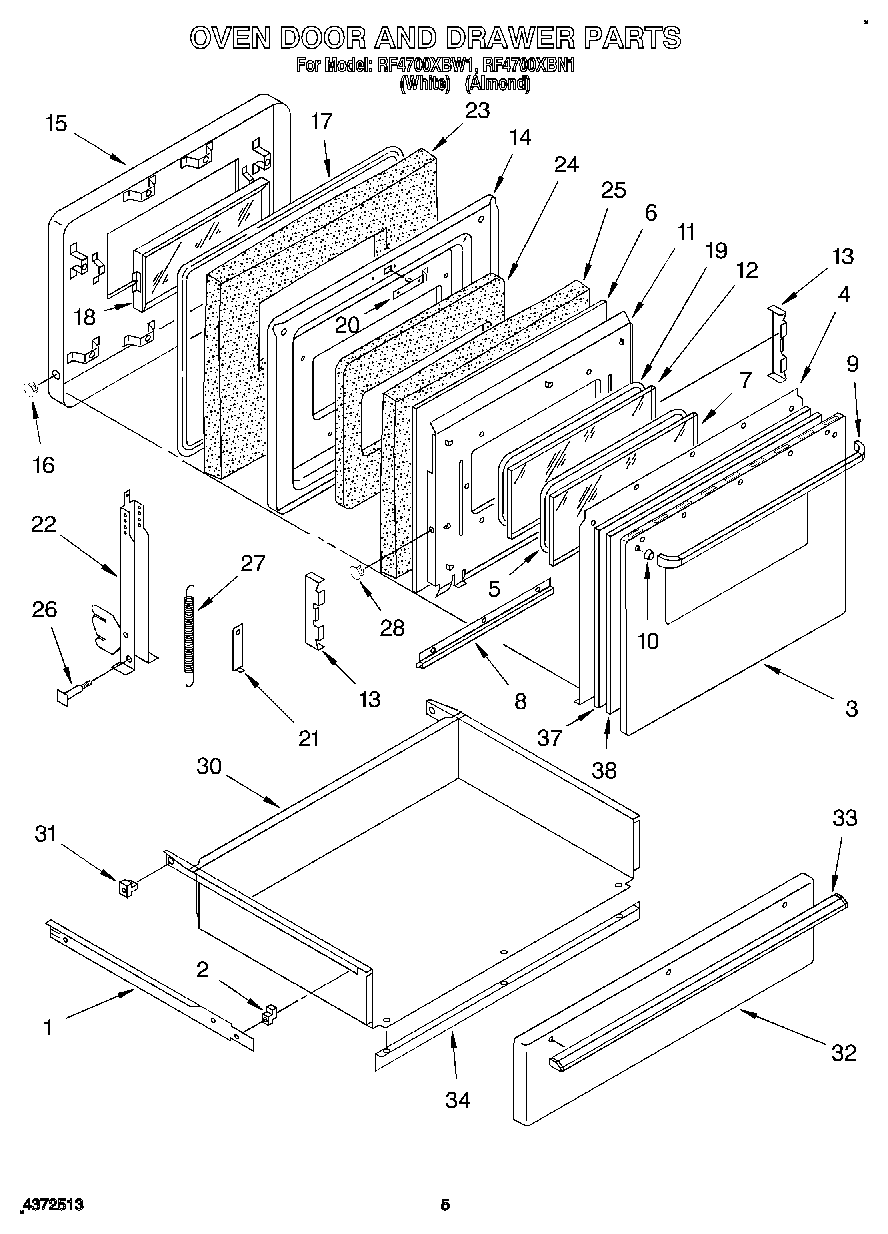

RF4700XBW1 03 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Rail, Drawer (R.H.)
1	Rail, Drawer (L.H.)
2	WPL 834649
2	Guide, Front (2)
3	panel, oven door (main) (white)
3	Panel, Oven Door (Main) (Almond)
4	Panel, Insulator
5	“J“ Molding Outer Glass
6	Foil, Aluminum
7	Glass, Outer
8	WP486579 Whirlpool Air Conditioner Screw
8	Retainer, Glass (2)
9	Handle, Oven Door
10	Screw, 10-24 x 1 1/4 (2)
10	Washer, Padded (2)
10	Spacer, Handle (2)
11	Panel, Air Wash
12	Glass, Inner
13	Retainer, Glass
14	Liner, Oven Door
15	Baffle Weldment
16	Plug Button 3/16“ (2)
17	Seal, Oven Door
18	Window Assembly
19	Seal, Window
20	Strike
20	Washer
20	Screw 10-24 x 1/2
21	Retainer, Door
22	Screw
22	Washer (2)
22	Assy, Door Hinge (L.H.)
22	Assy, Door Hinge (R.H.)
23	Insulation, Baffle
24	Insulation, Liner
25	Insulation, Airwash
26	Pin, Hinge (2)
27	Spring, Door (2)
28	Plug Button
30	Drawer
31	Guide, Drawer (Back)
32	Panel, Drawer
32	Screw, 10-24 x 1/2 (3)
32	Panel, Drawer (Almond)
33	Handle, Drawer
33	WPL 877903
34	WP965173 Whirlpool Dishwasher Screw
34	WPL 866136
37	WPL 4372061
38	WPL 4372032
