RF4700XBW3 02 – OVEN

RF4700XBW3 02 – OVEN

Written by

in

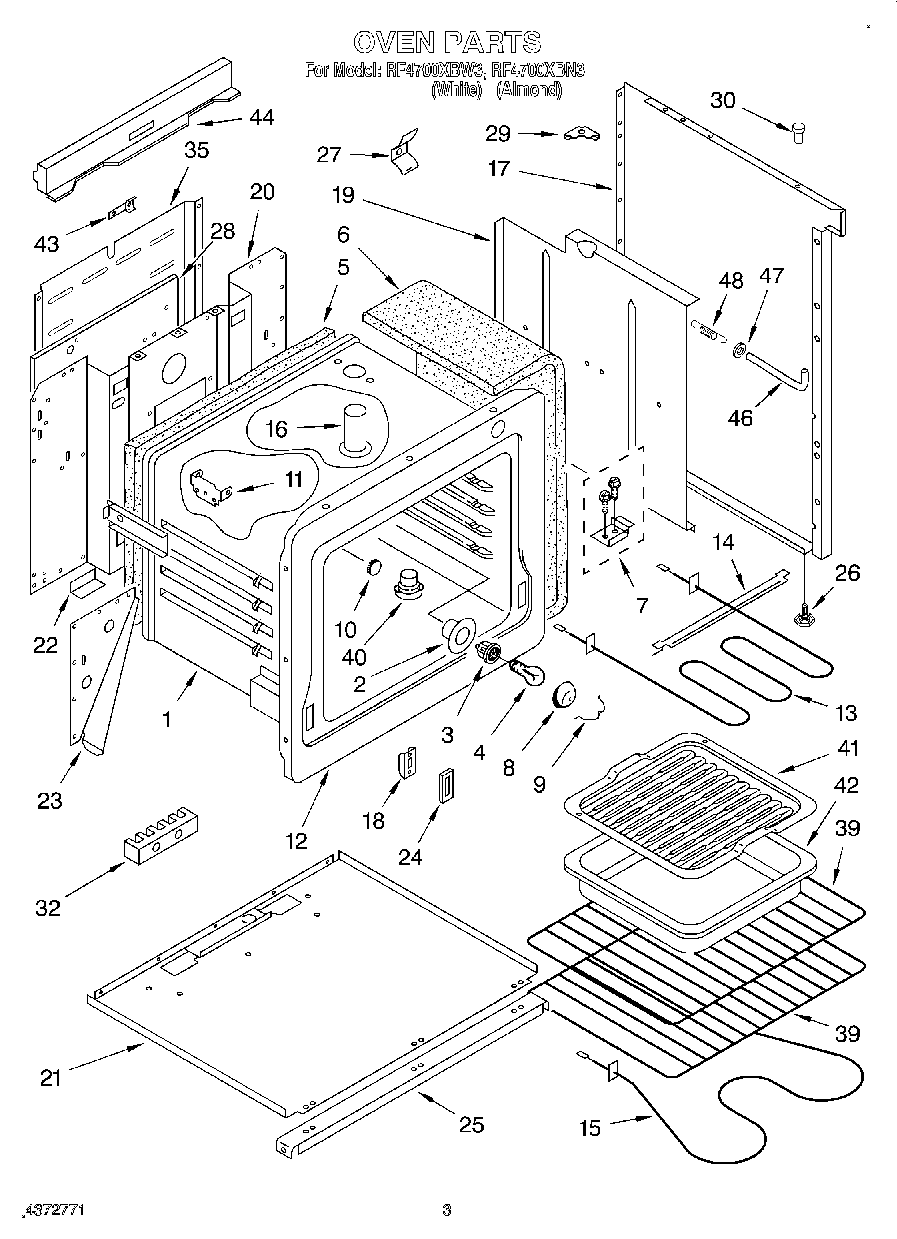

RF4700XBW3 02 – OVEN

Products

Position	Product
1	Oven Body
2	Housing, Light
4	RANGE ONLY 40W 120V APPL BULB
5	Insulation, Oven Back
6	Insulation, Oven Wrap
7	Kit, Anti-Tip
8	Lens, Light
9	W10856866 Whirlpool Light Socket
10	Plug, Button
10	Button, Plug 3/4“ (2)
11	Clip, Thermo Bulb
12	Frame, Front
13	Element, Broil
14	Support, Broiler Element
15	Element, Bake
16	Vent Tube
16	Unit Bake (Screw, 10-24 x 1/2 (2))
17	Panel, Body-Side (Almond L.H.)
17	Panel, Body-Side (Almond R.H.)
17	Panel, Body-Side (White R.H.)
17	Panel, Body-Side (White L.H.)
18	Channel, Hinge (2)
19	Retainer, Insulation
20	Back, Range
21	Panel, Bottom
22	Support, Gusset
23	Gusset, Rear (R.H.)
23	Gusset, Rear (L.H.)
24	Cover, Hinge
25	Channel, Support
26	Screw, Leveling (4)
27	Spring, Oven
28	Panel, Back
29	Gusset, Backguard (2)
30	Bumper, Cooktop (5)
32	WP8203546 Whirlpool Terminal Block
32	WPL 834649
32	Hex Nut, 10-32 (6)
35	Cover, Back
35	Screw, 10-24 x 1/2 (3)
39	WPL 4372632
40	Offset
40	Tube, Adaptor
41	Grid, Broiler Pan
42	Pan, Broiler
43	Screw,10-24 x 1/2
43	Strap, Ground
44	WPL 4372636
46	Rod, Latch
47	Bushing, Latch
48	Spring, Latch
