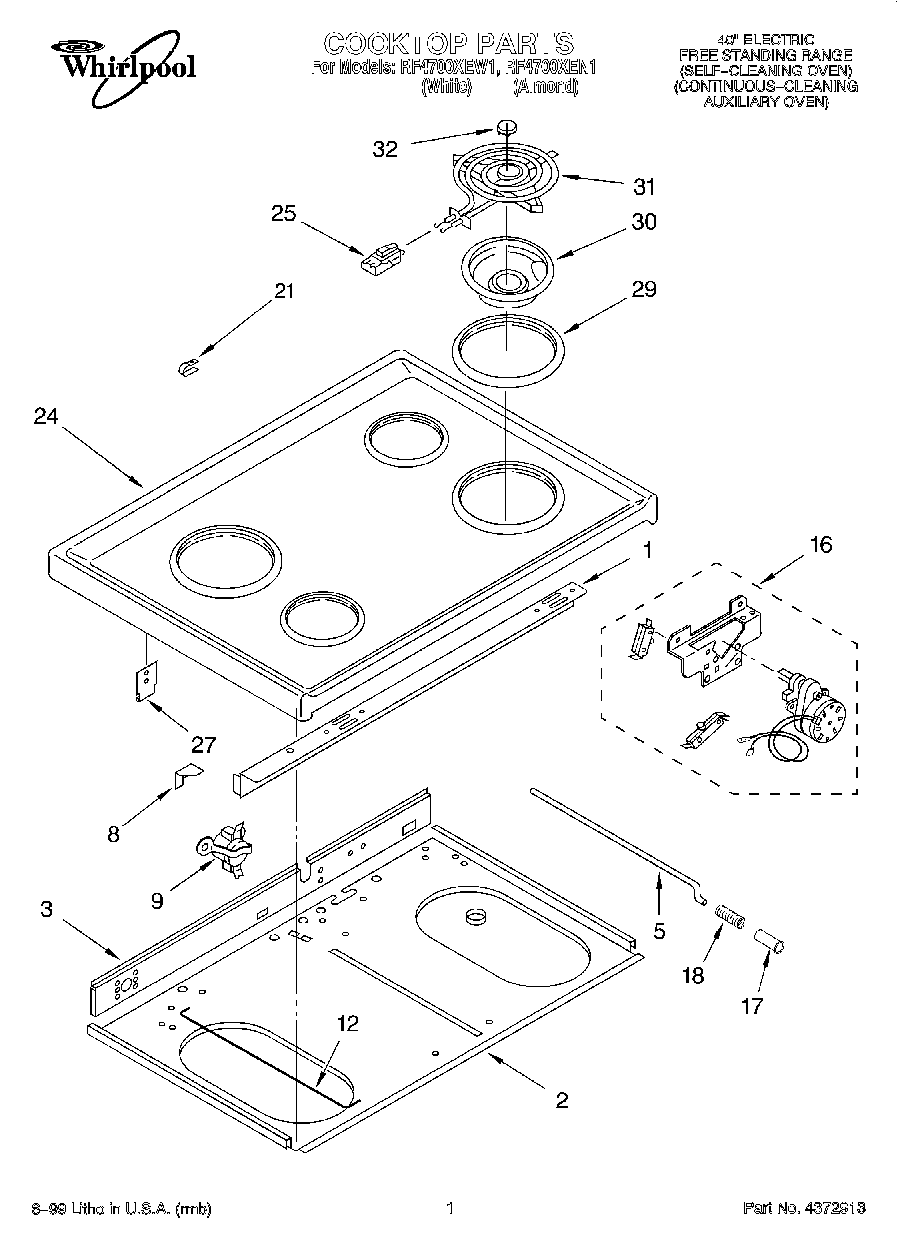

RF4700XEN1 01 – COOKTOP

Products

Position	Product
1	Bracket, Cooktop
1	Screw 10-24 x 1/2
2	Panel, Sub Top
2	Washer (2)
3	Shield, Wiring
5	Rod, Latch
8	Bracket, Filler
9	Thermostat, Safety
12	Rod, Support
16	Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2))
16	Motor, Door Latch (Complete)
17	Bushing, Latch
18	Spring, Latch
21	WPL 868136
24	Cooktop (Almond)
24	Cooktop
25	Support (4)
25	BURNER RECEPTACLE KIT
27	Bracket, Hinge Pin ((RH))
27	Bracket, Hinge Pin ((LH))
27	Screw, 10-24 x 1/2 (3)
29	Ring, Trim (8“ (2))
29	Ring, Trim (6“ (2))
30	Pan, Surface (8“ (2))
30	Pan, Surface (6“ (2))
31	WP660532 Whirlpool Oven Surface Element
31	WP660533 Whirlpool Oven 8" Surface Element
32	Medallion
