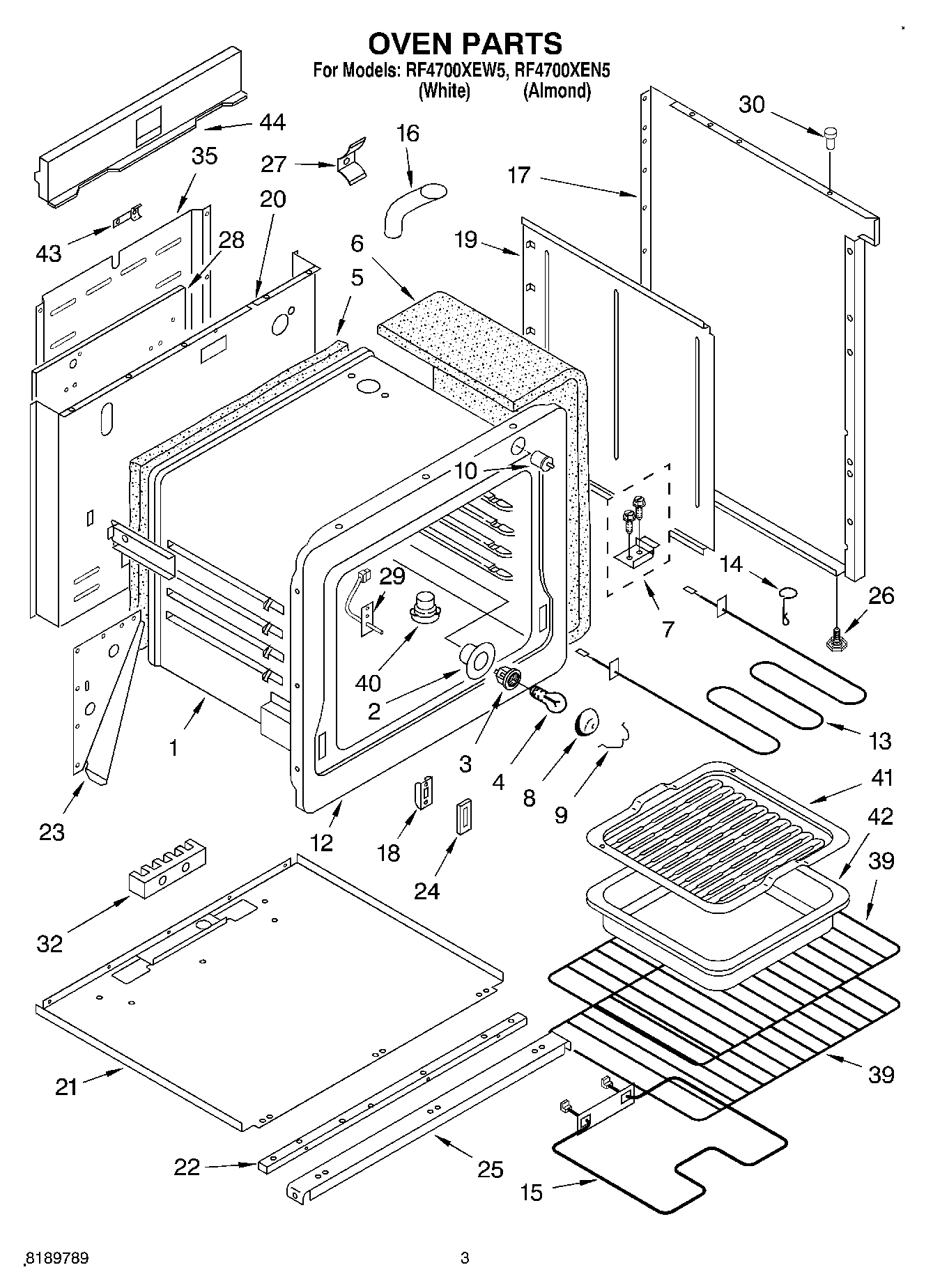

RF4700XEN5 02 – OVEN

Products

Position	Product
1	Oven Body
2	Housing, Light
3	W10856866 Whirlpool Light Socket
4	RANGE ONLY 40W 120V APPL BULB
5	Insulation, Oven Back
6	Insulation, Oven Wrap
7	Kit, Anti-Tip
8	Lens, Light
9	Retainer, Lens
10	WPL 4372841
12	Frame, Front
13	Element, Broil
14	Support, Broiler Element
15	Element, Bake
16	Vent Tube
16	Unit Bake (Screw, 10-24 x 1/2 (2))
17	Panel, Body-Side (White L.H.)
17	Panel, Body-Side (Almond R.H.)
17	Panel, Body-Side (Almond L.H.)
17	Panel, Body-Side (White R.H.)
18	Channel, Hinge (2)
19	Retainer, Insulation
20	Back, Range
21	Panel, Bottom
22	Support, Oven
23	Gusset, Rear (R.H.)
23	Gusset, Rear (L.H.)
24	Cover, Hinge
25	Channel, Support
26	Screw, Leveling (4)
27	Spring, Oven
28	Panel, Back
29	Probe, Oven Temp
30	Bumper, Cooktop (5)
32	WPL 834649
32	WP8203546 Whirlpool Terminal Block
32	Hex Nut, 10-32 (6)
35	Screw, 10-24 x 1/2 (3)
35	Cover, Back
39	WPL 4372632
40	Tube, Adaptor
40	Offset
41	Grid, Broiler Pan
42	Pan, Broiler
43	Strap, Ground
43	Screw,10-24 x 1/2
44	Deflector, Air
