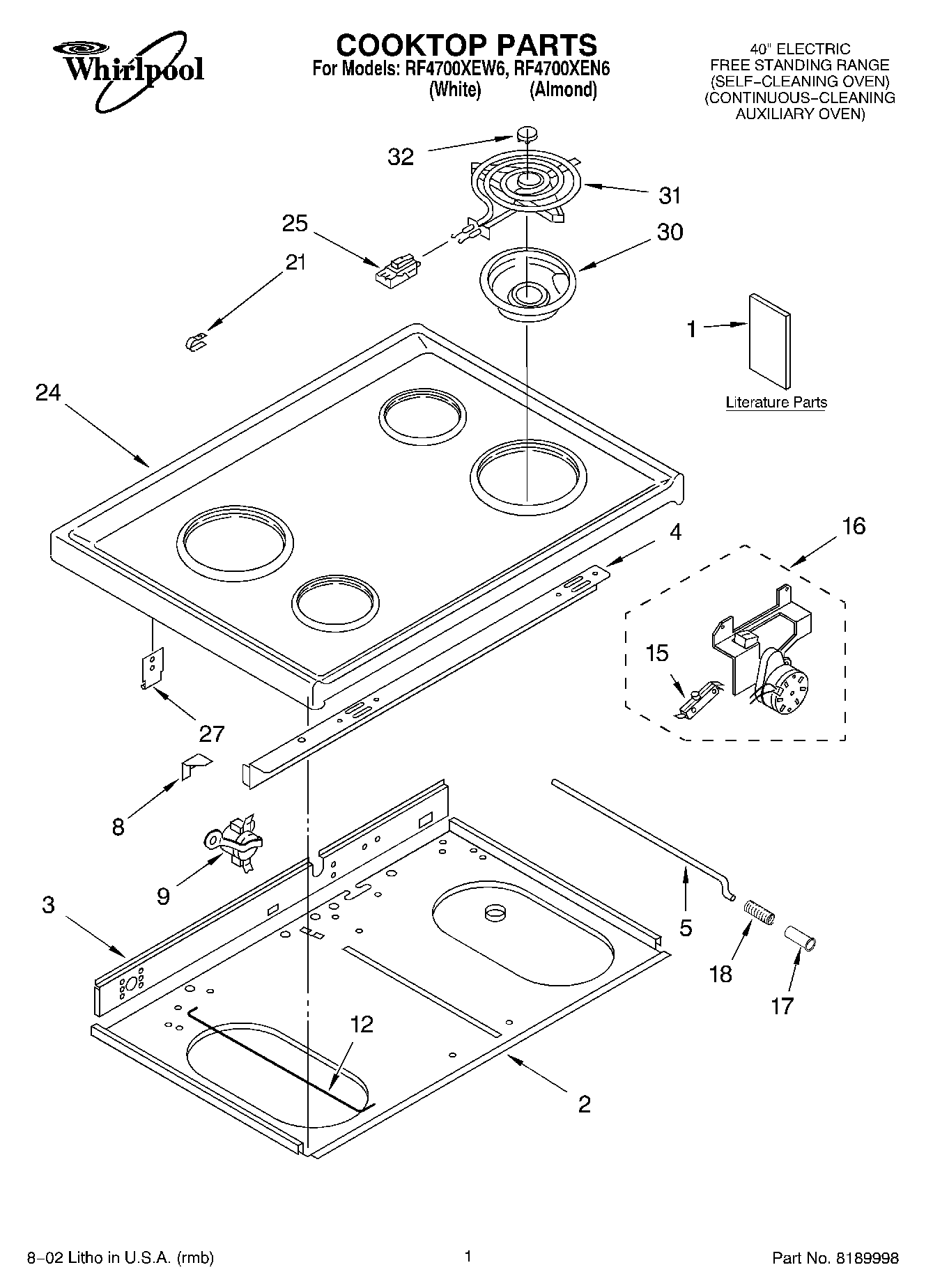

RF4700XEN6 01 – COOKTOP, LITERATURE

Products

Position	Product
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Instructions, Installation)
2	Panel, Sub Top
2	Washer (2)
3	Shield, Wiring
4	Bracket, Cooktop
4	Screw 10-24 x 1/2
5	Rod, Latch
8	Bracket, Filler
9	Thermostat, Safety
12	Rod, Support
15	Switch, Latch
16	Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2))
16	Motor, Latch (Complete)
17	Bushing, Latch
18	Spring, Latch
21	WPL 868136
24	Cooktop (Almond)
24	Cooktop
25	BURNER RECEPTACLE KIT
25	Support (4)
27	Bracket, Hinge Pin ((RH))
27	Bracket, Hinge Pin ((LH))
27	Screw, 10-24 x 1/2 (3)
30	DRIP BOWL 8" W/HOLE CHROME
30	WPW10196406 Whirlpool 6" Chrome Drip Bowl
31	WP660532 Whirlpool Oven Surface Element
31	WP660533 Whirlpool Oven 8" Surface Element
32	Medallion
