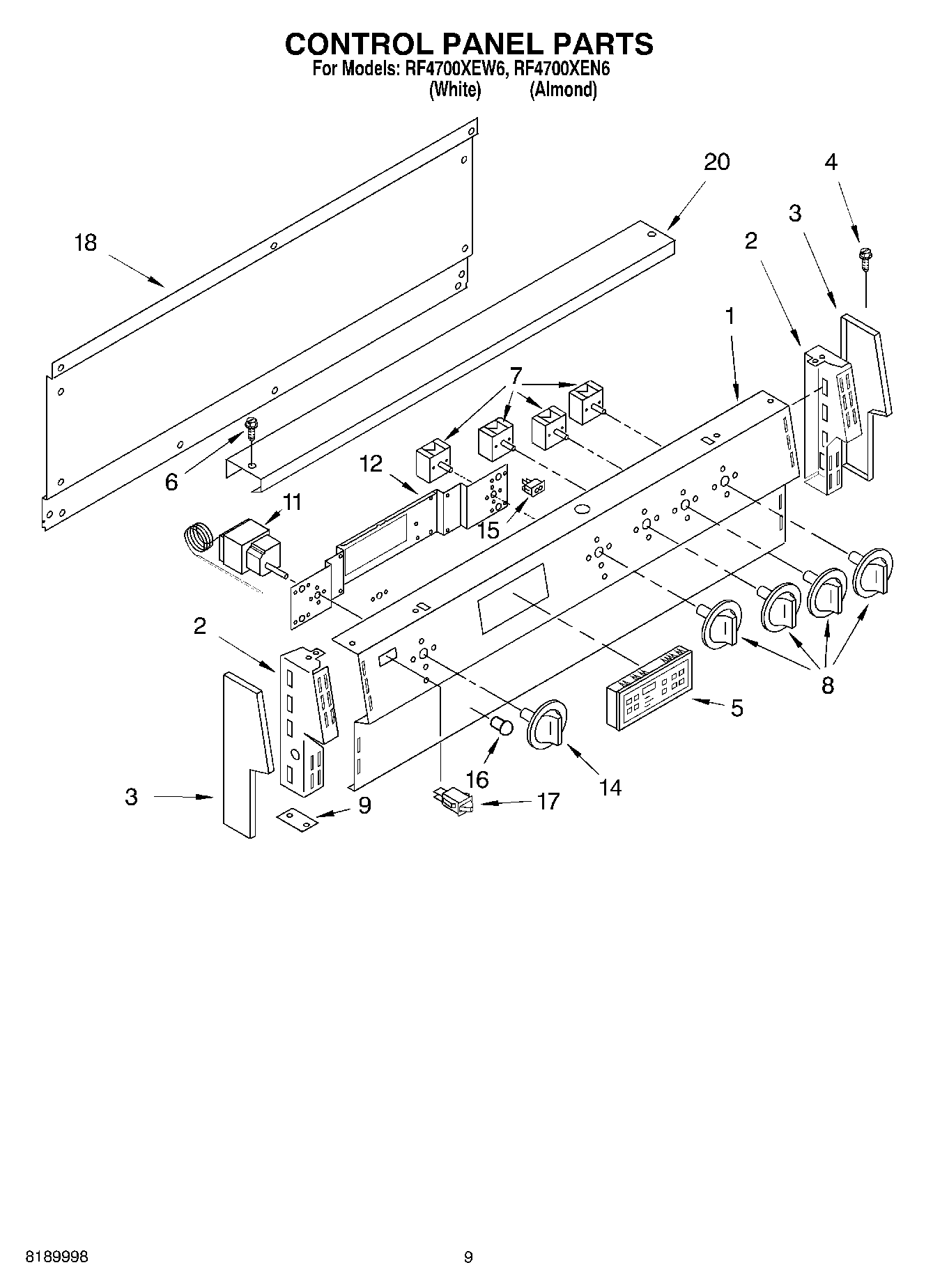

RF4700XEN6 05 – CONTROL PANEL

Products

Position	Product
1	Panel, Backguard (White)
1	Panel, Backguard (Almond)
2	Bracket, Endcap (L.H.)
2	Bracket, Endcap (R.H.)
3	End Cap (R.H. Almond)
3	End Cap (L.H. Almond)
3	End Cap (L.H. White)
3	End Cap (R.H. White)
4	Screw, Endcap 8-18 x 1/2 (4)
5	Overlay, Clock
5	Clock, Timer
6	Screw
7	WP486579 Whirlpool Air Conditioner Screw
7	Switch, Infin. (4)
8	Knob, Control (4)
9	Spacer, End Cap Mtg
11	Thermostat, Oven (Auxiliary Oven)
11	Screw, 8-32 x 3/16 (2)
12	Screw
12	Bracket, Clock Mtg
14	Screw Auxiliary Oven
14	Knob, Control Auxiliary Oven
15	Light, Indicator (Indicator, Oven (2))
16	Lens, Indicator
17	Switch, Rocker
18	Cover, Backguard
20	Golden Harvest
20	Wire (14 Ga. 150 c Blue)
20	Trim, Backguard
20	WPL 4372869
20	Grease
20	1
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25` Roll (Black 14 Ga.)
20	WPW10208653 Whirlpool Insulation
20	WPL 799832
20	350942 Whirlpool Spray Paint
20	Golden Harvest (Uncut)
20	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
20	Almond (Uncut)
20	WP72107 Whirlpool Touchup
20	799344 Whirlpool Refrigerator Paint
20	72017 Whirlpool Appliance Touch-Up Paint White
20	350956 Whirlpool Spray Assembly
20	Wire, 25“ Roll (White 14 GA.)
20	285006 Whirlpool Spray
20	Wire (14 Ga. 200 c Brown)
20	18 Ga. 80~c Rating (Red)
20	Wire (12 Ga. 150 c Black)
20	Wire (14 Ga. 150 c Yellow)
20	Wire (14 Ga. 150 c Orange)
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Brown)
20	242831 Whirlpool Oven Wire
20	Paint, Spray 13 Oz. (Avocado)
20	paint, spray 13 oz. (coffee)
20	Paint, Touch-Up 1/2 Oz. (Coffee)
20	72109 Whirlpool Dacor Avocado Touch-Up Paint
20	350930 Whirlpool White Spray Paint
