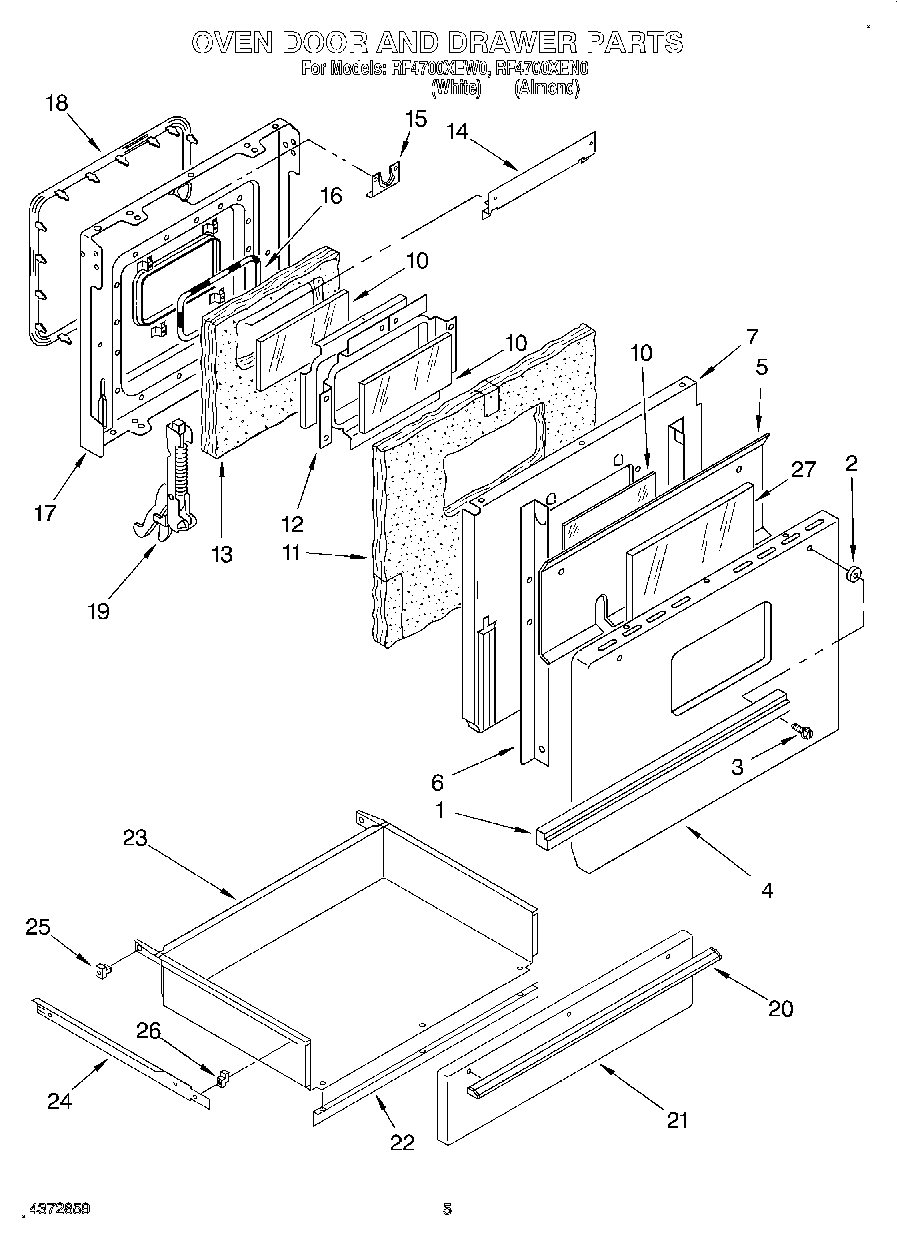

RF4700XEW0 03 – OVEN DOOR & DRAWER

Products

Position	Product
1	Handle, Oven Door
2	Spacer, Handle (2)
3	Screw, Handle (2)
4	Panel, Door (Almond)
4	Panel, Door
5	Deflector, Heat
6	Bracket, Door (L.H.)
6	Bracket, Door (R.H.)
7	Baffle, Door
10	Glass, Door (3)
11	Insulation, Door
12	Frame, Glass
13	Insulation, Window
14	Retainer, Glass
15	Latch, Door
16	Gasket, Window
17	Screw
17	Liner, Door
18	Gasket, Door
19	Hinge Assembly (2)
20	Handle, Drawer
21	Panel, Drawer
21	Panel, Drawer (Almond)
22	Cover, Toespace
23	Drawer
24	Rail, Drawer (L.H.)
24	Rail, Drawer (R.H.)
25	Guide, Drawer (Back)
26	Guide, Front (2)
27	Glass, Door
