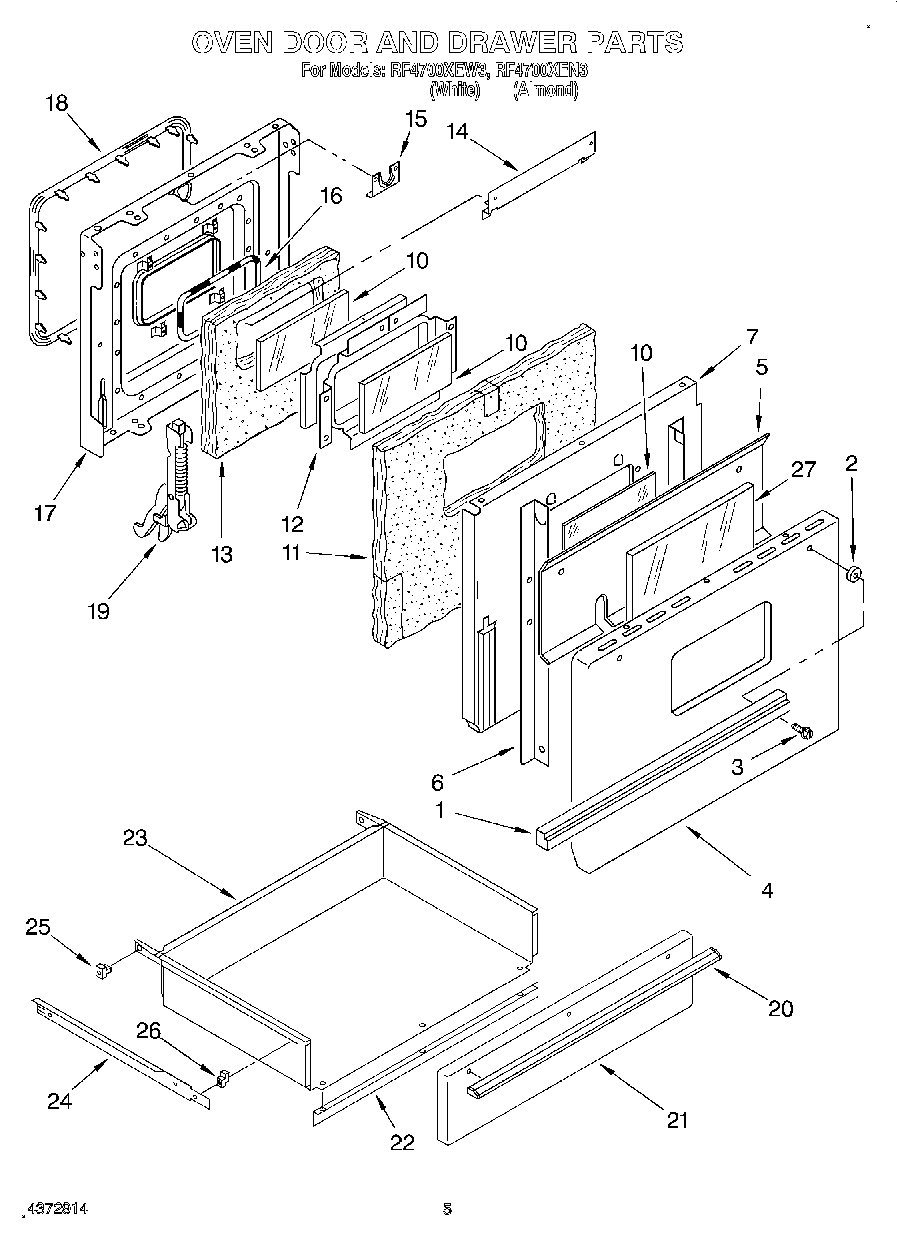

RF4700XEW3 03 – OVEN DOOR AND DRAWER

Products

PositionProduct
1Handle, Oven Door
2Spacer, Handle (2)
3Screw, Handle (2)
4Panel, Door (Almond)
4Panel, Door
5Deflector, Heat
6Bracket, Door (L.H.)
6Bracket, Door (R.H.)
7Baffle, Door
10Glass, Door (3)
11Insulation, Door
12Frame, Glass
13Insulation, Window
14Retainer, Glass
15Latch, Door
16Gasket, Window
17Liner, Door
17Screw
18Gasket, Door
19Hinge Assembly (2)
20Handle, Drawer
21Panel, Drawer
21Panel, Drawer (Almond)
22Cover, Toespace
23Drawer
24Rail, Drawer (L.H.)
24Rail, Drawer (R.H.)
25Guide, Drawer (Back)
26Guide, Front (2)
27Glass, Door
